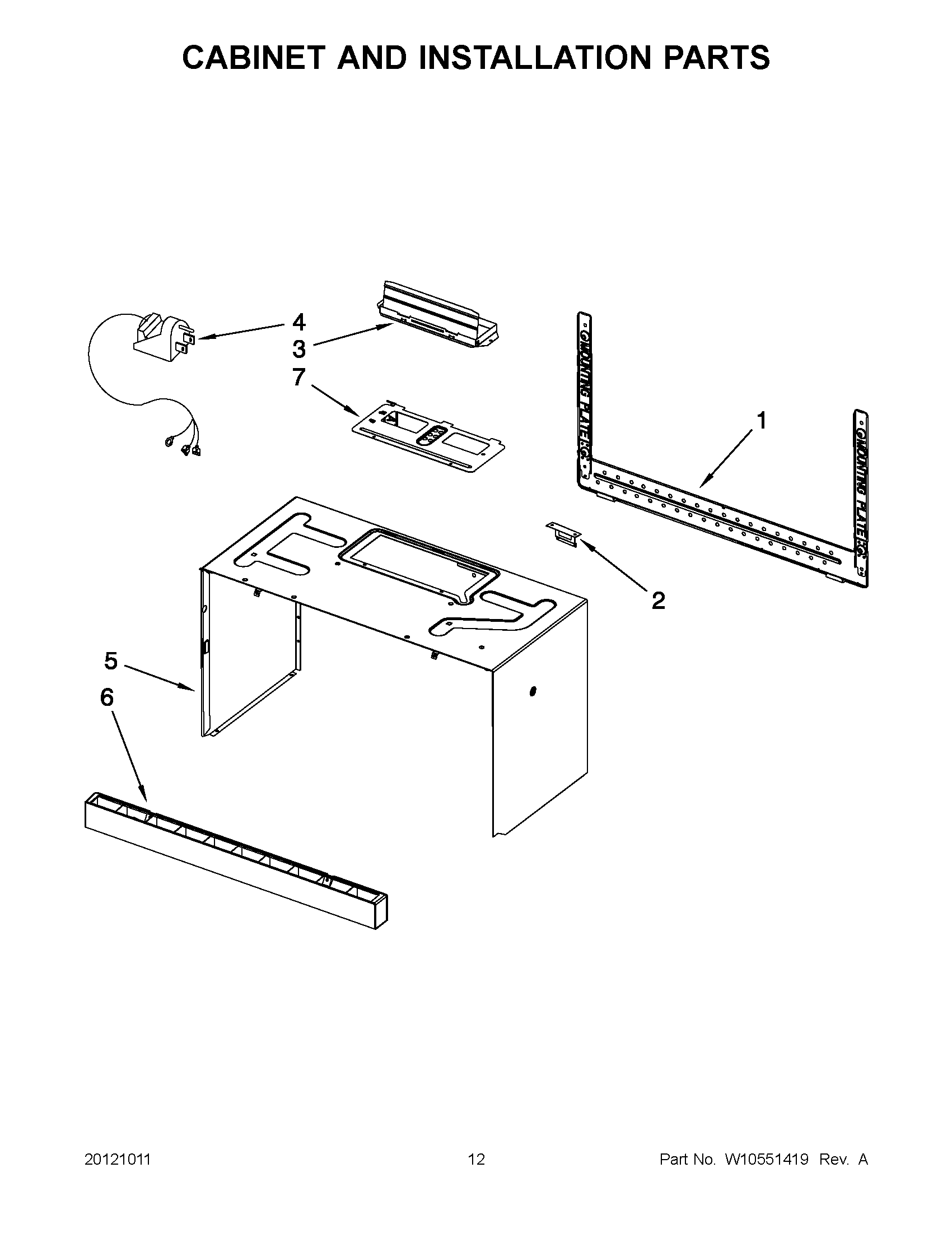

GMH3204XVS3 06 – CABINET AND INSTALLATION PARTS

GMH3204XVS3 06 – CABINET AND INSTALLATION PARTS

Written by

in

GMH3204XVS3 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIWP8169704 Whirlpool Screw
NIHdlmp/TT Wire Assy
NIGrnd Wire, Filter
NI8205948 Whirlpool Microwave Mount
NIW10539840 Whirlpool Microwave Wire Harness
NIW10190018 Whirlpool Microwave Template
NIMISCELLANEOUS, HARNESS, MAIN
1W11025649 Whirlpool Microwave Mounting Plate
28206385 Whirlpool Microwave Wire Clip
3W10843943 Whirlpool Microwave Vent Damper
4W10708076 Whirlpool Microwave Power Cord
5WPW10244765 Whirlpool Microwave Cabinet Wrapper
5WPW10462001 Whirlpool Microwave Cab Wrapper
6W10245216 Whirlpool Microwave Vent Grille
6W10245218 Whirlpool Microwave Vent Grille
6W10245217 Whirlpool Microwave Vent Grill
7COVER, HOOD FAN MOTOR
