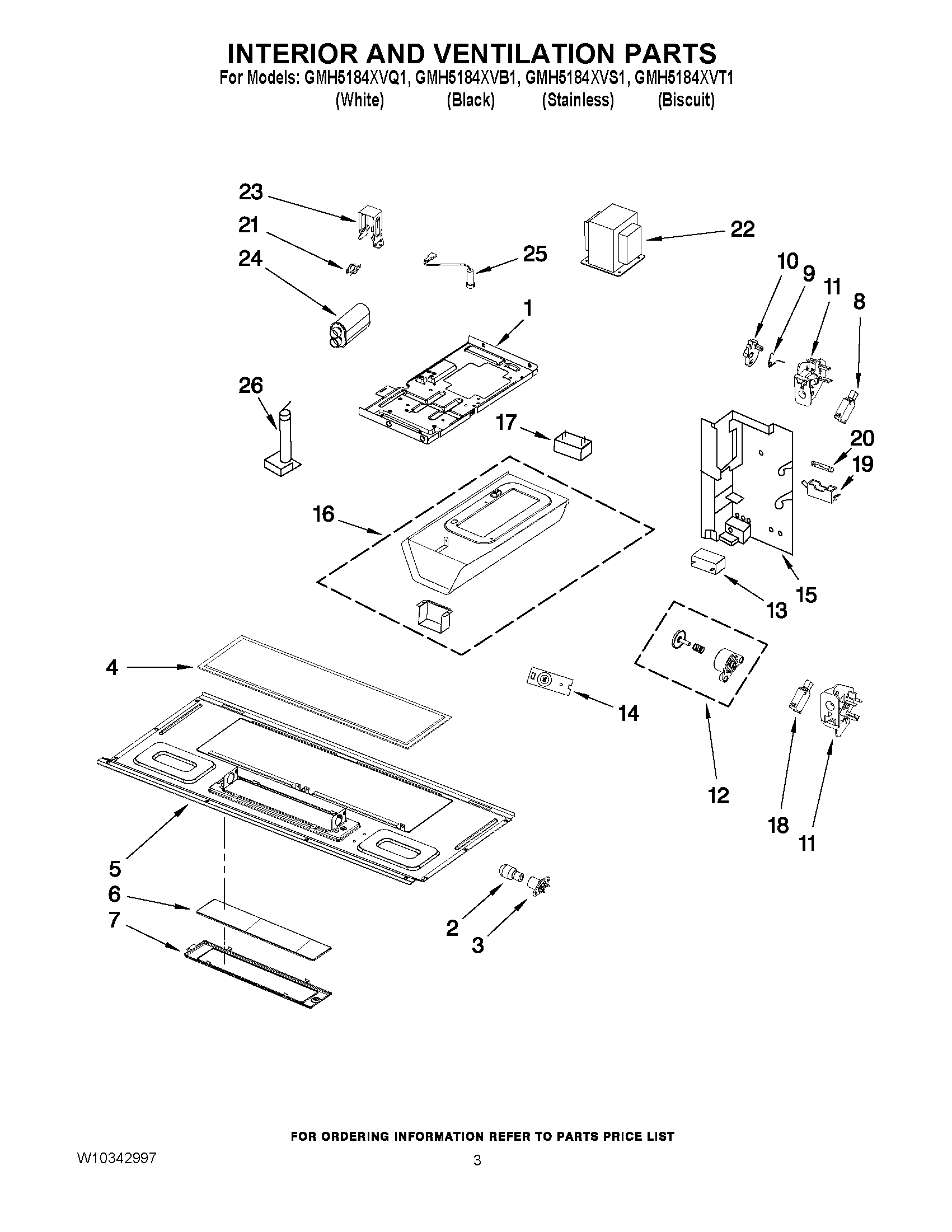

GMH5184XVS1 03 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	Chassis
2	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3	W10210871 Whirlpool Microwave Lamp Housing
4	W10208631A Whirlpool Microwave Grease Filter
5	W10245196 Whirlpool Microwave Base
6	WPW10210875 Whirlpool Microwave Lamp Glass Cover
7	HOLDER, GLASS
8	W10211974 Whirlpool Microwave Door Interlock Micro Switch
9	W10156812 Whirlpool Spring
10	W10562613 Whirlpool Microwave Interlock Cam Assembly
11	WP8206419 Whirlpool Microwave Top Interlock Support
11	WPW10156813 Whirlpool Microwave Bottom Interlock Support
12	W10197758 Whirlpool Microwave Piston
13	W11405831 Whirlpool Microwave Capacitor
14	W10163422 Whirlpool Microwave Thermistor
15	Plate, Side
16	W10310720 Whirlpool Microwave Base
17	W10245190 Whirlpool Microwave Resistor
18	W10269458 Whirlpool Microwave Door Switch
18	W10211972 Whirlpool Microwave Switch
19	W10245194 Whirlpool Microwave Fuse Block
20	FUSE-THRML
21	W10864742 Whirlpool Microwave Thermostat Fix
22	TRANSFORMER, HIGH VOLTAGE
23	W10532063 Whirlpool Microwave Bracket
24	CAPACTR-MG
25	W11256462 Whirlpool Microwave Diode
26	W10245188 Whirlpool Microwave Support Bracket
