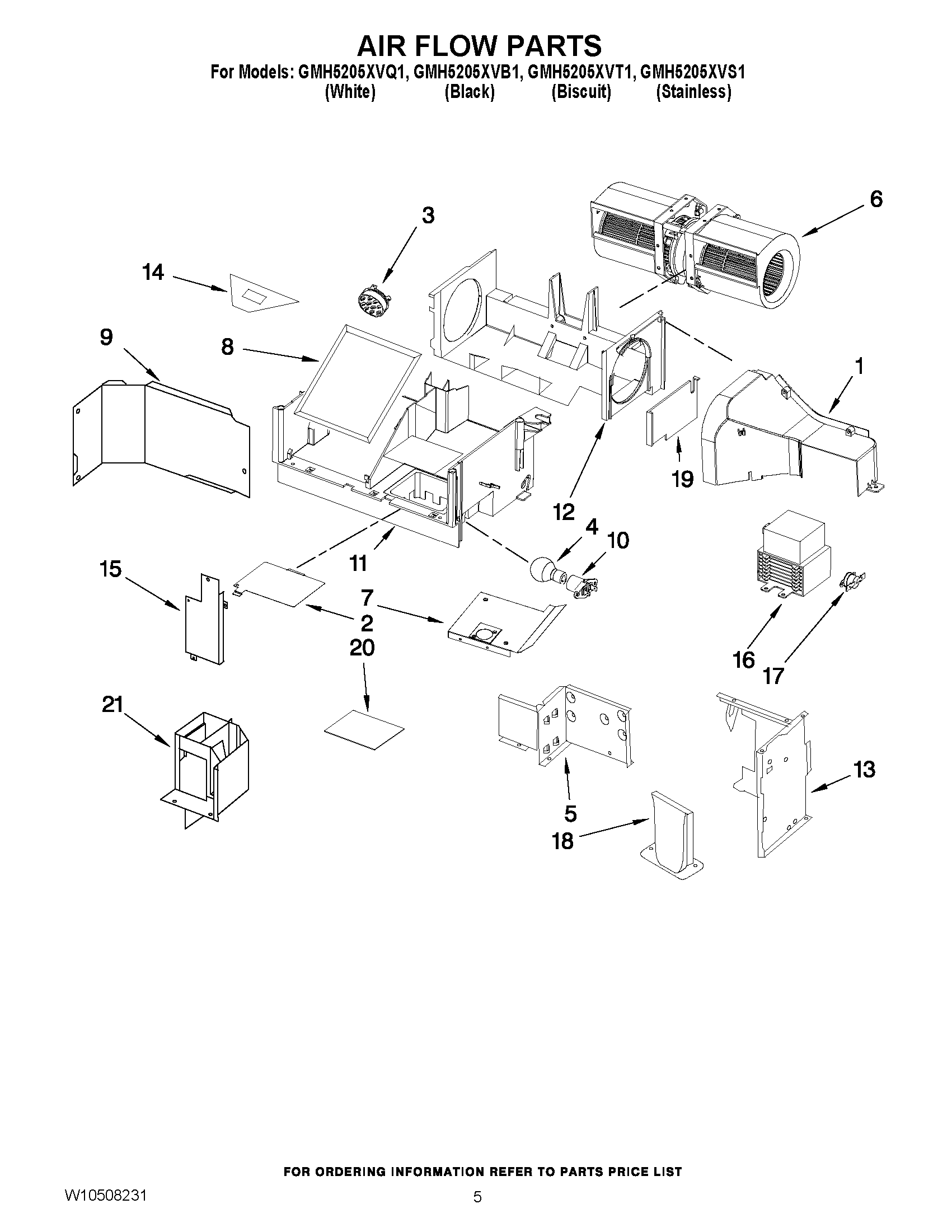

GMH5205XVB1 04 – AIR FLOW PARTSadmin2025-04-26T11:36:57+00:00GMH5205XVB1 04 – AIR FLOW PARTS
Products
| Position | Product |
|---|
| 1 | DIFFUSER, AIR DEFLECTION WITH SPONGE |
| 2 | 8206382 Whirlpool Microwave Light Cover |
| 3 | W10245178 Whirlpool Microwave Sensor |
| 4 | 8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb |
| 5 | COVER, SIDE INLET |
| 6 | MOTOR, FAN ASSY |
| 7 | Support, Sensor |
| 8 | 8206230A Whirlpool Microwave Charcoal Filter |
| 9 | Air Guide,Plate |
| 10 | WPW10210878 Whirlpool Microwave LMP Housing |
| 11 | W10387590 Whirlpool Microwave Air Duct |
| 12 | W10640885 Whirlpool Microwave Mounting Bracket |
| 13 | AIRGUIDE, LOW |
| 14 | SOCKET, MOTOR WIRE |
| 15 | PLATE, SEALING AIR GUIDE |
| 16 | 8206079 Whirlpool Microwave Magnetron |
| 17 | W10479655 Whirlpool Microwave Thermostat Fix |
| 18 | PLATE, WATER PROOF |
| 19 | W10245182 Whirlpool Microwave Duct Cover |
| 20 | Cavity Lamp Foil |
| 21 | Cover, Inlet Air Cavity Guide |
