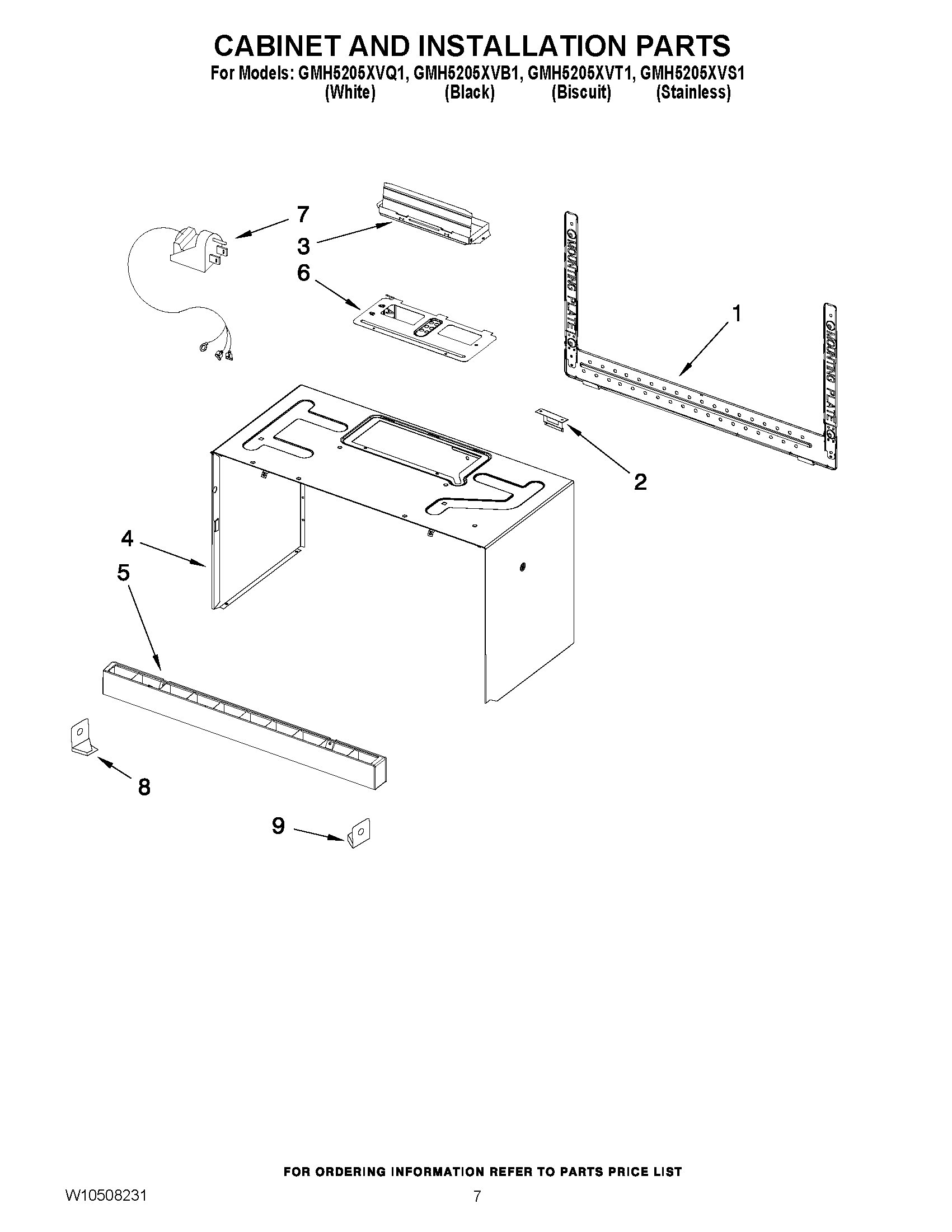

GMH5205XVB1 06 – CABINET AND INSTALLATION PARTS

GMH5205XVB1 06 – CABINET AND INSTALLATION PARTS

Written by

in

GMH5205XVB1 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIWP8169704 Whirlpool Screw
NIMISCELLANEOUS, MAIN HARNESS
NI8205948 Whirlpool Microwave Mount
NIMISCELLANEOUS, INVERTER CABLE P23 TO CN7201 INVERTER
NIMISCELLANEOUS, WIRE, HIGH VOLTAGE
NIW10539840 Whirlpool Microwave Wire Harness
NIW10190018 Whirlpool Microwave Template
NIHdlmp/TT Wire Assy
1W11025649 Whirlpool Microwave Mounting Plate
28206385 Whirlpool Microwave Wire Clip
3W10843943 Whirlpool Microwave Vent Damper
4Case, Outer (Biscuit)
4WPW10245176 Whirlpool Microwave Cabinet Wrapper
4WPW10244765 Whirlpool Microwave Cabinet Wrapper
5W10286318 Whirlpool Microwave Vent Grill
5W10286322 Whirlpool Microwave Vent Grill
5GRILLE, VENT (BLACK)
5GRILLE, VENT (BISCUIT)
6COVER, HOOD FAN MOTOR
7W10708076 Whirlpool Microwave Power Cord
8W11026306 Whirlpool Microwave Mounting Bracket
9W10703282 Whirlpool Microwave Mounting Bracket
