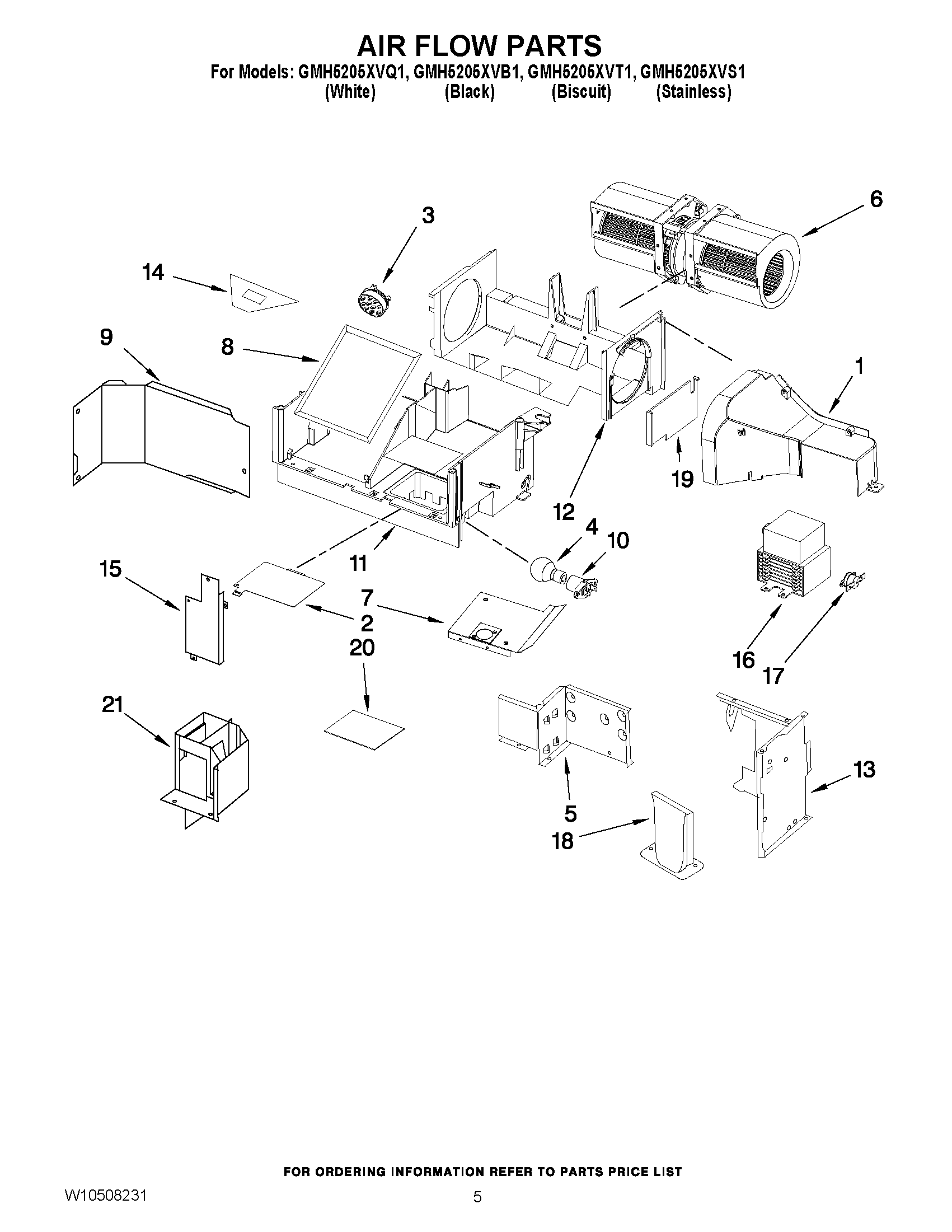

GMH5205XVQ1 04 – AIR FLOW PARTS

Products

Position	Product
1	DIFFUSER, AIR DEFLECTION WITH SPONGE
2	8206382 Whirlpool Microwave Light Cover
3	W10245178 Whirlpool Microwave Sensor
4	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
5	COVER, SIDE INLET
6	MOTOR, FAN ASSY
7	Support, Sensor
8	8206230A Whirlpool Microwave Charcoal Filter
9	Air Guide,Plate
10	WPW10210878 Whirlpool Microwave LMP Housing
11	W10387590 Whirlpool Microwave Air Duct
12	W10640885 Whirlpool Microwave Mounting Bracket
13	AIRGUIDE, LOW
14	SOCKET, MOTOR WIRE
15	PLATE, SEALING AIR GUIDE
16	8206079 Whirlpool Microwave Magnetron
17	W10479655 Whirlpool Microwave Thermostat Fix
18	PLATE, WATER PROOF
19	W10245182 Whirlpool Microwave Duct Cover
20	Cavity Lamp Foil
21	Cover, Inlet Air Cavity Guide
