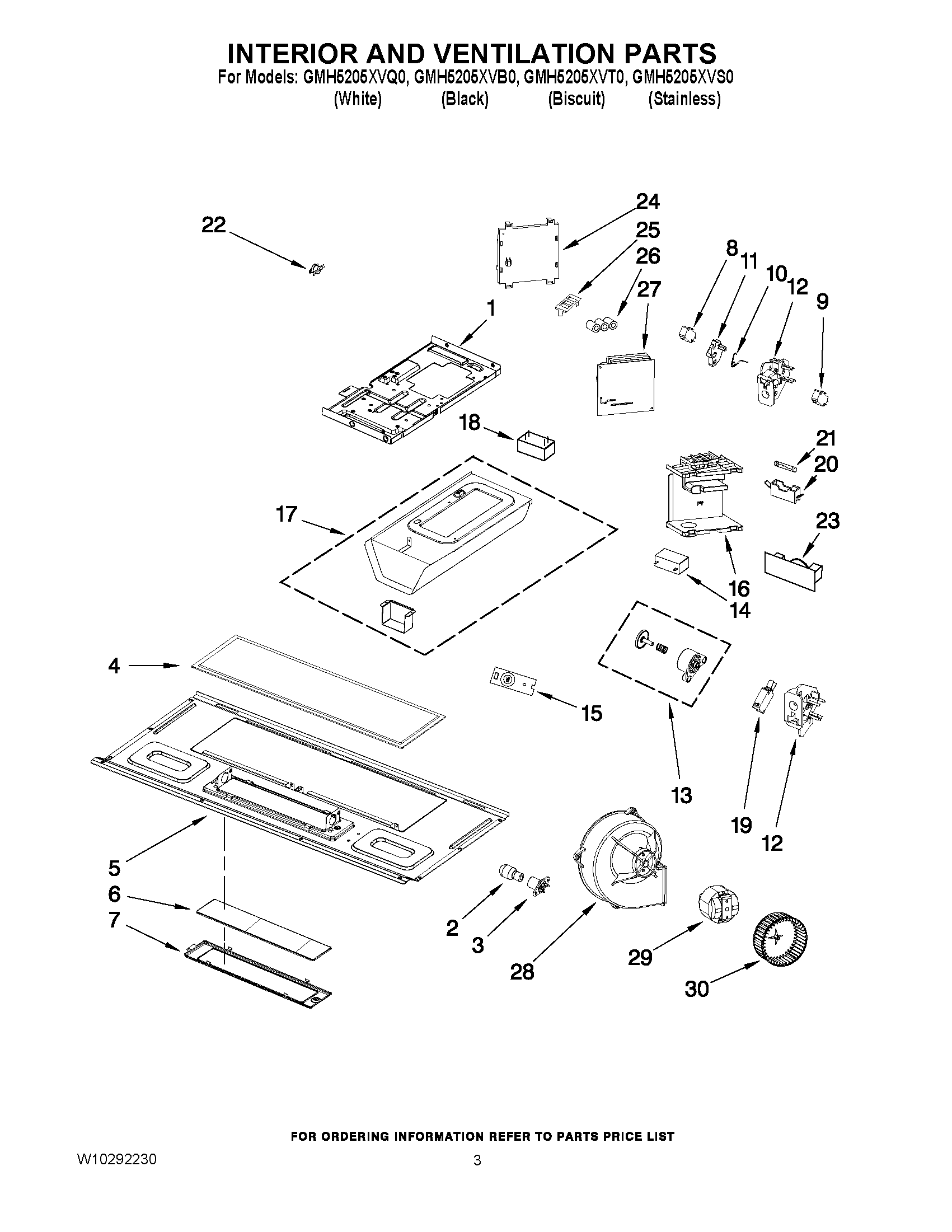

GMH5205XVS0 03 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	CHASSIS
2	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3	W10210871 Whirlpool Microwave Lamp Housing
4	W10208631A Whirlpool Microwave Grease Filter
5	W10245196 Whirlpool Microwave Base
6	WPW10210875 Whirlpool Microwave Lamp Glass Cover
7	HOLDER, GLASS
8	W10211972 Whirlpool Microwave Switch
9	W10269458 Whirlpool Microwave Door Switch
10	W10156812 Whirlpool Spring
11	W10562613 Whirlpool Microwave Interlock Cam Assembly
12	WPW10156813 Whirlpool Microwave Bottom Interlock Support
12	WP8206419 Whirlpool Microwave Top Interlock Support
13	W10197758 Whirlpool Microwave Piston
14	W11405831 Whirlpool Microwave Capacitor
15	W10163422 Whirlpool Microwave Thermistor
16	COVER, INVERTER
17	PLATE, CHASSIS
18	W10245190 Whirlpool Microwave Resistor
19	W10211974 Whirlpool Microwave Door Interlock Micro Switch
20	W10245194 Whirlpool Microwave Fuse Block
21	FUSE-THRML
22	W10864742 Whirlpool Microwave Thermostat Fix
23	FILTER, MAIN
24	HOLDER, INVERTER
25	SUPPORT, FERRITE
26	Ferrite Ring
27	W10217711 Whirlpool Microwave Inverter
28	Housing, Fan
29	MOTOR, FAN
30	W10286243 Whirlpool Microwave Fan Wheel
