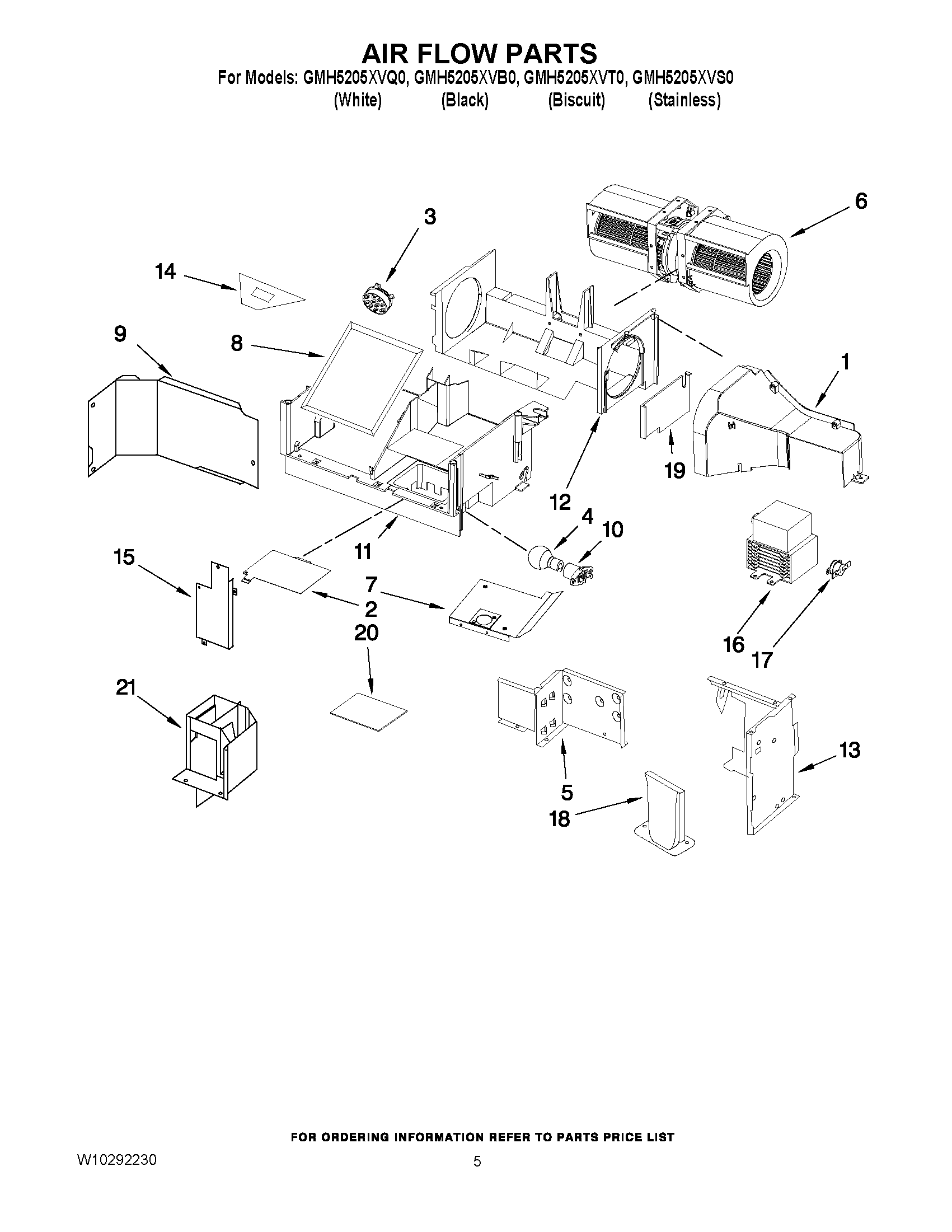

GMH5205XVS0 04 – AIR FLOW PARTS

Products

Position	Product
1	Deflector, Air
2	8206382 Whirlpool Microwave Light Cover
3	W10245178 Whirlpool Microwave Sensor
4	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
5	COVER, SIDE INLET
6	Motor, Fan Assy
7	Support, Sensor
8	8206230A Whirlpool Microwave Charcoal Filter
9	Air Guide,Plate
10	WPW10210878 Whirlpool Microwave LMP Housing
11	Base Plate, Air Guide
12	W10640885 Whirlpool Microwave Mounting Bracket
13	AIRGUIDE, LOW
14	SOCKET, MOTOR WIRE
15	Cover, Inlet Air Cavity Guide
16	8206079 Whirlpool Microwave Magnetron
17	W10598693 Whirlpool Microwave Thermostat Fix
18	PLATE, WATER PROOF
19	W10245182 Whirlpool Microwave Duct Cover
20	Cavity Lamp Foil
21	Sealing Plate
