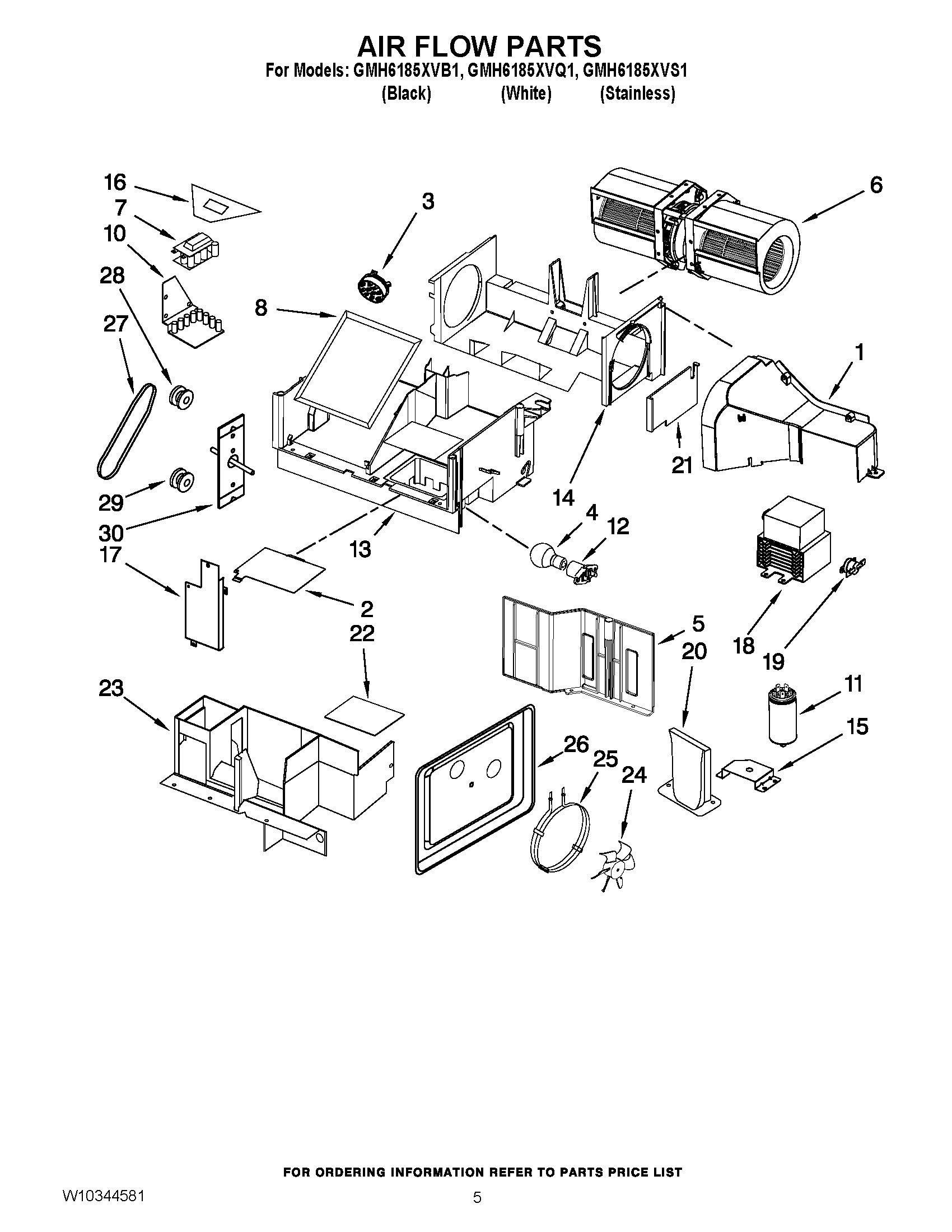

GMH6185XVB1 04 – AIR FLOW PARTS

Products

Position	Product
1	W10640886 Whirlpool Microwave Deflector Assembly
2	8206382 Whirlpool Microwave Light Cover
3	W10245178 Whirlpool Microwave Sensor
4	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
5	Cover, Side Inlet
6	MOTOR, FAN ASSEMBLY
7	Motor, FC
8	8206230A Whirlpool Microwave Charcoal Filter
10	BRACKET, MOTOR
11	Filter
12	WPW10210878 Whirlpool Microwave LMP Housing
13	Base Plate, Air Guide
14	HOLDER, HOOD FAN
15	BRACKET MOUNTING, FILTER
16	SOCKET, MOTOR WIRE
17	Cover, Inlet Air Cavity Guide
18	W10245183 Whirlpool Microwave Magnetron
19	W10598693 Whirlpool Microwave Thermostat Fix
20	W10164716 Whirlpool Microwave Plate
21	W10245182 Whirlpool Microwave Duct Cover
22	Cavity Lamp Foil
23	Sealing Plate
24	Wheel, Fan
25	W10776366 Whirlpool Microwave Heater
26	W10249508 Whirlpool Microwave Chamber
27	W10249504 Whirlpool Microwave Drive Belt
28	Wheel, Pulley
29	W10249506 Whirlpool Microwave Pulley
30	ASSEMBLY, BEARING
