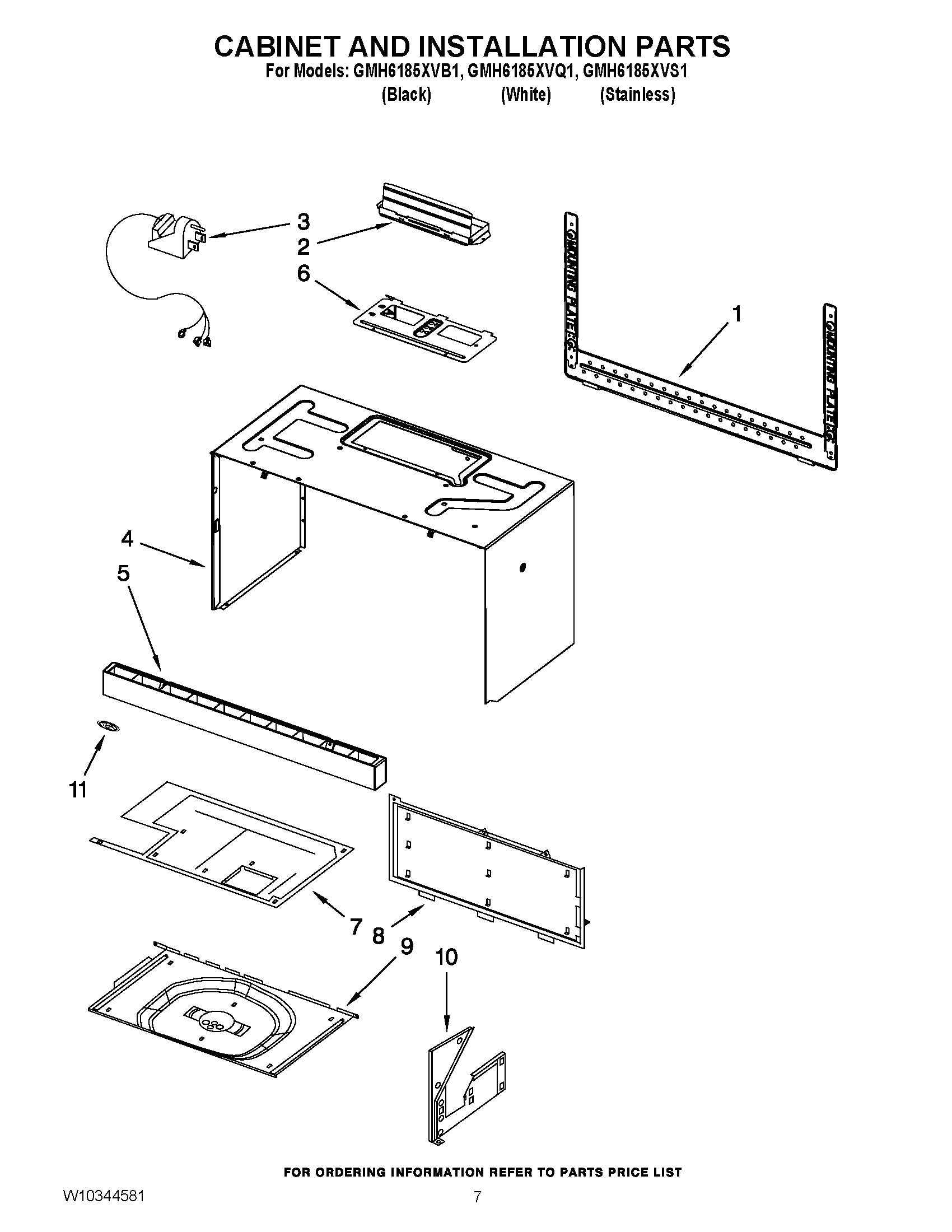

GMH6185XVB1 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	WP8169704 Whirlpool Screw
NI	Hdlmp/TT Wire Assy
NI	MAIN HARNESS
NI	Grnd Wire, Filter
NI	8205948 Whirlpool Microwave Mount
NI	W10539840 Whirlpool Microwave Wire Harness
NI	W10190018 Whirlpool Microwave Template
1	W11025649 Whirlpool Microwave Mounting Plate
2	W10843943 Whirlpool Microwave Vent Damper
3	8206388 Whirlpool Microwave Power Cord
4	WPW10245176 Whirlpool Microwave Cabinet Wrapper
4	WPW10244765 Whirlpool Microwave Cabinet Wrapper
5	W10245218 Whirlpool Microwave Vent Grille
5	W10245217 Whirlpool Microwave Vent Grill
5	W10245216 Whirlpool Microwave Vent Grille
6	COVER, HOOD FAN MOTOR
7	W10248268 Whirlpool Microwave Plate
8	W10248267 Whirlpool Plate
9	ASSEMBLY, BOTTOM PLATE
10	W10248279 Whirlpool Plate
11	NAMEPLATE
