GMH6185XVB3 07 – CABINET AND INSTALLATION PARTS
Written by
in

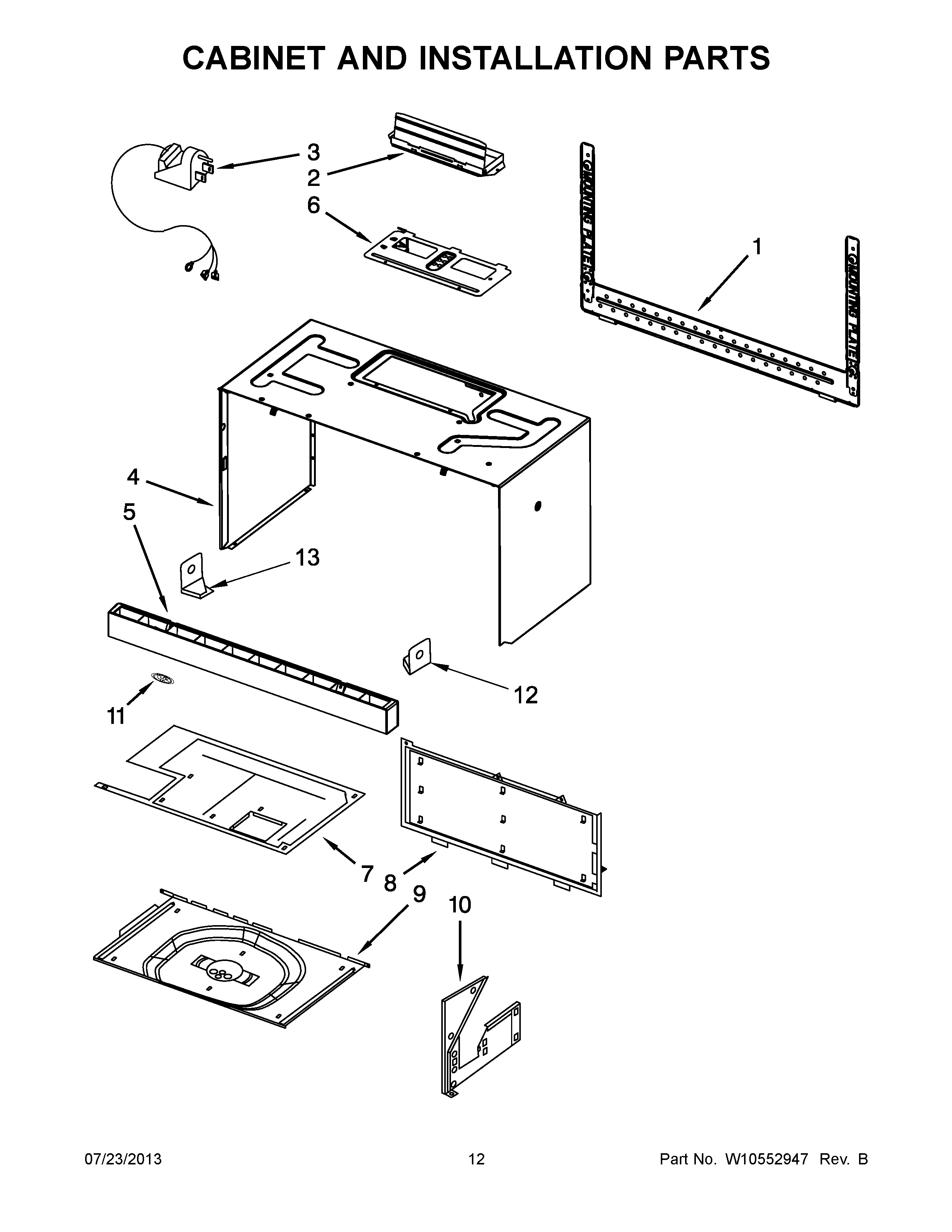

GMH6185XVB3 07 – CABINET AND INSTALLATION PARTS
Products
Position
Product
NI
WP8169704 Whirlpool Screw
NI
8205948 Whirlpool Microwave Mount
NI
MISCELLANEOUS, HARNESS, WIRE TURNTABLE MOTOR AND HOOD LAMP
NI
MISCELLANEOUS, GROUND WIRE, FILTER
NI
MISCELLANEOUS, HARNESS, MAIN
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & SPANISH)
NI
W10539840 Whirlpool Microwave Wire Harness
1
W11025649 Whirlpool Microwave Mounting Plate
2
W10843943 Whirlpool Microwave Vent Damper
3
W10595343 Whirlpool Microwave Power Cord
4A
WPW10245176 Whirlpool Microwave Cabinet Wrapper
4
WPW10244765 Whirlpool Microwave Cabinet Wrapper
5B
W10245216 Whirlpool Microwave Vent Grille
5A
W10245218 Whirlpool Microwave Vent Grille
5
W10245217 Whirlpool Microwave Vent Grill
6
COVER, HOOD FAN MOTOR
7
W10248268 Whirlpool Microwave Plate
8
W10248267 Whirlpool Plate
9
ASSEMBLY, BOTTOM PLATE
10
W10248279 Whirlpool Plate
11
NAMEPLATE
12A
W10810989 Whirlpool Microwave Mounting Bracket
12
W10703282 Whirlpool Microwave Mounting Bracket
13
W11026306 Whirlpool Microwave Mounting Bracket
13A
W10830163 Whirlpool Microwave Mounting Bracket
←
