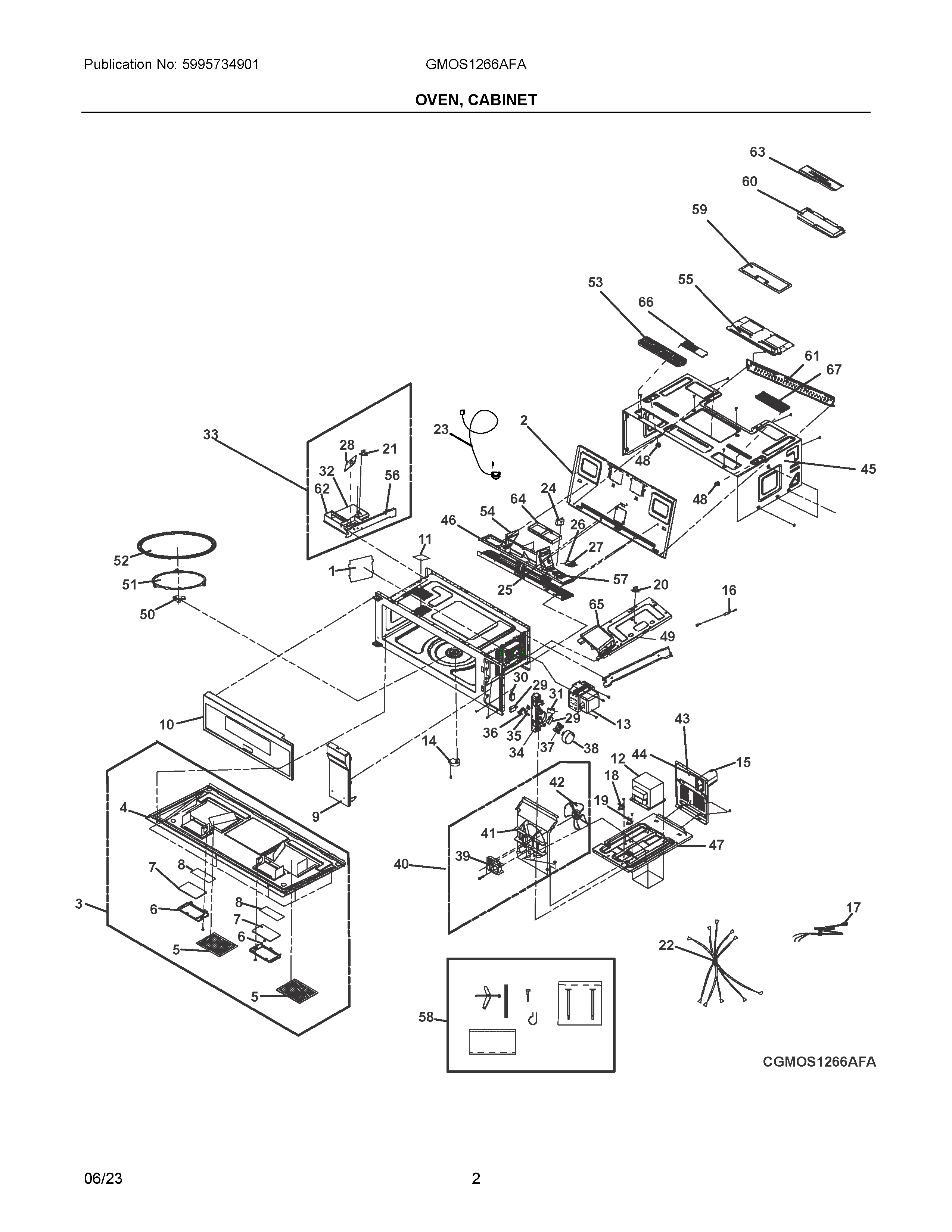

GMOS1266AFA 02 – OVEN, CABINETadmin2025-04-26T10:23:13+00:00GMOS1266AFA 02 – OVEN, CABINET
Products
| Position | Product |
|---|
| 1 | 5304523276 Frigidaire Microwave Waveguide Cover |
| 2 | PANEL, BACK |
| 3 | BASE ASSEMBLY, COMPLETE |
| 4 | PANEL, BASE |
| 5 | FILTER, GREASE |
| 6 | BRACKET, LAMP GLASS |
| 7 | LENS, LAMP, GLASS |
| 8 | LAMP, LED |
| 9 | CONTROL PANEL |
| 10 | 5304534937 Frigidaire Door Assembly |
| 11 | 5304509455 Frigidaire Microwave Tape |
| 12 | 5304509476 Frigidaire Microwave Transformer |
| 13 | MAGNETRON |
| 14 | MOTOR, TURNTABLE |
| 15 | 5304528930 Frigidaire Capacitor |
| 16 | DIODE, HIGH VOLTAGE |
| 17 | POWER CORD, ELECTRIC SRVICE |
| 18 | 5304513462 Frigidaire Microwave Thermostat |
| 19 | 5304513463 Frigidaire Microwave Thermostat |
| 20 | THERMOSTAT, 120/0 DEG |
| 21 | THERMOSTAT |
| 22 | HARNESS, WIRING, MAIN |
| 23 | 5304509652 Frigidaire Microwave Sensor |
| 24 | 5304512525 Frigidaire Microwave Capacitor |
| 25 | MOTOR, VENTING |
| 26 | 5304517874 Frigidaire Fuse |
| 27 | 5304525109 Frigidaire Microwave Filter |
| 28 | 5304517872 Frigidaire Microwave Lamp |
| 30 | SWITCH |
| 31 | 5304520021 Frigidaire Microwave Microswitch |
| 32 | GUIDE, AIR COVER |
| 33 | EXHAUST ASSEMBLY, STEAM |
| 34 | 5304534947 Frigidaire Latch Board |
| 35 | 5304519342 Frigidaire Microwave Lever |
| 36 | 5304528950 Frigidaire Switch |
| 37 | 5304528952 Frigidaire Microwave Lever |
| 38 | 5304534948 Frigidaire Motor |
| 39 | 5304509471 Frigidaire Microwave Motor |
| 40 | FAN MOTOR, ASSEMBLY |
| 41 | GUIDE, FAN |
| 42 | 5304519350 Frigidaire Microwave Blade |
| 43 | AIR GUIDE, B |
| 44 | COVER, HV CAPACITOR |
| 45 | WRAPPER, OUTER CASE |
| 46 | DAMPER, METAL |
| 47 | DAMPER, METAL, B |
| 48 | 5304509436 Frigidaire Microwave Mounting Nut Kit |
| 49 | DAMPER |
| 50 | 5304518906 Frigidaire Microwave Coupler |
| 51 | RING ASSEMBLY, TURNTABLE |
| 52 | 5304525313 Frigidaire Tray |
| 53 | DEFLECTOR, WIND, PLASTIC |
| 54 | AIR DUCT |
| 55 | 5304513481 Frigidaire Microwave Cover |
| 56 | COVER, METAL GUIDE |
| 57 | 5304515326 Frigidaire Holder |
| 58 | 5304513469 Frigidaire Microwave Mounting Kit |
| 59 | WCI 5304534961 |
| 60 | 5304509485 Frigidaire Microwave Vent Damper |
| 61 | 5304509487 Frigidaire Microwave Mounting Bracket |
| 62 | WCI 5304534962 |
| 63 | 5304509486 Frigidaire Microwave Vent Damper |
| 64 | WCI 5304534963 |
| 65 | WCI 5304534964 |
| 66 | WCI 5304534965 |
| 67 | WCI 5304534966 |
