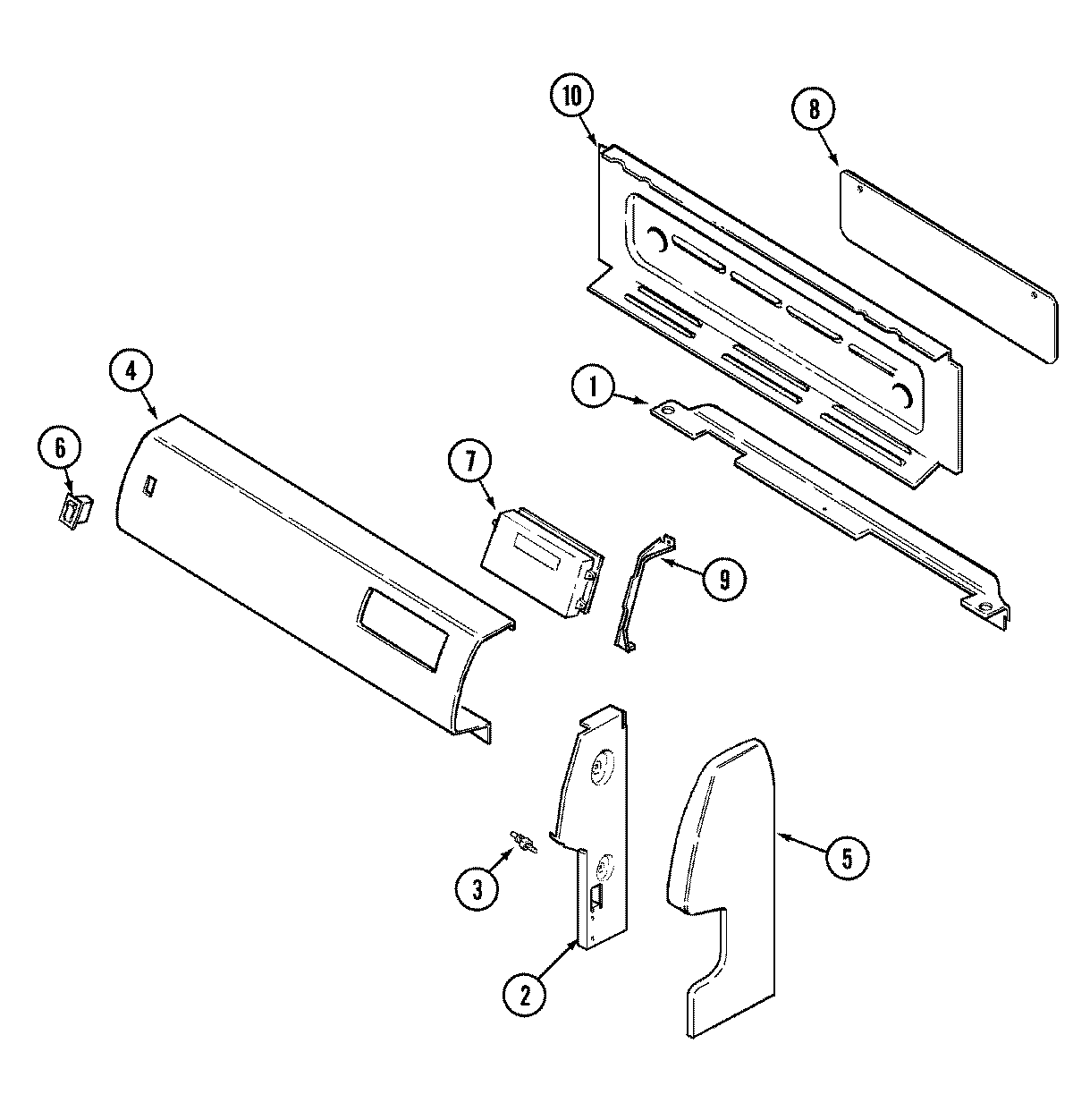

GN31113WAV 02 – CONTROL PANEL

GN31113WAV 02 – CONTROL PANEL

Written by

in

GN31113WAV 02 – CONTROL PANEL

Products

PositionProduct
1MAY 74002401
2SCREW (8BX3/8-NI)
2MAY 74002403
3MAY 74002404
4MAY 74002757
5MAY 74002439
5WP98008544 Whirlpool Screw Assembly
5MAY 74002451
5MAY 74002438
6MAY 7403P200-60
7MAY 7101P348-60
7MAY 74004802
8MAY 74002448
9MAY 74002449
9WP59002061 Whirlpool Microwave Screw
10MAY 74002450
10SCREW
11MAY 74002477
12MAY 74002355
13MAY 16002081
