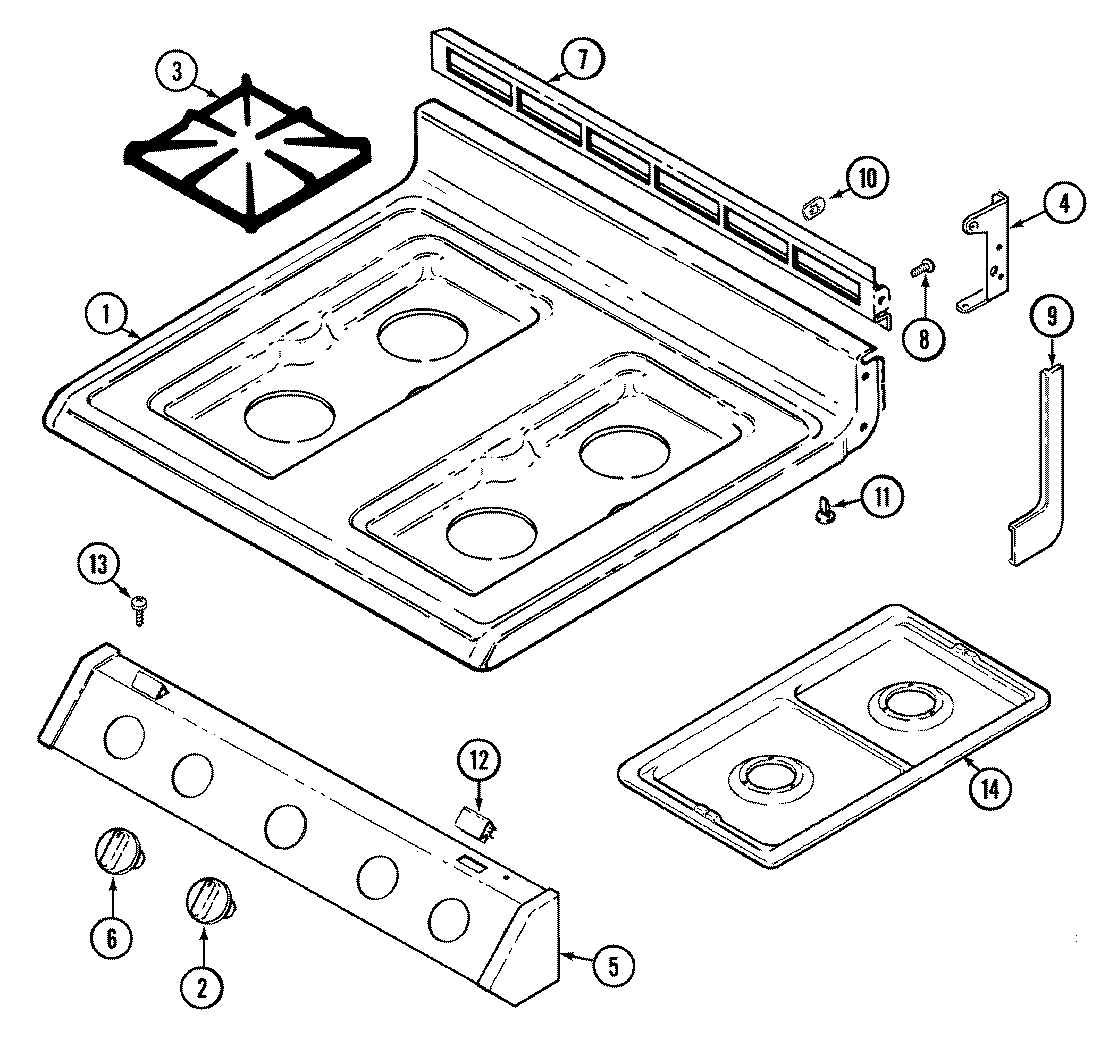

GN3177WUW 05 – TOP ASSEMBLY

GN3177WUW 05 – TOP ASSEMBLY

Written by

in

GN3177WUW 05 – TOP ASSEMBLY

Products

PositionProduct
1MAY 2001W085-84
1MAY 2001W085-81
2WP7733P508-60 Whirlpool Knob
3MAY 2003W026-00
4MAY 3807F453-51
4MAY 8114P348-60
4MAY 3807F454-51
5MAY 7712P134-60
6MAY 7731P096-60
7MAY 3608F042-09
8SCREW (10ABX1/4P TR ZN)
9MAY 7746P030-60
9MAY 7746P031-60
9MAY 8270P095-60
10MAY 7103P129-60
11MAY 8016P013-60
12MAY 7112P087-60
13MAY 7101P329-60
14MAY 5401A452-60
