GN3277XUA 01 – CONTROL PANEL – Aparts

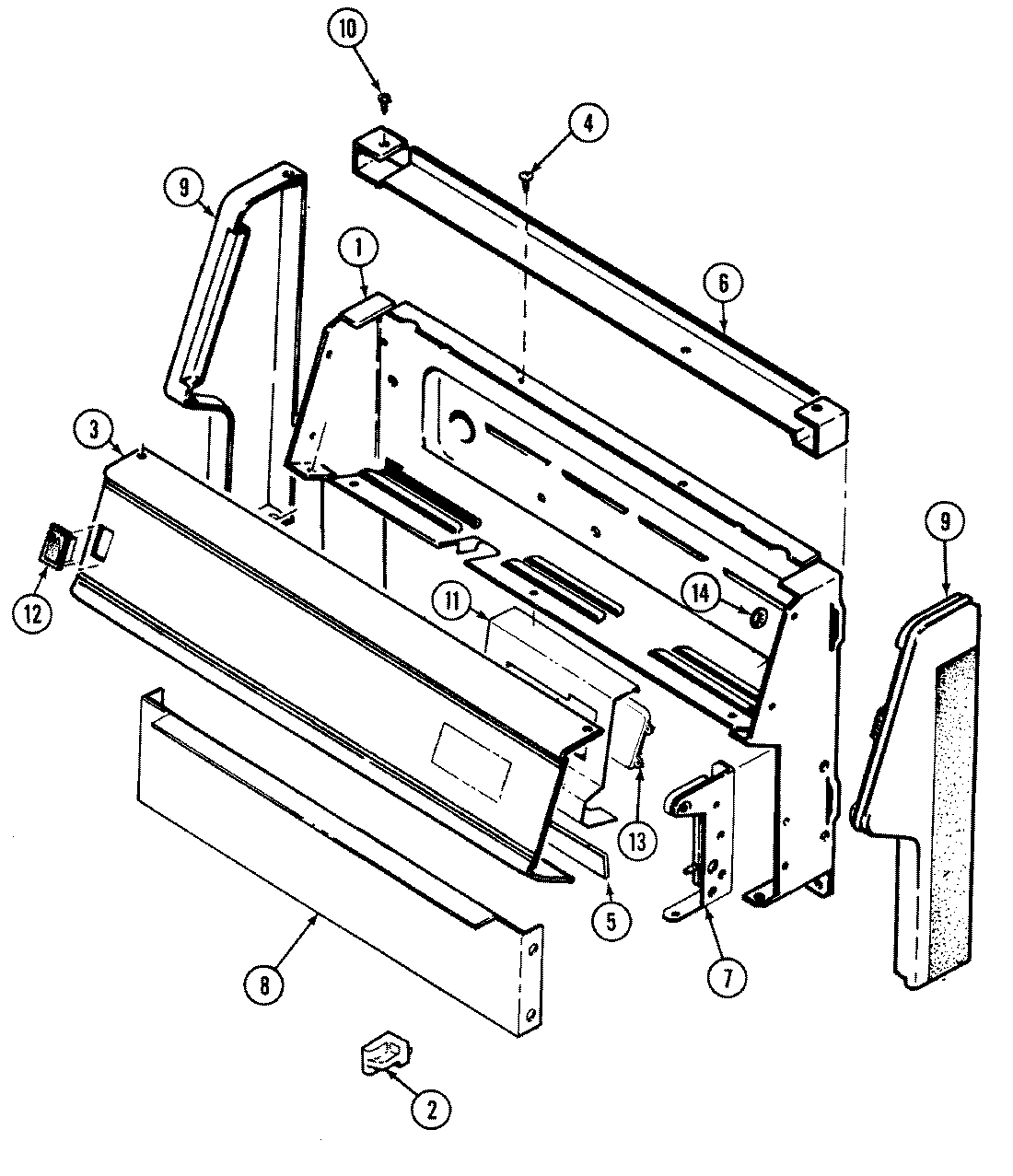

GN3277XUA 01 – CONTROL PANEL

Products

Position	Product
1	MAY 4001F091-51
1	MAY 4005F448-45
2	MAY 8010P083-60
2	MAY 7101P148-60
3	MAY 7703P634-60
3	MAY 7101P331-60
5	MAY 8036P003-60
6	MAY 4001F064-51
7	MAY 3807F454-51
7	MAY 3807F453-51
8	MAY 3604F188-09
9	MAY 7726P060-60
9	MAY 7726P059-60
10	SCREW (8BX3/8-NI)
11	MAY 3801F340-45
12	7403P067-60 Whirlpool Light Switch
13	MAY 7602P122-60
14	WP3195558 Whirlpool Nut
14	MAY 5180D138-60
15	MAY 8113P043-60
16	MAY 16002081
