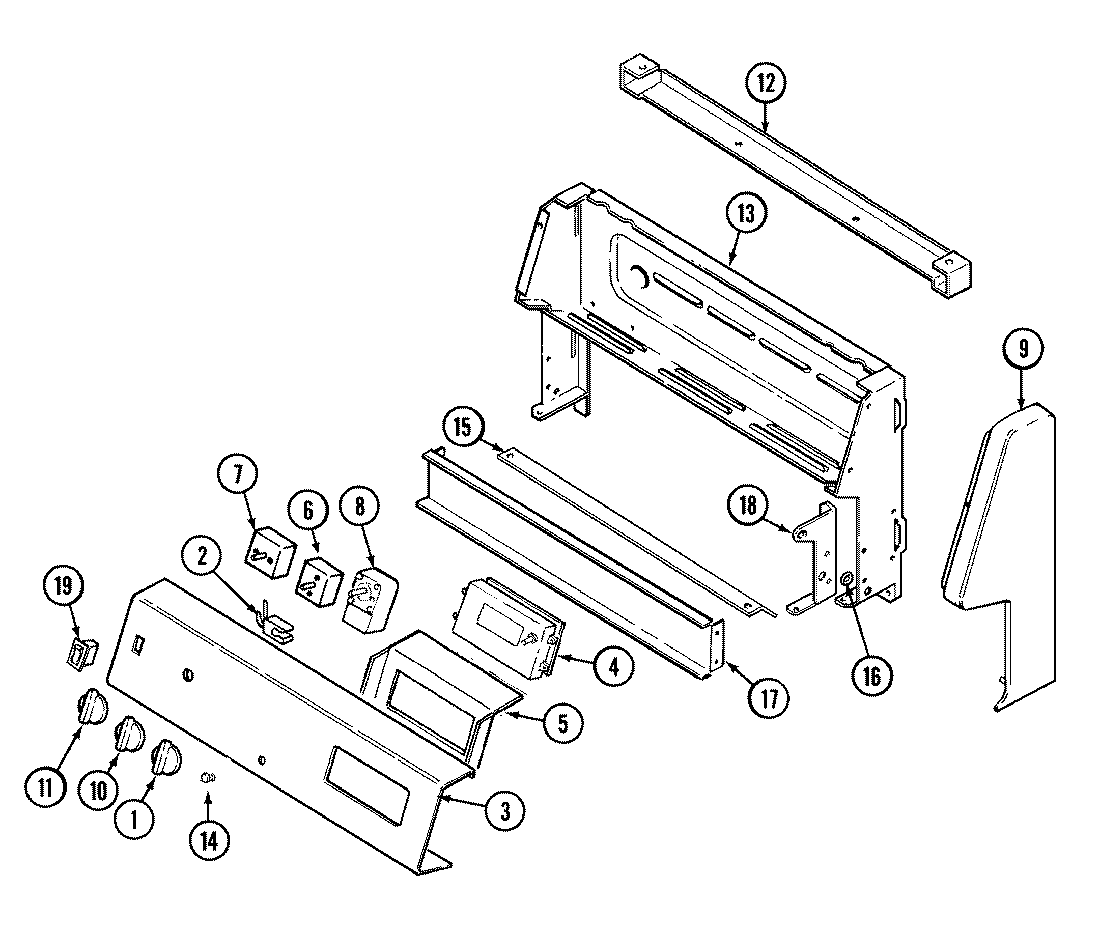

GN3531WUW 02 – CONTROL PANEL

GN3531WUW 02 – CONTROL PANEL

Written by

in

GN3531WUW 02 – CONTROL PANEL

Products

PositionProduct
1MAY 7735P037-60
2W10852510 Whirlpool Indicator Light
3MAY 7703P641-60
3MAY 7719P063-60
4SCREW (8BX3/8-NI)
4MAY 7602P122-60
5MAY 3801F340-45
5WPY706189 Whirlpool Stove Screw
6WP7403P255-60 Whirlpool Selector Switch
7WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7WP7403P239-60 Whirlpool Oven Switch
7SCREW
8WP7404P105-60 Whirlpool Thermostat
9MAY 74001355
9MAY 7726P060-60
9MAY 7726P059-60
9MAY 74001352
10MAY 7739P043-60
11MAY 7737P035-60
12MAY 4001F064-51
13MAY 4001F091-51
14W11690131 Whirlpool Light Lens
15MAY 3604F201-80
16WP3195558 Whirlpool Nut
17MAY 3802F088-51
17NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
18MAY 3418D098-60
18MAY 3418D097-60
197403P067-60 Whirlpool Light Switch
20MAY 5170D118-60
21MAY 8113P023-60
22MAY 16002081
