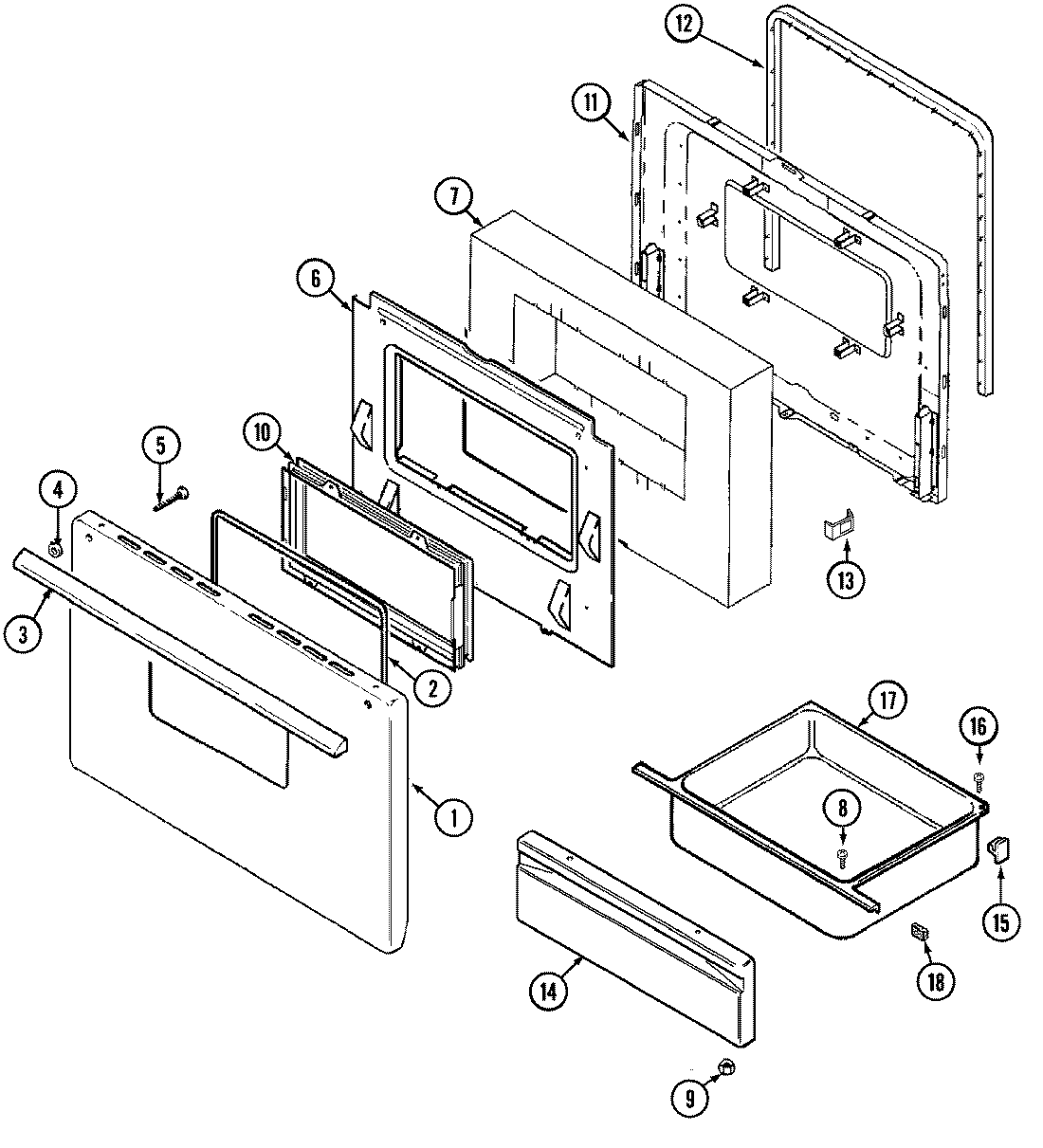

GN3531WUW 03 – DOOR/DRAWER

GN3531WUW 03 – DOOR/DRAWER

Written by

in

GN3531WUW 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 2401F121-62
2MAY 7201P017-60
3WP2411F013-70 Whirlpool Door Handle
3MAY 7701P030-60
4MAY 8010P084-60
5MAY 7101P080-60
6MAY 3601F236-45
7MAY 4804F050-60
8WP7101P072-60 Whirlpool Screw
9WPW10131078 Whirlpool Nut Assembly
10MAY 7907P015-60
11MAY 2402W212-19
11MAY 74003248
12WP7212P043-60 Whirlpool Oven Door Seal Gasket
13MAY 7101P290-60
14MAY 2416F039-62
15WP488130 Whirlpool Air Conditioner Nut
15WP8004P026-60 Whirlpool Support
15MAY 74003566
16SCREW
17MAY 74003618
17MAY 3405F019-80
18MAY 7208P011-60
