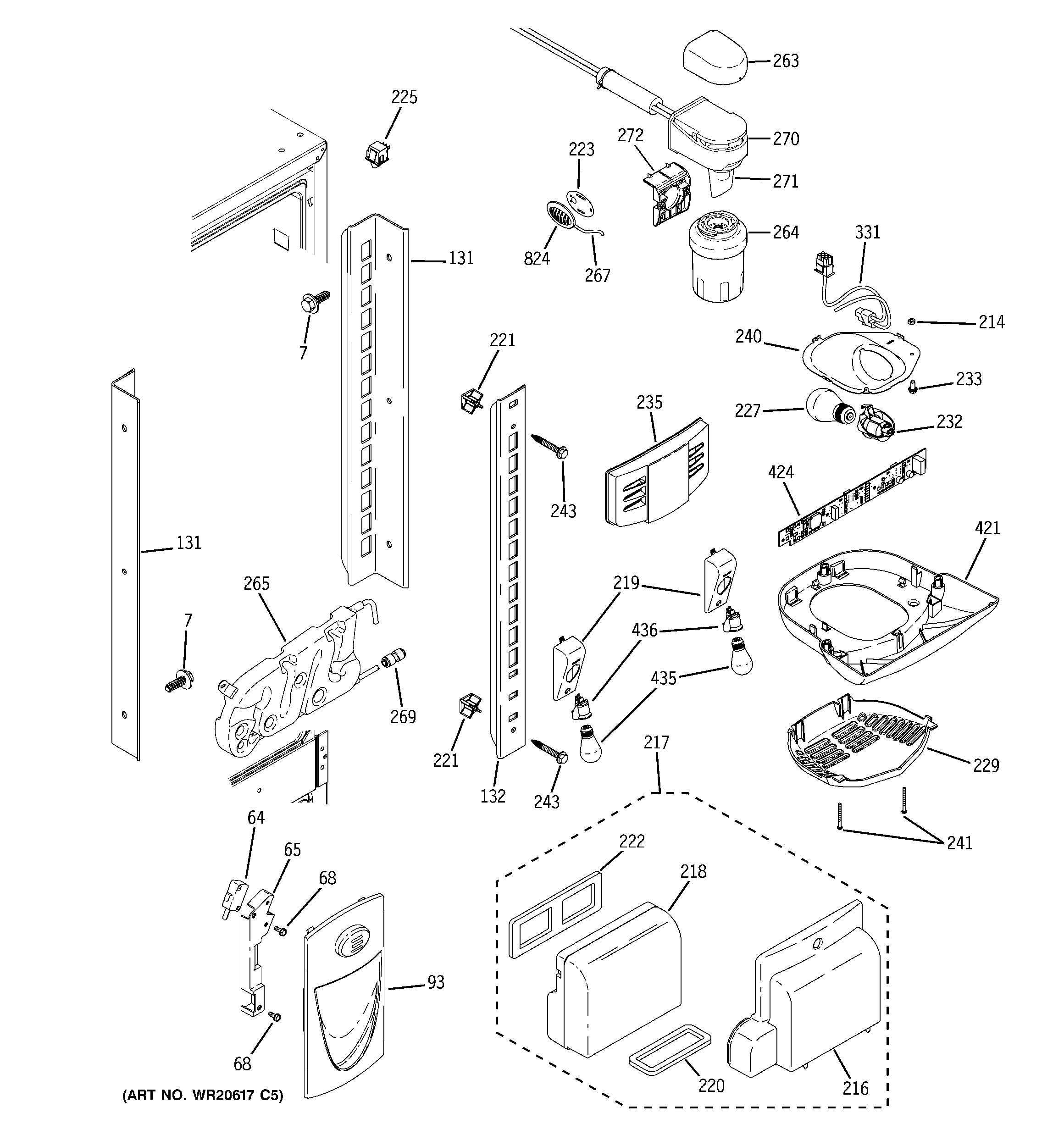

GNE22GSEAFSS FRESH FOOD SECTION

GNE22GSEAFSS FRESH FOOD SECTION

Written by

in

GNE22GSEAFSS FRESH FOOD SECTION

Products

PositionProduct
7WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
7GEN 523891P152
7GEN 238C1017P015
7GEN 8911410-9M
64WR23X10333 GE Refrigerator Actuator Switch
65WR02X11614 GE Refrigerator Cover Harness
68WR01X10605 GE Refrigerator Screw 6-22 PL IHXW 3/8 S
93DISPENSER ASM
131GEN WR72X10305
132GEN WR72X10304
214WR01X10212 GE Refrigerator 8-32 Nut
216COVER DAMPER DUCT
217WR17X12573 GE Refrigerator Damper Duct Assembly
218GEN WR17X12566
219REFLECTOR MIDDLE LAMP
220GEN WR14X10268
221GEN WR02X10892
222GEN WR14X10269
223WR02X10668 GE Refrigerator Shunt Sensor
225WR23X37285 GE Light Switch
229GEN WR17X12567
232WR2X9391 GE Socket and Terminal
233WD2X323D GE Dishwasher Screw Package
235GEN WR17X20332
240GEN WR02X12873
241GEN WR01X1792
243WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
263WR17X28086 GE Water Filter Cover
264MWFP GE Replacement Water Filter Pureline for Refrigerator
265WR17X12793 GE Refrigerator Water Tank Dispenser Assembly
267WR55X10025 GE Refrigerator Temperature Sensor
269WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
270FILTER ASM AND TUBE
271WR17X22070 GE Water Filter Bypass Plug
272WR17X12757 GE Refrigerator Water Filter Spacer
331HARNESS FF CTRL & LT
421HOUSING CONTROL ASM
424WR55X11164 GE Refrigerator Temperature Control Board Assembly
435RANGE ONLY 40W 120V APPL BULB
436SOCKET & TERMINAL ASM
824WR02X13224 GE Refrigerator Grille Sensor
