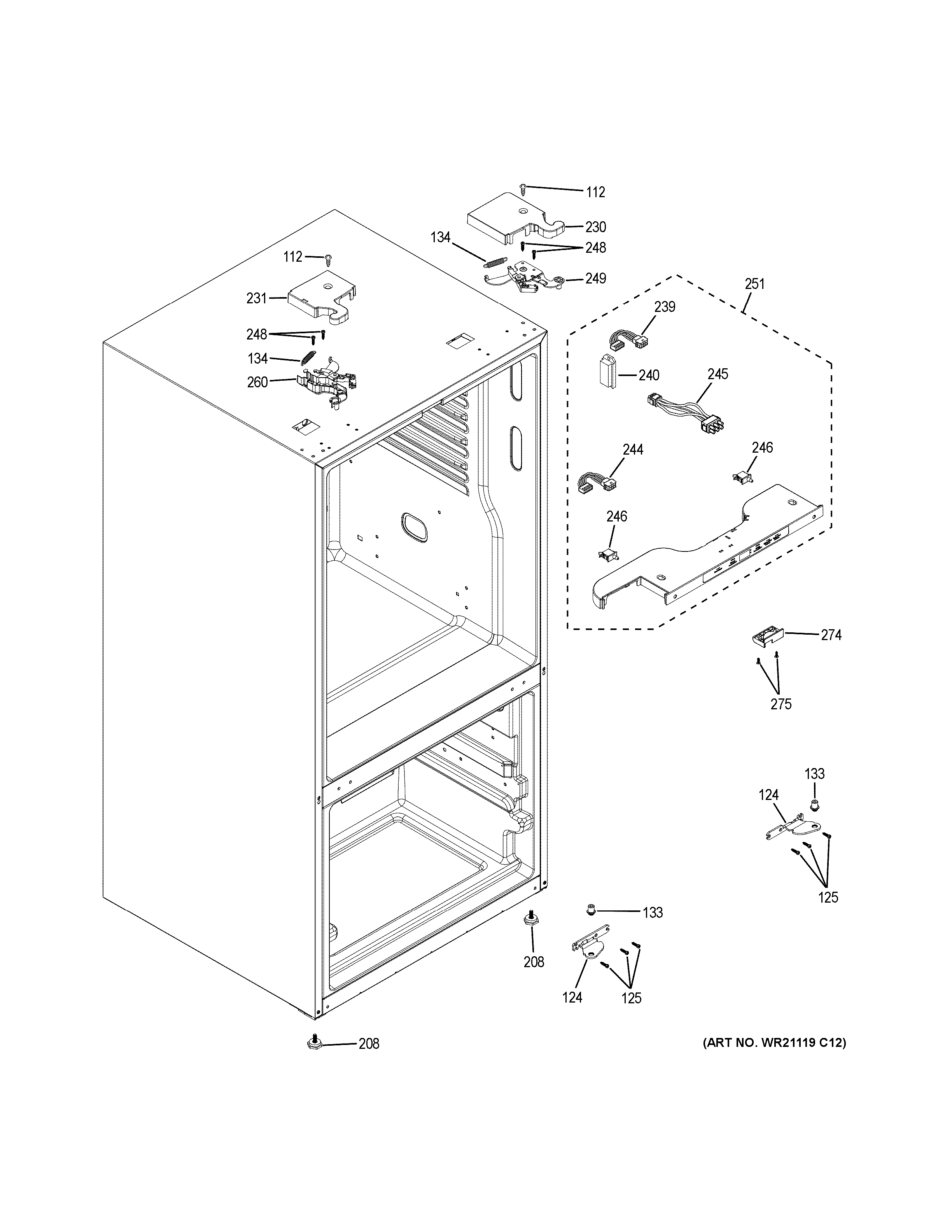

GNE25JGKAFWW CASE PARTS

GNE25JGKAFWW CASE PARTS

Written by

in

GNE25JGKAFWW CASE PARTS

Products

PositionProduct
112WR01X10379 GE Refrigerator Hinge Cover Screw
124WR13X24864 GE Refrigerator Center Hinge
125WR01X10690 GE Refrigerator Screw 12-24 TT HXT20 .90 S
133WR02X24905 GE Refrigerator Steel Hinge Pin
134WR02X25443 GE Refrigerator Spring Closure
208WR01X10850 GE Refrigerator Leveling Screw
230COVER HINGE TOP RH WW
231WR13X25607 GE Refrigerator Cover Hinge Top Left Hand WW
239HARNESS ADAPTER HUM SEN
240WR02X12711 GE Refrigerator Humidity Sensor
244WR55X24897 GE Refrigerator Interface Harness
245WR55X24933 GE Refrigerator Switch and Harness
246FRESH FOOD DOOR LIGHT SWITCH
248WR01X10792 GE Refrigerator Screw 12-24 TT HX 7/8 S
249WR13X25616 GE Hi-Top Assembly RH WW
251WR55X28665 GE Refrigerator Top Interface Assembly WW
260WR13X25617 GE Refrigerator Hinge Top Assembly Left Hand WW
274WR02X24944 GE Refrigerator Striker Top Mullion
275WR01X10789 GE Refrigerator Stainless Steel Screw 8-18 RNDW 5/8
