GNE25JMKLFES FREEZER DOOR

GNE25JMKLFES FREEZER DOOR

Written by

in

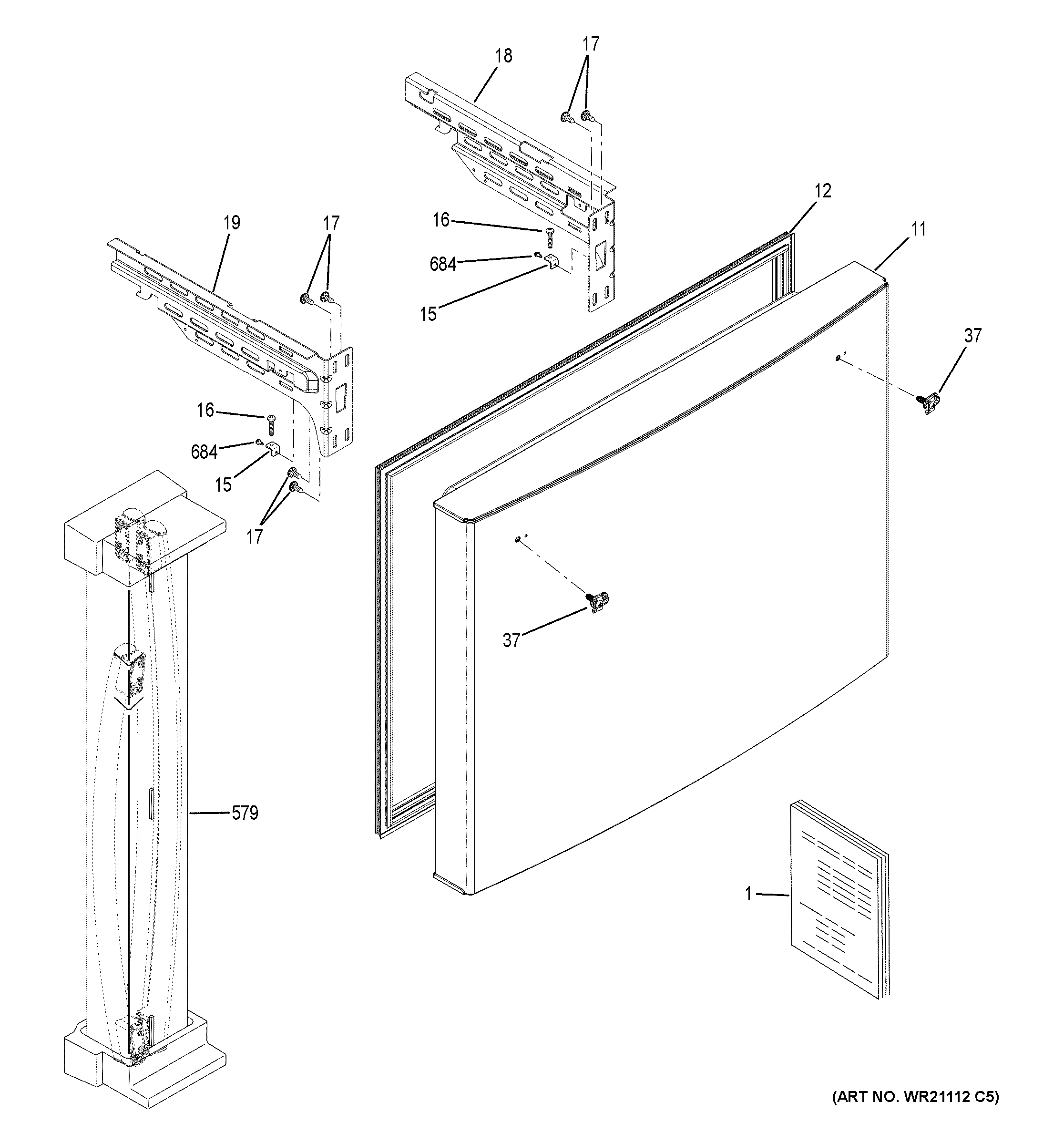

GNE25JMKLFES FREEZER DOOR

Products

PositionProduct
1PM USE AND CARE MANUAL
1PM MINI MANUAL AND WIRING
11WR78X25540 GE Refrigerator Door Foam Assembly
12WR14X40076 GE Refrigerator Freezer Drawer Gasket Gray
15WR02X12870 GE Refrigerator Bracket Support
16WR01X10843 GE Refrigerator 1/4-20 UNC Screw
17WR01X10885 GE Refrigerator Screw 1/4-20 RT Flat 3/4 S
18WR72X30559 GE Refrigerator Drawer Bracket
19WR72X30560 GE Refrigerator Drawer Bracket
37FASTNER HANDLE ASM
579WR12X25069 GE Door Handle Kit
684WR01X10602 GE Refrigerator Screw 8-32 AB IHWS 3/8 S
