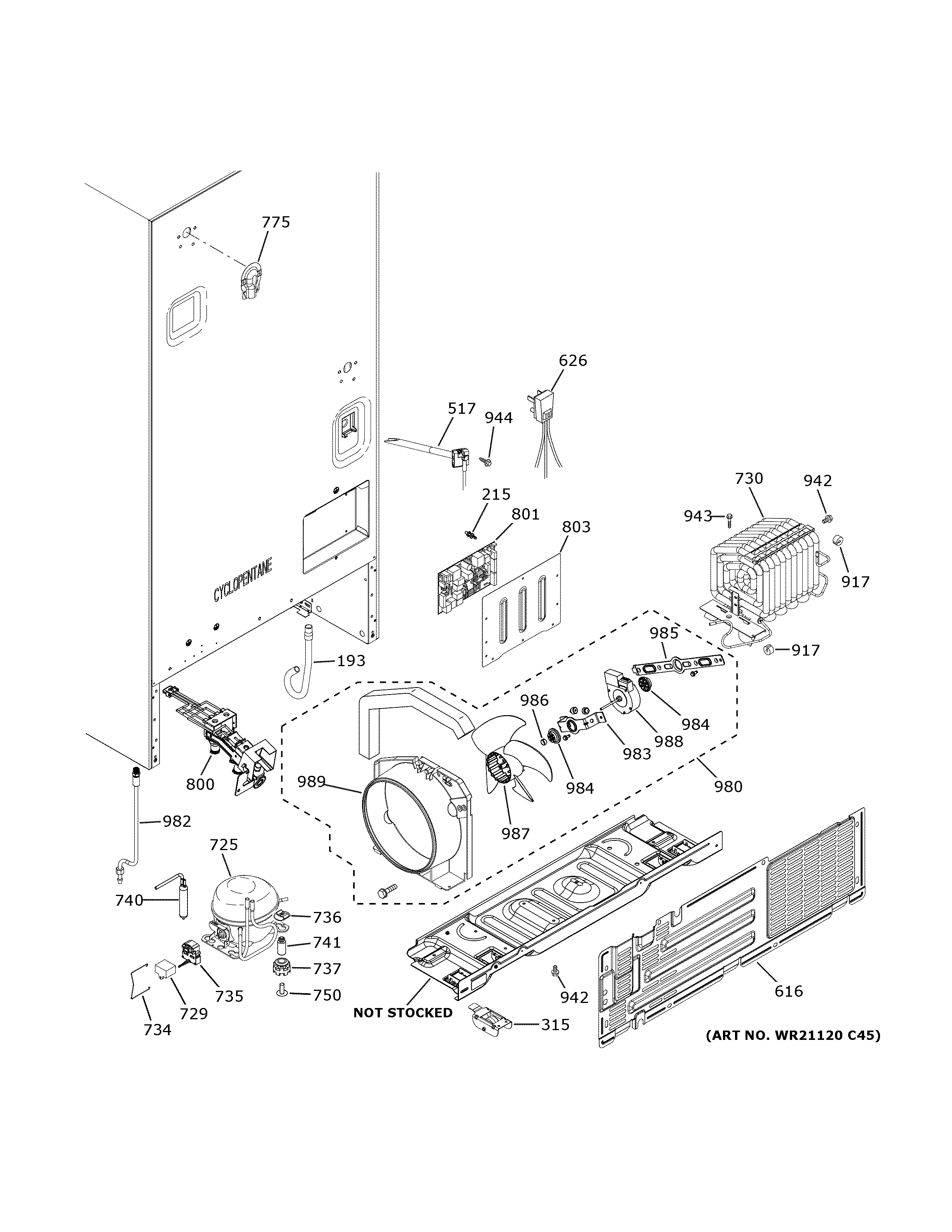

GNE25JMKLFES MACHINE COMPARTMENT

GNE25JMKLFES MACHINE COMPARTMENT

Written by

in

GNE25JMKLFES MACHINE COMPARTMENT

Products

PositionProduct
193TUBE DRAIN
215WR02X10663 GE Refrigerator Standoff
315WR02X24943 GE Refrigerator Mobility Back Assembly
517WR29X24766 GE Refrigerator Grommet and Tube IM Assembly
616WR82X10103 GE Refrigerator Access Cover
626WR23X30131 GE Refrigerator Lower Cabinet Harness
725WR87X10224 GE Refrigerator Compressor Kit EGYS60
729WR55X24064 GE Refrigerator Run Capacitor
730WR87X32326 GE Refrigerator L-Fin Al Condenser 10 Pass
734WR02X26153 GE Refrigerator Clip Retainer
735WR08X25466 GE Refrigerator PTCR Overload Combo
736CLIP
737WR02X22869 GE Refrigerator Grommet
740WR86X25269 GE Refrigerator R134 Dryer
741WR1X1779 GE Refrigerator Stud Mounting Compressor
750WR1X1786 GE Refrigerator Screw
775WR17X13124 GE Refrigerator Water Line Cover
800ISOLATION VALVE AND JUMPER
801BOARD T MAIN BF VS
803WR02X12025 GE Main Board Enclosure
917WR02X13573 GE Refrigerator Sound Damper
942WR01X10654 GE Refrigerator Screw 10-32 TT HXW 5/16 S
943SCR 10-16 B HXW 1/4 S
944WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
980WR60X29573 GE Refrigerator Condenser Fan & Housing
982WR02X13774 GE Refrigerator Tube Lead
983WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
984WR02X10520 GE Refrigerator Fan Motor Grommet
985WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
986WR02X12149 GE Refrigerator Ring
987WR60X24484 GE Refrigerator Condenser Fan Blade
988WR60X10209 GE Refrigerator DC Condenser Fan Motor
989SHROUD CONDENSER
