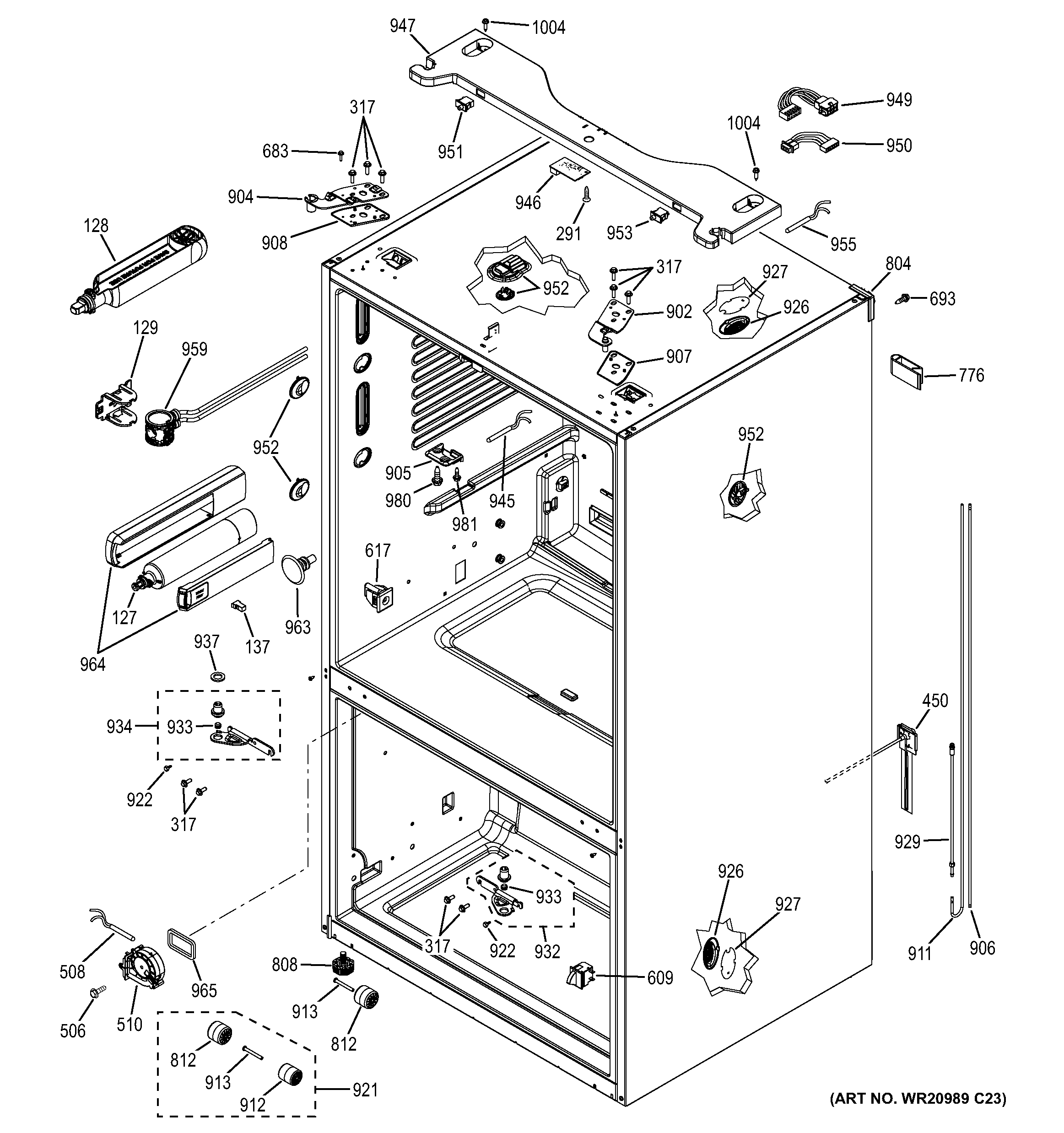

GNE26GMDAES CASE PARTS

GNE26GMDAES CASE PARTS

Written by

in

GNE26GMDAES CASE PARTS

Products

PositionProduct
127RPWFE GE Refrigerator Water Filter
128WR01X29059 GE Water Filter Bypass Plug Replacement
129WR17X13069 GE Refrigerator Filter Manifold Bracket
137LATCH FILTER DOOR
291WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
317WR01X11049 GE Refrigerator Screw 1/4-20 HXW 7/8"
450LINE FZ IM WATER ASM
506WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
609WR23X37285 GE Light Switch
617WR2X8349 GE Screw Grommet
776WR02X10522 GE Refrigerator Clamp Tube
804CAP CASE CORNER DGY
804WR02X13759 GE Refrigerator Cap Case Corner Assembly DGY
808WR01X11046 GE Refrigerator Screw Levelling Assembly
812WR02X13616 GE Front Wheel Overmold Assembly
902HINGE TOP PIN ASM RH
904WR13X10975 GE Refrigerator Left Hand Top Hinge Pin Assembly
905WR01X31733 GE Refrigerator Mullion Striker
906WR02X32130 GE Refrigerator PEX Water Line
907WR02X13717 GE Refrigerator Right Hand Top Hinge Pad Assembly
908WR02X13718 GE Refrigerator Top Hinge Pad Assembly Left Hand
911WR02X32126 GE Refrigerator PEX Water Line
912WR02X13685 GE Refrigerator Wheel
913WR01X11008 GE Refrigerator Axle Wheel
921WR49X10268 GE Refrigerator Front/Rear Wheel & Axle
922WR01X11038 GE Screw 8-32 Tapping Pan 5/8"
926WR02X13729 GE Refrigerator Thermistor Grille
927WR01X11066 GE Refrigerator Shunt Sensor
929WR02X13774 GE Refrigerator Tube Lead
932WR13X10976 GE Refrigerator Right Hand Hinge Center Assembly
933WR01X11016 GE Adjustable Hinge Center Screw
934WR13X10982 GE Refrigerator Left Hand Hinge Center Assembly
937WR01X11047 GE Refrigerator Left Hand Hinge
945WR55X10025 GE Refrigerator Temperature Sensor
946WR55X34647 GE Refrigerator Humidity Board
947HINGE COVER TOP DGY ES
949HARNESS DOOR SWITCH AC
949GEN WR23X10778
950WR23X10777 GE Refrigerator Door Case Harness
951FRESH FOOD DOOR LIGHT SWITCH
952WR55X11132 GE Refrigerator LED Light Cover Assembly
959FILTER MANIFOLD
963WR02X13760 GE Refrigerator Liner Grommet
964WR02X26526 GE Refrigerator Water Filter Cover Assembly
965WR14X10384 GE Refrigerator Fan Duct Gasket
980WR01X11060 GE Scr 8-18 Ab Hex 9/16S
981WR01X11065 GE Scraper 8-18 Ab Flap 3/4 S Zn
