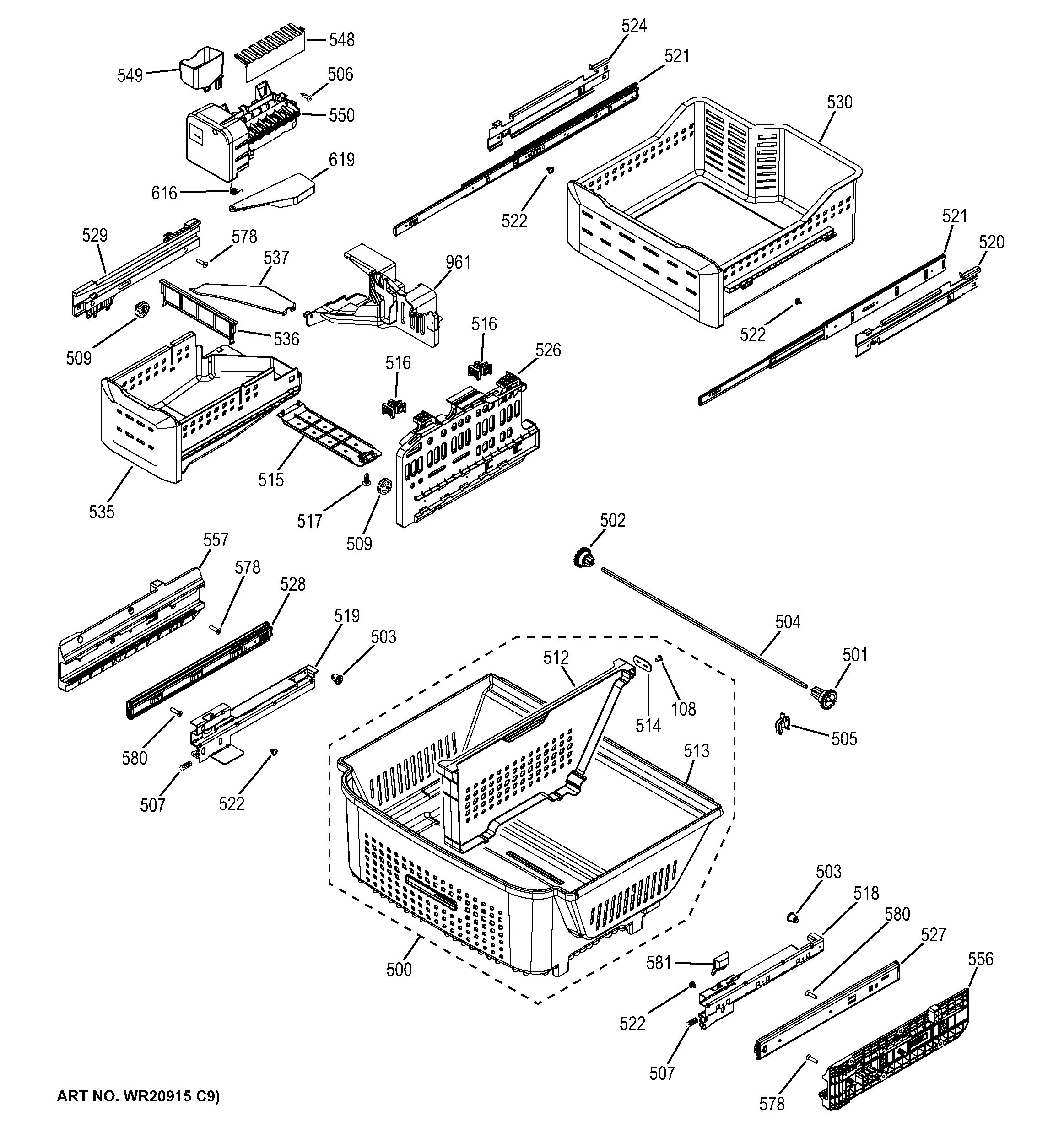

GNE26GMDBES FREEZER SHELVES

Products

PositionProduct
501WR02X13629 GE Refrigerator Lower Drawer Right Hand Gear
502WR02X13630 GE Refrigerator Lower Left Hand Drawer Gear
503WR02X13631 GE Refrigerator Connector Gear Pinion
504WR02X13708 GE Crossbar Pinion
505WR01X11023 GE Refrigerator Retainer
506WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
507WR01X11036 GE Refrigerator Door Screw Set
509WHEEL SLIDE ASM
512WR02X13703 GE Bottom Basket Divider
513WR21X10251 GE Refrigerator Bottom Basket Assembly
514WR02X13674 GE Freezer Slide Support
515SUPPORT BTM FZ DIVIDER
516STOPPER FZ DIVIDER
517FASTENER PUSH
518BRACKET SLIDE FZ RH
519WR17X13145 GE Refrigerator Left Hand Slide Bracket Assembly
520WR17X13077 GE Refrigerator Bracket Slide Right Hand
521WR17X13170 GE Refrigerator Upper Basket Slide
522WR01X11022 GE Refrigerator Screw
524WR17X13079 GE Refrigerator Bracket Slide Left Hand
526DIVIDER FZ
527WR72X10427 GE Refrigerator Slide Lower Right Hand
528WR72X10428 GE Refrigerator Lower Left Hand Slide
529GLIDE LH ASM
530GEN WR32X10899
535BASKET FZ IM ASM
536WR02X13696 GE Refrigerator Baffle
537COVER FZ IM
548WR29X10111 GE Refrigerator Stripper IM
549WR30X25485 GE Refrigerator Ice Fill Cup
550ICEMAKER
556SLIDE HOLDER FZ RH
557SLIDE HOLDER FZ LH
578WR01X11012 GE Refrigerator Screw 8-18 AB HXW 9/16"
580WR01X11013 GE Refrigerator Screw 10-18 FLT20 3/4 S
581WR02X13632 GE Refrigerator Striker Light Switch
616WR01X11033 GE Refrigerator Spring Feeler Arm
619WR29X10110 GE Refrigerator IM Feeler Arm
961PLATE MOUNTING FZ IM
