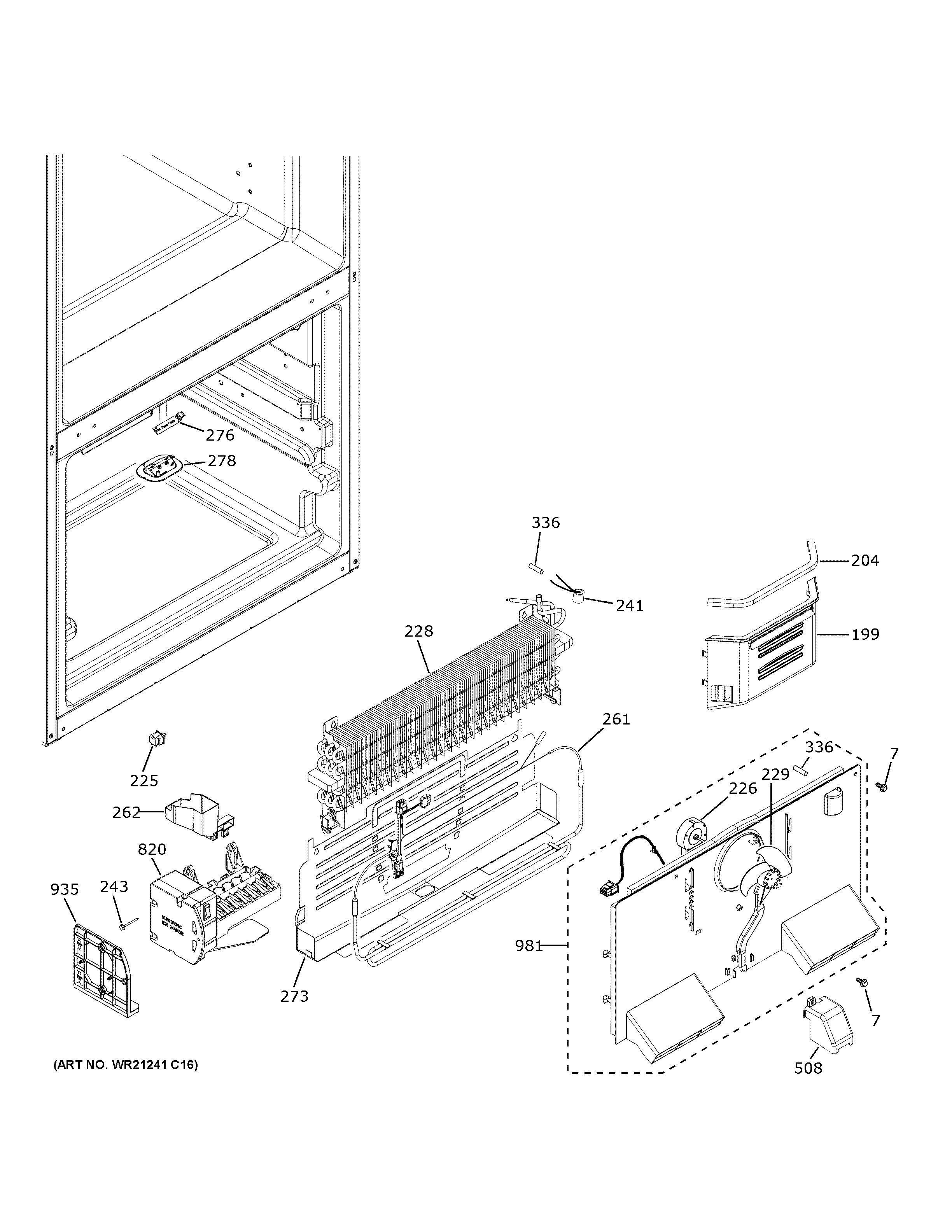

GNE27JGMWFWW FREEZER SECTION

GNE27JGMWFWW FREEZER SECTION

Written by

in

GNE27JGMWFWW FREEZER SECTION

Products

PositionProduct
7WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
199WR17X40007 GE Refrigerator Evaporator Cover & Fan
204WR14X24804 GE Refrigerator Adhesive Foam Strip
225WR23X39269 GE Light Switch
226MOTER DC EVAP FAN
228WR85X40009 GE Evaporator
229EVAPORATOR FAN BLADE
241THERMOSTAT DEF
243WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
261WR51X39268 GE Refrigerator Heater and Harness Assembly
262WR29X24823 GE Refrigerator Cup Fill Assembly
273WR17X30140 GE Drain Trough
276WR55X24870 GE Refrigerator Board LED Light Assembly
278WR02X38285 GE Light Shield
336WR55X10025 GE Refrigerator Temperature Sensor
508WR02X40125 GE Refrigerator Connector Cover
820ICEMAKER
935WR02X24817 GE Refrigerator Support Im
981WR49X40247 GE Refrigerator Evaporator Cover and Fan
