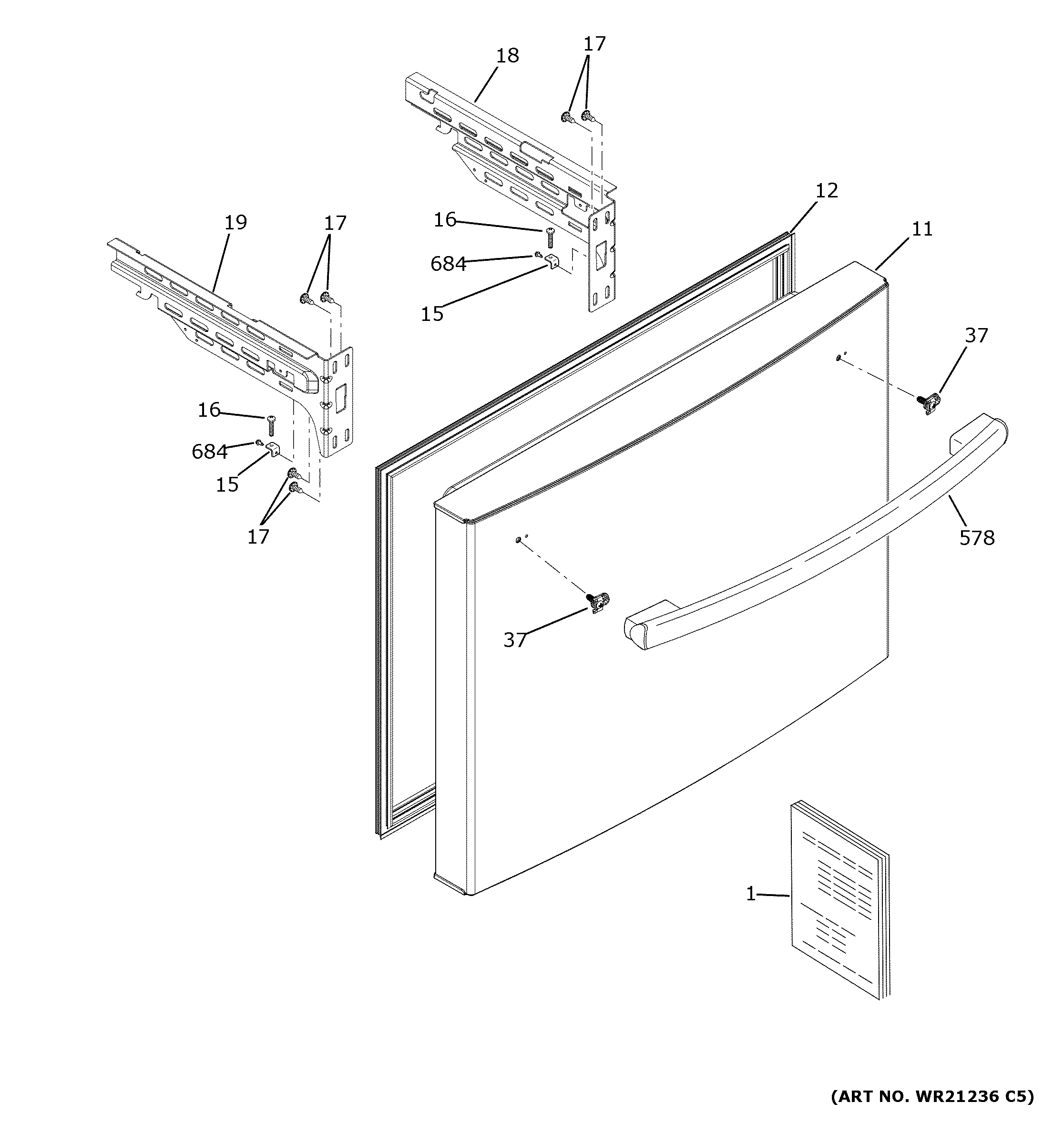

GNE27JMMKFES FREEZER DOOR

GNE27JMMKFES FREEZER DOOR

Written by

in

GNE27JMMKFES FREEZER DOOR

Products

PositionProduct
1PM USE AND CARE MANUAL
1PM MINI MANUAL AND WIRING
11WR78X30259 GE Refrigerator Freezer Door
12WR14X30142 GE Refrigerator Freezer Door Gasket
15WR02X12870 GE Refrigerator Bracket Support
16WR01X10843 GE Refrigerator 1/4-20 UNC Screw
17WR01X10885 GE Refrigerator Screw 1/4-20 RT Flat 3/4 S
18WR72X30559 GE Refrigerator Drawer Bracket
19WR72X30560 GE Refrigerator Drawer Bracket
37FASTNER HANDLE ASM
578WR12X34312 GE Door Handle
684WR01X10844 GE Refrigerator Screw 8-32 AB IHWS 3/8"
