GNE27JYMKFFS FREEZER DOOR

GNE27JYMKFFS FREEZER DOOR

Written by

in

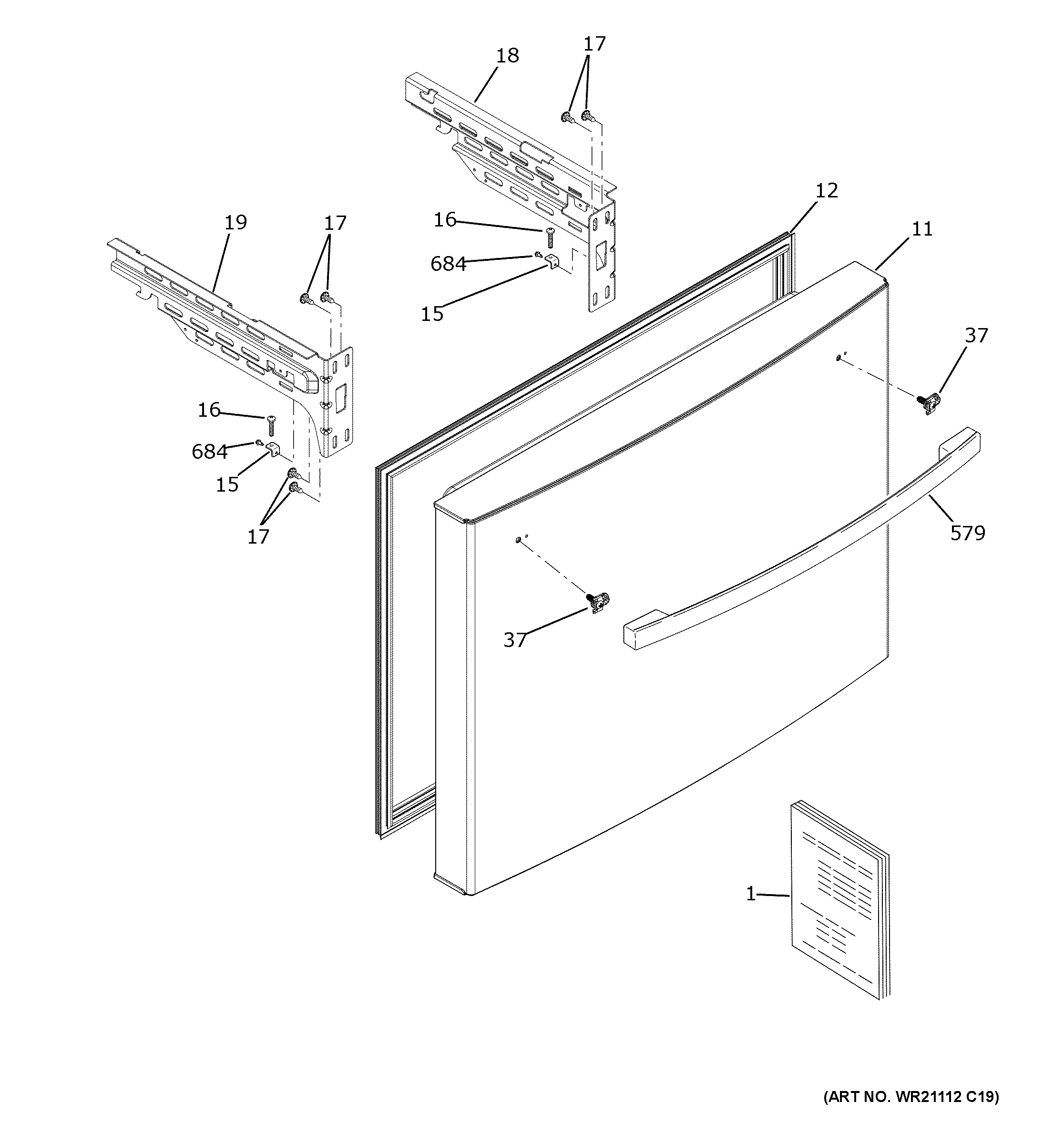

GNE27JYMKFFS FREEZER DOOR

Products

PositionProduct
1PM USE AND CARE MANUAL
1PM MINI MANUAL AND WIRING
11WR78X33847 GE Refrigerator Freezer Stainless Steel Door
12WR14X30142 GE Refrigerator Freezer Door Gasket
15WR02X12870 GE Refrigerator Bracket Support
16WR01X10843 GE Refrigerator 1/4-20 UNC Screw
17WR01X10885 GE Refrigerator Screw 1/4-20 RT Flat 3/4 S
18WR72X30559 GE Refrigerator Drawer Bracket
19WR72X30560 GE Refrigerator Drawer Bracket
37FASTNER HANDLE ASM
579WR12X36386 GE Refrigerator Stainless Steel Freezer Handle
684WR01X10844 GE Refrigerator Screw 8-32 AB IHWS 3/8"
