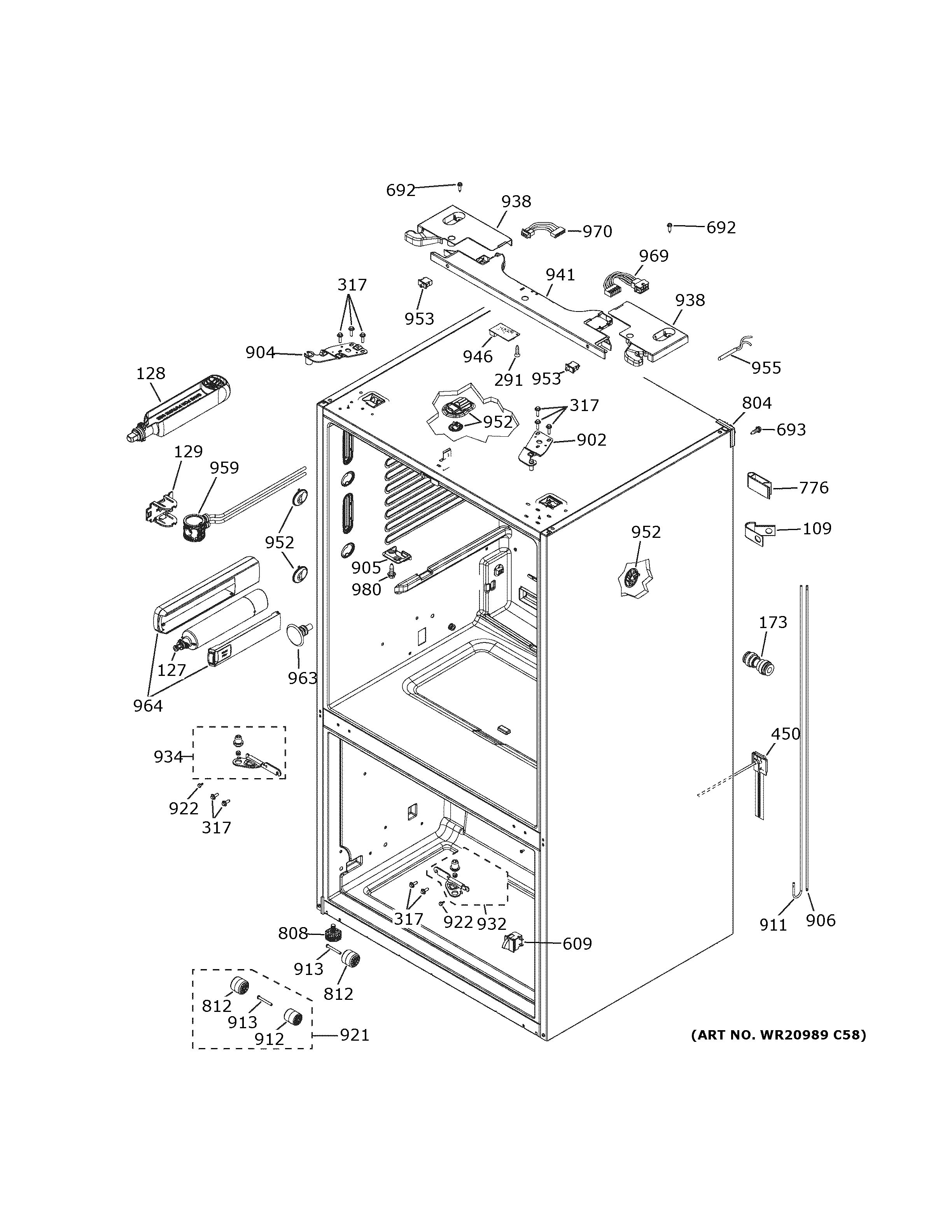

GNE29GYNDFS CASE PARTS

Products

PositionProduct
109WR01X11064 GE Refrigerator Plastic Clip
127RPWFE GE Refrigerator Water Filter
128WR01X29059 GE Water Filter Bypass Plug Replacement
129WR17X13069 GE Refrigerator Filter Manifold Bracket
173WR02X13738 GE Refrigerator Coupler Straight 1/4
291WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
317WR01X11049 GE Refrigerator Screw 1/4-20 HXW 7/8"
450WR02X20621 GE Refrigerator Ice Maker Fill Tube Heater Assembly
609WR23X37285 GE Light Switch
692SCREW
693WR01X10593 GE Refrigerator Screw 8-18 AB IHXW 3/4 S
776WR02X10522 GE Refrigerator Clamp Tube
804WR02X13759 GE Refrigerator Cap Case Corner Assembly DGY
808WR01X11046 GE Refrigerator Screw Levelling Assembly
812WR02X13616 GE Front Wheel Overmold Assembly
902WR13X25910 GE Refrigerator Hinge Top Pin Assembly Right Hand
904WR13X25911 GE Refrigerator Top Left Hand Hinge Assembly
905WR01X31733 GE Refrigerator Mullion Striker
906WR02X32130 GE Refrigerator PEX Water Line
911WR02X32126 GE Refrigerator PEX Water Line
912WR02X13685 GE Refrigerator Wheel
913WR01X11008 GE Refrigerator Axle Wheel
921WR49X10268 GE Refrigerator Front/Rear Wheel & Axle
922WR01X26257 GE Refrigerator Screw 8-32 HXW 3/4 S
932WR13X32036 GE Refrigerator Center Hinge Right
934WR13X32039 GE Refrigerator Left Center Hinge
938WR17X20164 GE Refrigerator Hinge Endcap Assembly DGY (2pk)
941WR17X13226 GE Refrigerator Middle Cover Assembly Dark Gray
946WR55X34647 GE Refrigerator Humidity Board
952COVER LED FF ASM WW
953WR23X29161 GE Refrigerator Door Switch
955WR55X10025 GE Refrigerator Temperature Sensor
959FILTER MANIFOLD
963WR02X13760 GE Refrigerator Liner Grommet
964WR02X26526 GE Refrigerator Water Filter Cover Assembly
969WR23X29160 GE Refrigerator AC Door Switch Harness
970WR23X10777 GE Refrigerator Door Case Harness
980WR01X11060 GE Scr 8-18 Ab Hex 9/16S
