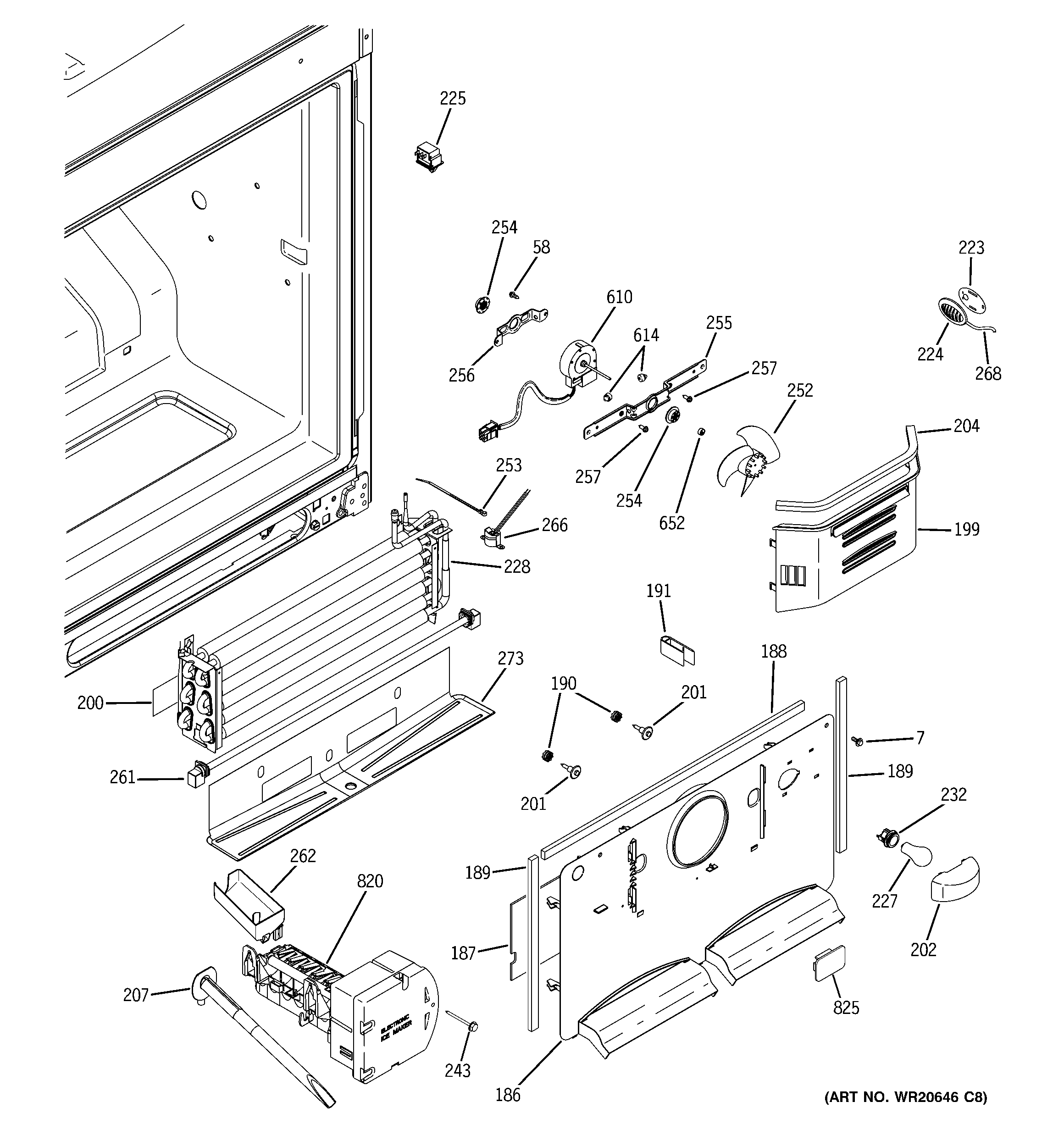

GNS22EGEAFBB FREEZER SECTION

GNS22EGEAFBB FREEZER SECTION

Written by

in

GNS22EGEAFBB FREEZER SECTION

Products

PositionProduct
7WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
7GEN 200D8907G006
7GEN 200D3658P011
7GEN 200D1687G003
7GEN 200D1474P004
7GEN 197D5329P007
7GEN 197D4357P005
7GEN 200D8154P001
7GEN 197D3782P001
7GEN 355B1126P007
7GEN 238C3626P001
7GEN 523891P152
7GEN 200D9742G004
7GEN 203C5538G002
7GEN 8911203P037
7GEN 8911201P499
7GEN 8911421P011
7GEN WJUNW06GHYKO
7GEN 8911410-6M
7GEN 243B2217P001
7GEN 238C1017P011
7GEN 238C2248P006
7GEN 225D4394G001
7GEN 203C5765P004
58WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
58GEN 8911238P058
186GEN WR17X12816
187GEN WR14X10260
188GEN WR14X10261
189GEN WR14X10262
190WR02X11331 GE Refrigerator Grommet
191WR02X10522 GE Refrigerator Clamp Tube
199GEN WR17X12575
200WR14X10267 GE Insulation Harness
201WR01X10685 GE Scraper 8-18 Assembly
202SHIELD LIGHT FZ
204GEN WR14X10264
207GEN WR17X12788
223WR02X10668 GE Refrigerator Shunt Sensor
224WR02X10647 GE Refrigerator Grille Sensor
225FREEZER LIGHT SWITCH
227RANGE ONLY 40W 120V APPL BULB
228WR85X10107 GE Refrigerator Low Side Assembly
232WR2X9391 GE Socket and Terminal
243WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
252EVAPORATOR FAN BLADE
253WR02X11607 GE Refrigerator Wire Tie
255WR17X12507 GE Evaporator Fan Front Bracket
256WR02X10764 GE Refrigerator Evaporator Bracket
257WR01X10620 GE Refrigerator Screw 10-32
261HEATER DEF ASM
262WR29X10092 GE Refrigerator Ice Maker Fill Cup
266WR50X10068 GE Refrigerator Defrost Thermostat
268WR55X10025 GE Refrigerator Temperature Sensor
273GEN WR17X12506
610WR60X10277 GE Refrigerator Evaporator Fan DC Motor Assembly
614BUMPER
652WR02X12149 GE Refrigerator Ring
820WR30X10093 GE Refrigerator Ice Maker
825GEN WR02X13245
