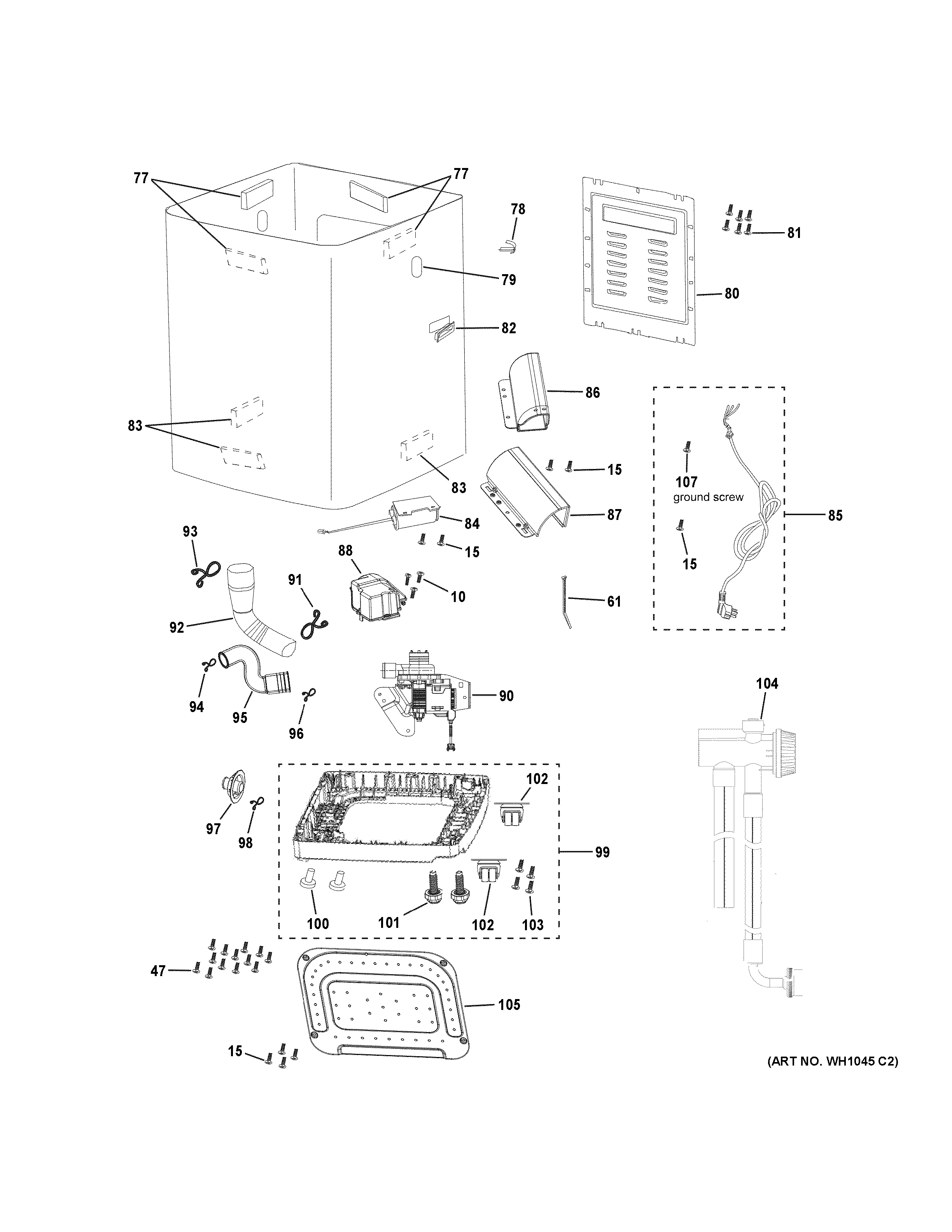

GNW128PSM0WW CABINET

Products

Position	Product
10	WH02X26247 GE Housing Screw ST4 12
15	TAPPING SCREW
47	WH02X26189 GE Tapping Screw
61	WH01X27678 GE Wire Tie
77	FELT PAD
78	HARNESS CLIP
79	HOOK
80	REAR ACCESS PANEL
81	WH02X26927 GE Capacitor Screws
82	CABINET HANDLE
83	LOWER CABINET FOAM PAD
84	WH12X26932 GE Capacitor
85	WH19X27454 GE Power Cord Assembly
86	PROTECTIVE COVER
87	OUTER HARNESS PROTECTIVE COVER
88	WH23X27456 GE Pump Cover
90	WH23X28134 GE Pump
91	WH41X26954 GE Tub Internal Drain Hose Clamp
92	WH41X26956 GE Internal Tub To Pump Drain H
93	WH41X26955 GE Internal Drain Hose Clamp
94	WH41X26957 GE Internal Drain Hose Assembly
95	WH41X26958 GE Internal Drain Hose Pump
96	INTERNAL DRAIN HOSE CLAMP TO PUMP OUTLE
97	WH41X26961 GE Drain Hose Adapter
98	WH41X26962 GE External Drain Hose Clamp
99	BASE
100	WH46X27459 GE Foot Wheel
101	WH46X26965 GE Leveling Legs
102	WH46X26964 GE Front Roller Assembly
103	WH02X27460 GE Caster Screw
104	WH41X34819 GE Unicoupler Washer
105	WH46X26966 GE Washer Access Panel
107	GROUND SCREW
