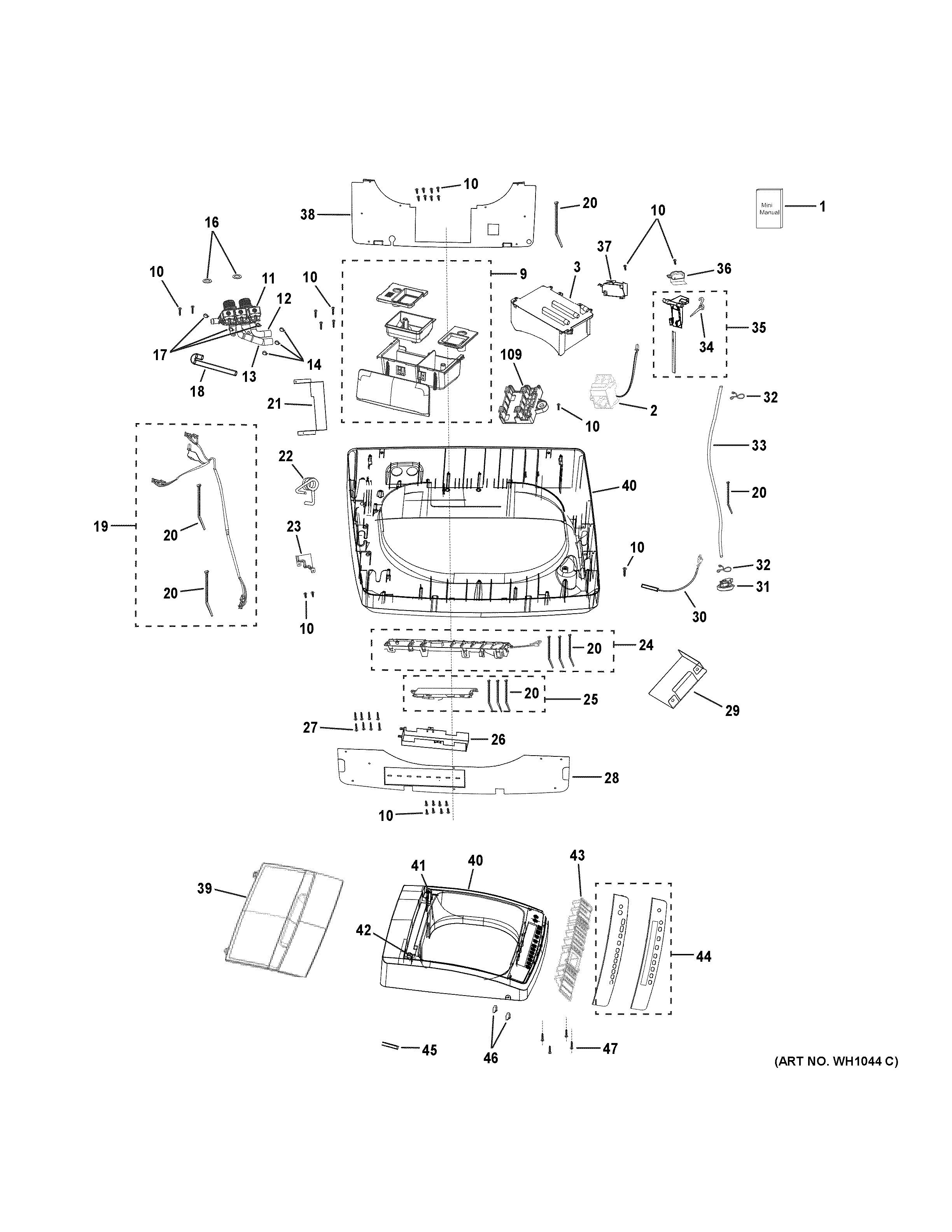

GNW128PSM0WW CONTROLS & LID

Products

Position	Product
1	PM MINI MANUAL
1	PM OWNERS MANUAL
2	RJ45 PORT
3	WH47X26967 GE Dispenser Drawer
9	WH47X26968 GE Dispenser Box
10	WH02X26247 GE Housing Screw ST4 12
11	WH13X26856 GE Inlet Water Valve Tube
12	WATER VALVE INLET TUBE HOT
13	WH13X27262 GE Water Valve Inlet Tube Combine
14	WATER VALVE INLET TUBE CLAMP
16	WH08X26187 GE Water Valve Absorption Gasket
17	WATER VALVE INLET TUBE CLAMP
18	WATER VALVE INLET TUBE COLD
19	WH19X27439 GE Main Harness
20	WIRE TIE
21	THERMOVOLT WATER VALVE
22	WH02X26860 GE Lid Spring
23	WH44X26861 GE Spring Cover
24	WH18X27441 GE User Interface Board
25	WH18X27442 GE Power Board
26	MAIN BOARD SHIELD METAL
27	WH02X26514 GE Screw ST4X14
28	WH44X27477 GE Splash Front Top Cover
29	THERMOVOLT PCB
30	WH44X27476 GE Lid Reed Switch
31	WH12X26869 GE Water Level Sensor
32	WH02X26870 GE Water Level Sensor Tube Clamp
33	WH41X26871 GE Water Level Sensor Tube
34	WH02X26900 GE Out of Balance Switch Lever
35	WH01X27444 GE Out of Balance Switch Lever
36	WH04X29267 GE Out of Balance Switch
37	WH12X26878 GE Lid Switch
38	TOP COVER SPLASH COVER REAR
39	WH44X26880 GE Lid
40	WH44X26846 GE Top Cover
41	WH44X27264 GE Left Hinge
42	WH44X27263 GE Right Door Hinge
43	WH42X26901 GE Light Pipe
44	WH42X27445 GE Front Panel Control
45	WH02X26903 GE Lid Hinge Clip
46	WH02X26902 GE Cover Screw
47	WH02X26189 GE Tapping Screw
109	HARNESS CONNECTOR HOLDER
