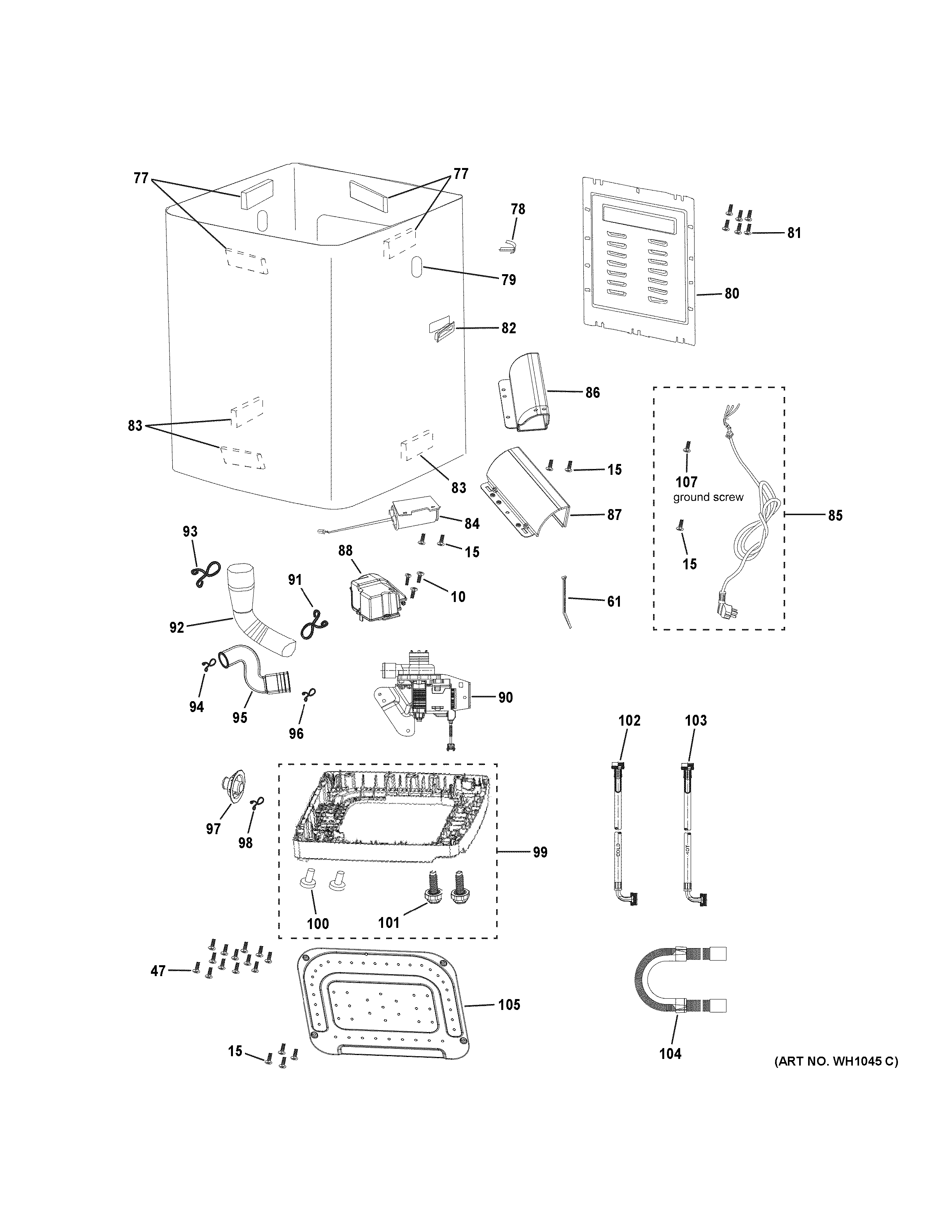

| 10 | WH02X26247 GE Housing Screw ST4 12 |
| 15 | TAPPING SCREW |
| 47 | WH02X26189 GE Tapping Screw |
| 61 | WH01X27678 GE Wire Tie |
| 77 | FELT PAD |
| 78 | HARNESS CLIP |
| 79 | HOOK |
| 80 | REAR ACCESS PANEL |
| 81 | WH02X26927 GE Capacitor Screws |
| 82 | CABINET HANDLE |
| 83 | LOWER CABINET FOAM PAD |
| 84 | WH12X26932 GE Capacitor |
| 85 | WH19X27454 GE Power Cord Assembly |
| 86 | PROTECTIVE COVER |
| 87 | OUTER HARNESS PROTECTIVE COVER |
| 88 | WH23X27456 GE Pump Cover |
| 90 | WH23X28134 GE Pump |
| 91 | WH41X26954 GE Tub Internal Drain Hose Clamp |
| 92 | WH41X26956 GE Internal Tub To Pump Drain H |
| 93 | WH41X26955 GE Internal Drain Hose Clamp |
| 94 | WH41X26957 GE Internal Drain Hose Assembly |
| 95 | WH41X26958 GE Internal Drain Hose Pump |
| 96 | INTERNAL DRAIN HOSE CLAMP TO PUMP OUTLE |
| 97 | WH41X27462 GE Drain Bushing |
| 98 | WH41X26962 GE External Drain Hose Clamp |
| 99 | WH46X26960 GE Base |
| 100 | WH46X27463 GE Fixed Foot |
| 101 | WH46X26965 GE Leveling Legs |
| 102 | WH41X27464 GE Inlet Fill Hose |
| 103 | WH41X27465 GE Fill Hose Inlet |
| 104 | WH41X26963 GE Drain Hose Assembly |
| 105 | WH46X26966 GE Washer Access Panel |
| 107 | GROUND SCREW |
