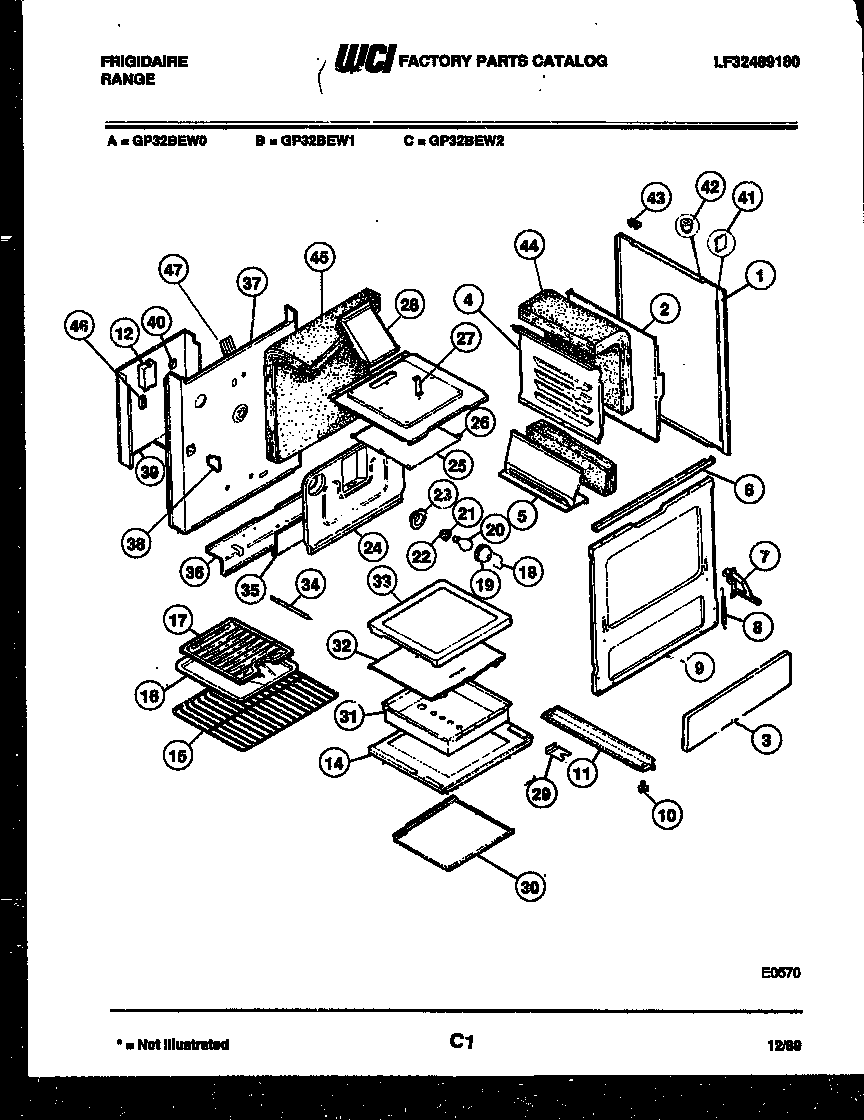

GP32BEL2 07 – BODY PARTS

Products

Position	Product
1	WCI 08014019
2	WCI 3131794
4	LINER-RIGHT SIDE
4A	WCI 3016534
5	WCI 3131820
6	SUPPORT CONTROL PNL
7A	318348801 Frigidaire Oven Left Side Door Hinge
7	WCI 3204670
8	SPRING (2)
9	WCI 3205905
10	WCI 3051080
11	BASE RAIL
12	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
14	LINING-OVEN BOTTOM
15	RACK-OVEN
16	WCI 3016973
17	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
18	RETAINER – LENS
19	5304524341 Frigidaire Lens
20	316538904 Frigidaire Oven Lamp Light
21	SOCKET HOUSING
22	316116400 Frigidaire Oven Light Socket
23	WCI 3051511
24	LINER-OVEN BACK
25	WCI 08011509
26	WCI 3131802
27	WCI 08011516
28	VENT BOX ASSEMBLY
29	ANTI-TIP KIT
30	SHIELD
31	WCI 08068046
32	WCI 08068032
33	WCI 3016975
34	WCI 3201170
35	SUPPORT, CONTROL VALVE
36	WCI 3131831
37	WCI 3131833
38	SUPPORT-REAR OVN (2)
39	WCI 08068038
40	WCI 3131839
41	CLIP,BODYSIDE
42	GROMMET
43	GROMMET MAIN TOP
44	WCI 3131795
45	WCI 3131840
46	WCI 08007985
47	CHANNEL – MAIN WIRE
