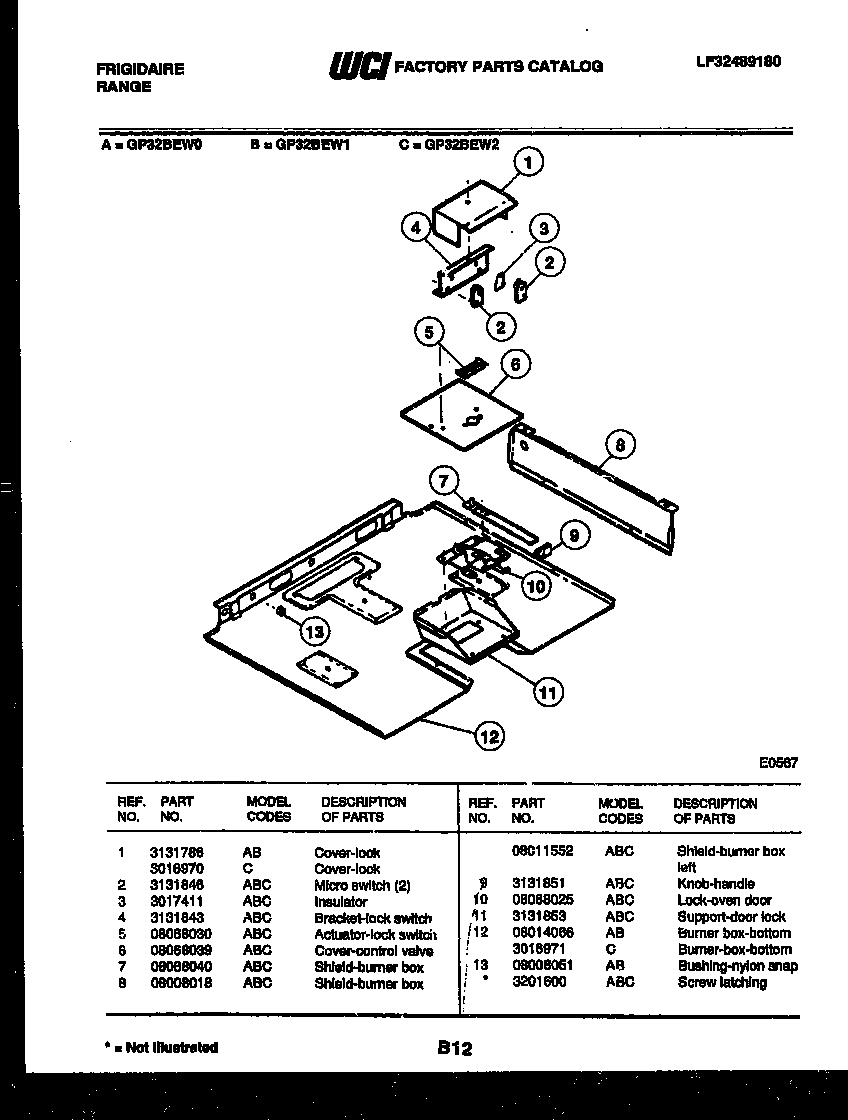

GP32BEW0 05 – BURNER BOX PARTS

Written by

Products

Position	Product
*23894	SCREW, MAIN TOP (NOT ILLUSTRATED)
1	COVER-LOCK
2	WCI 3131846
3	WCI 3017411
4	WCI 3131843
5	WCI 08068030
6	SUPPORT, CONTROL VALVE
7	WCI 08068040
8	SHIELD – HEAT RH
8	WCI 08011552
9	KNOB HANDLE
10	WCI 08068025
11	WCI 3131853
12	WCI 08014066
13	WCI 08008051
