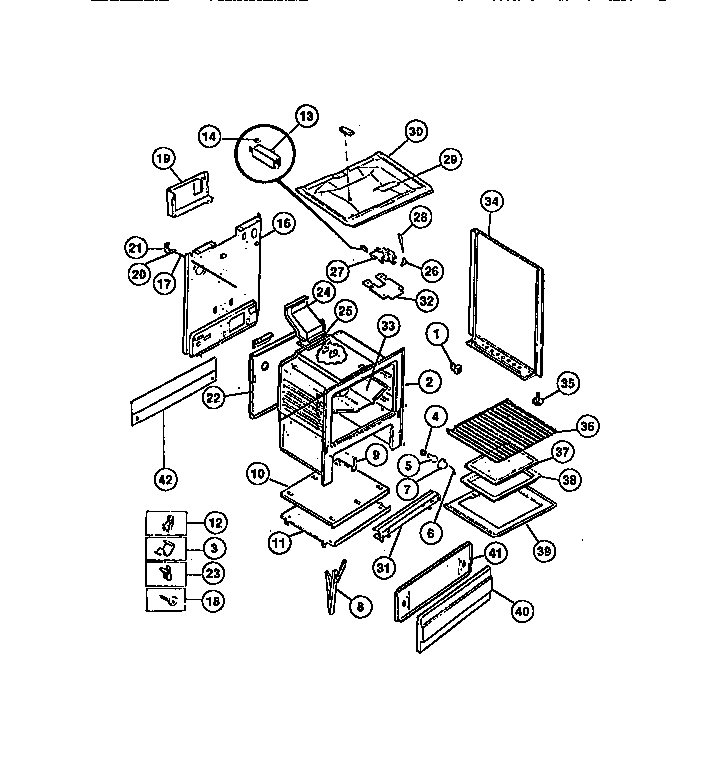

GP32BNL2 05 – CAVITY & PANELS

Products

PositionProduct
1SPACER-BODYSIDE, (8)
2WIRING HARNESSES ARE NOT AVAILABLE FOR THIS MODEL
35304515659 Frigidaire Oven Power Cord
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6WIRE, GLASS RETAINER
75304524341 Frigidaire Lens
8CHAN-DOOR HINGE (2)
9WCI 3131570
10WCI 3131951
11AWCI 08067992
11WCI 3131313
125303284616 Frigidaire Range Bulb Clip Thermostat
13WCI 3131672
14FSTNR-PUSH ON
14ASTUD SPACER (2) (NON-ILLUSTRATED)
16WCI 3203082
17WCI 5303209316
18316282700 Frigidaire Oven Screw
193131903 Frigidaire Door/Drawer Bumper
20SWITCH-OVEN LITE DOOR
21WCI 5303131289
22WCI 08067991
23CLIP-WIRE
24WCI 3131931
25BWCI 08013188
25316542102 Frigidaire Flue Gasket
25ASHIELD-LATCH (NON-ILLUSTRATED)
26WCI 3203218
27WCI 5303015453
28WCI 5303131357
29WCI 3131101
30WCI 3011597
31SHIELD-FRONT
32SHIELD-LATCH
33WCI 3200836
34APNL-BODYSIDE RH-ALMOND
34PNL-BODYSIDE LH-ALMOND
35SCREW-LEVELING
36316067902 Frigidaire Oven Rack
37WCI 5303131356
38PAN-BROILER
39BTTM-OVEN
39A316064600 Frigidaire Oven Support
39E08067973 Frigidaire 0 Insulation
39CWCI 08067961
39FINSULATION, OVEN TOP
39BINSULATION, OVEN WRAPPER
39DINSULATION OVEN BACK (NON-ILLUSTRATED)
39GWCI 08068018
40ASHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
40PNL – DRAWER (ALMD)
41EWCI 3034056
41CWCI 3200612
41ASHIELD-OVN TOP
41BWCI 3131590
41DALUM-FOIL-MUST BE USED WHEN REPLACING BODYSIDE
41SHIELD-PNL
42WCI 3131252
42ASLEEVE INSULATOR (NON-ILLUSTRATED)
