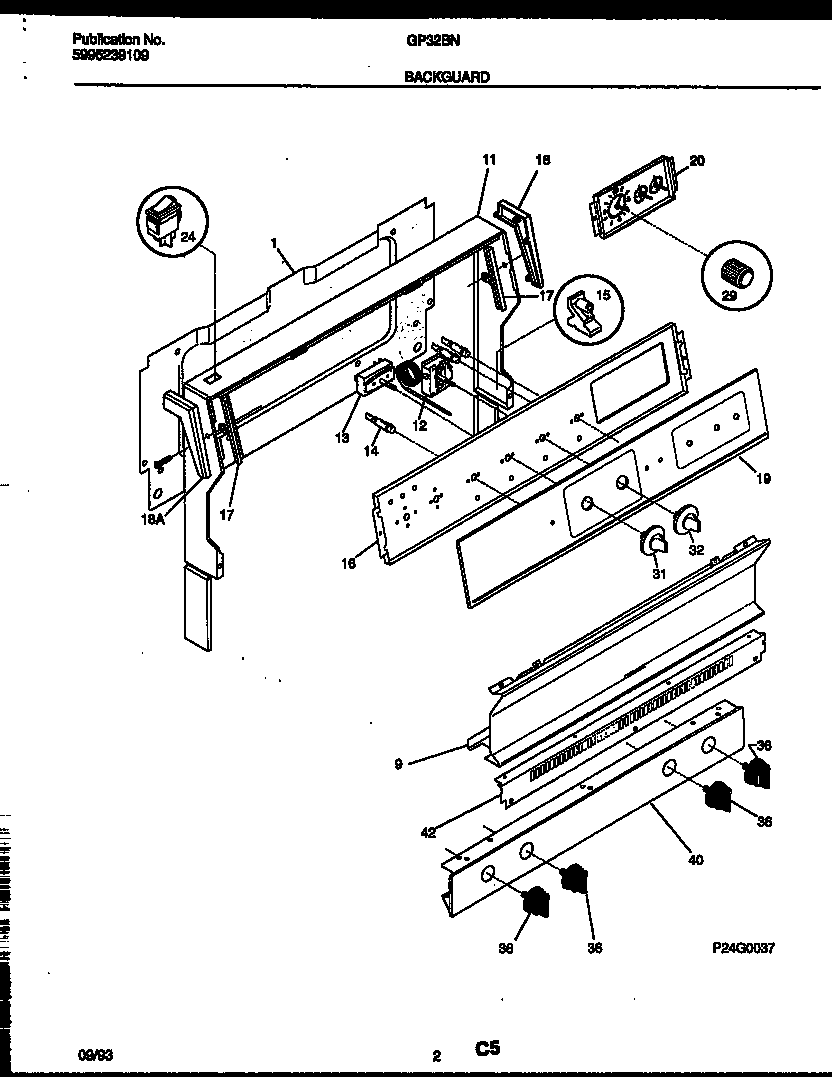

GP32BNL7 02 – BACKGUARD

GP32BNL7 02 – BACKGUARD

Written by

in

GP32BNL7 02 – BACKGUARD

Products

PositionProduct
*85959WCI 5303272555
*85959WCI 5308010401
1SHIELD-BACKGUARD, REAR WALL
9WCI 3131239
11WCI 3131238
12THERMOSTAT-BAKE
13SWITCH SELECTOR 5 POS
14AINDICATOR LIGHT-LOCK (1)
14WCI 5308037896
15SUPPORT-BACKGUARD,(2)
16WCI 316042601
17TRIM-GLASS RTNR. LH & RH
18SHIELD-REAR WALL
18AWCI 3131229
19WCI 5303210879
20CLOCK
29KNOB – CLOCK (3) – GREY
31KNOB-TOP ELEMENTS (3)
32KNOB-TOP ELE DUAL (1)
36WCI 5303210280
40WCI 5303210895
42WCI 3131241
