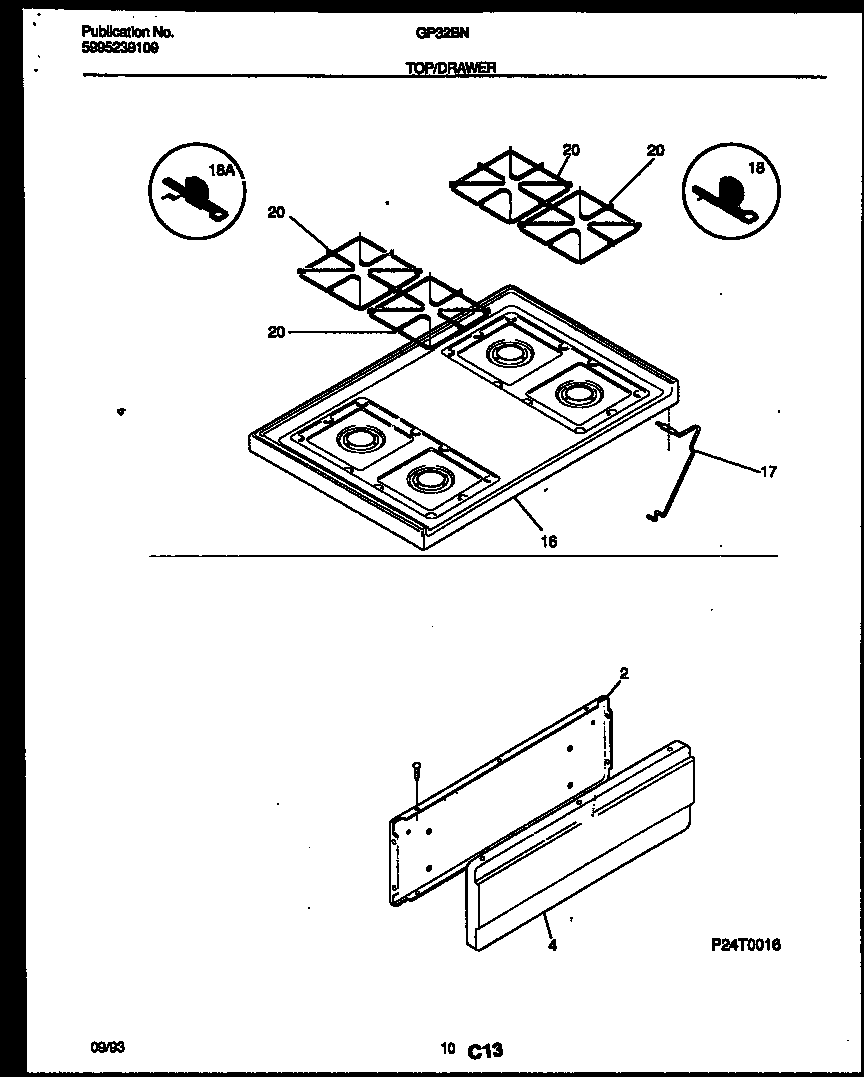

GP32BNL7 06 – COOKTOP AND DRAWER PARTS

Written by

Products

Position	Product
*85972	ALUM-FOIL-MUST BE USED WHEN REPLACING BODYSIDE
*85972	WCI 5303281584
2	SHIELD-PNL
4	PNL – DRAWER (ALMD)
4B	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4A	WCI 3200612
16	MAIN TOP, ALMOND
17	ROD-MAIN SUPPORT (2)
18A	BRACKET-HINGE,MAIN TOP LH
18	BRACKET-HINGE,MAIN TOP RH
20	WCI 5303272852
