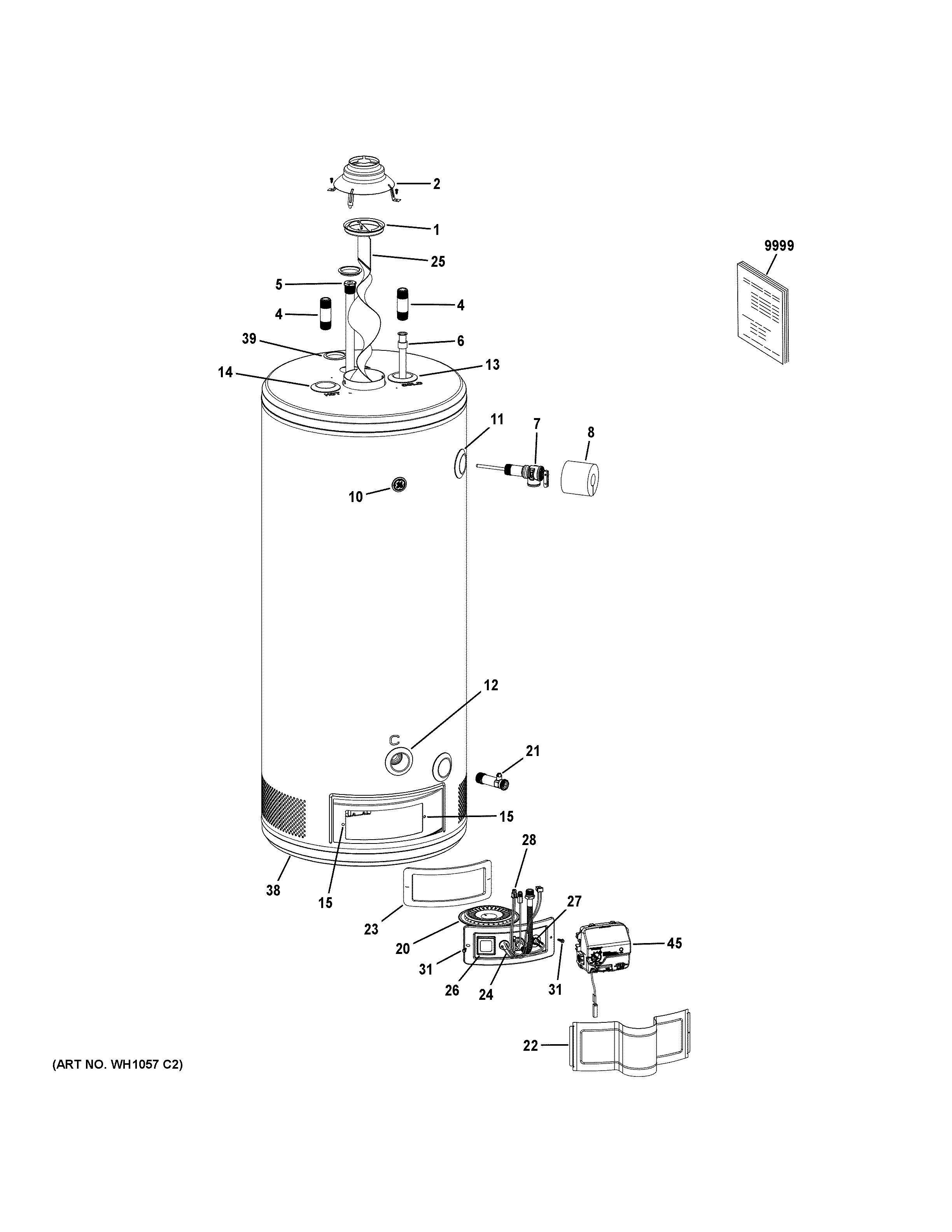

GP50T12BXR01 WATER HEATER ASSEMBLY

Products

Position	Product
1	FLUE COLLAR
2	VENT HOOD
4	INLET/OUTLET PIPE
5	ROD ANODE - MAG 46.75"
6	DIP TUBE (22"L)
7	T-P VALVE
8	T-P VALVE INSULATION
10	WR04X10181 GE Refrigerator Dishwasher Nameplate Badge
11	FOAM DAM
12	GAS VALVE FOAM DAM
13	INLET FOAM DAM (BLUE)
14	OUTLET FOAM DAM (RED)
15	J-CLIP
20	BURNER ASM (18.5 - 50- ATM - LP)
21	VALVE DRAIN BRASS
22	WS02X22761 GE Outer Door
23	BURNER DOOR GASKET
24	PILOT ASM - LONG LP
25	BAFFLE
26	SIGHT GLASS
27	WS21X23195 GE Door Thermistor
28	HARNESS THERMISTOR
31	SCR 8-18 AB UIHWH 3/4 SEMS SMS
38	COVER BOTTOM
39	ANODE FILL PLUG
45	WS52X23162 GE Gas Control Valve Assembly (ATM - LP)
9999	PM OWNERS AND INSTALL
