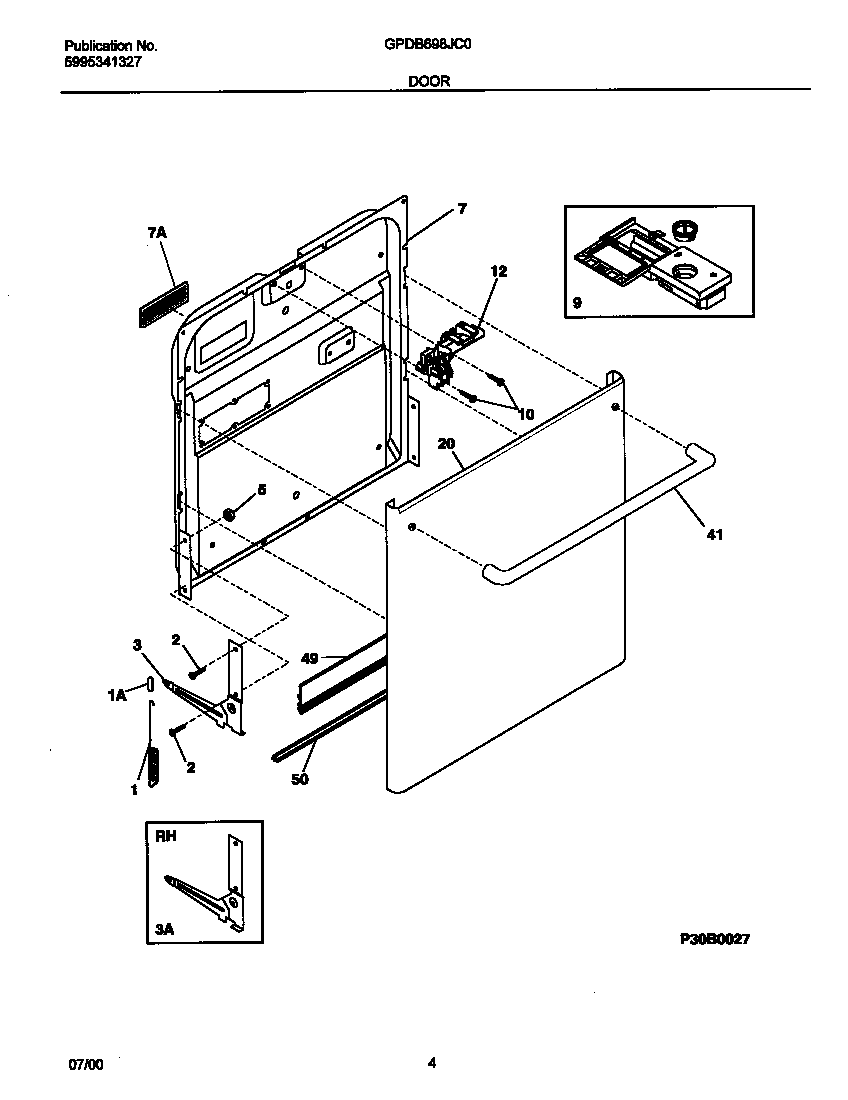

GPDB698JC0 03 – DOOR

Written by

Products

Position	Product
*28047	154294701 Frigidaire Dishwasher Screw
*28046	PIN-ARM (NOT ILLUSTRATED)
*28050	WCI 154227807
*28052	INSULATION,DOOR
*28053	WCI 154320301
*28049	WCI 154213801
*28048	Screw,shoulder
*28051	WCI 154227808
1	154325201 Frigidaire Linkage Spring
1	154430601 Frigidaire Dishwasher Door Spring
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3	5304409912 Frigidaire Dishwasher P-1 Right Hinge
5	5303013272 Frigidaire Oven Nut
7	WCI 154299002
7	WCI 154226601
9	154574401 Frigidaire Dishwasher Dispenser
10	154103702 Frigidaire Dishwasher Screw
12	5304442175 Frigidaire Black Door Latch Assembly
20	WCI 154359104
41	WCI 154207004
49	809006501 Frigidaire Bottom Seal/Gasket Door
50	WCI 154211401
