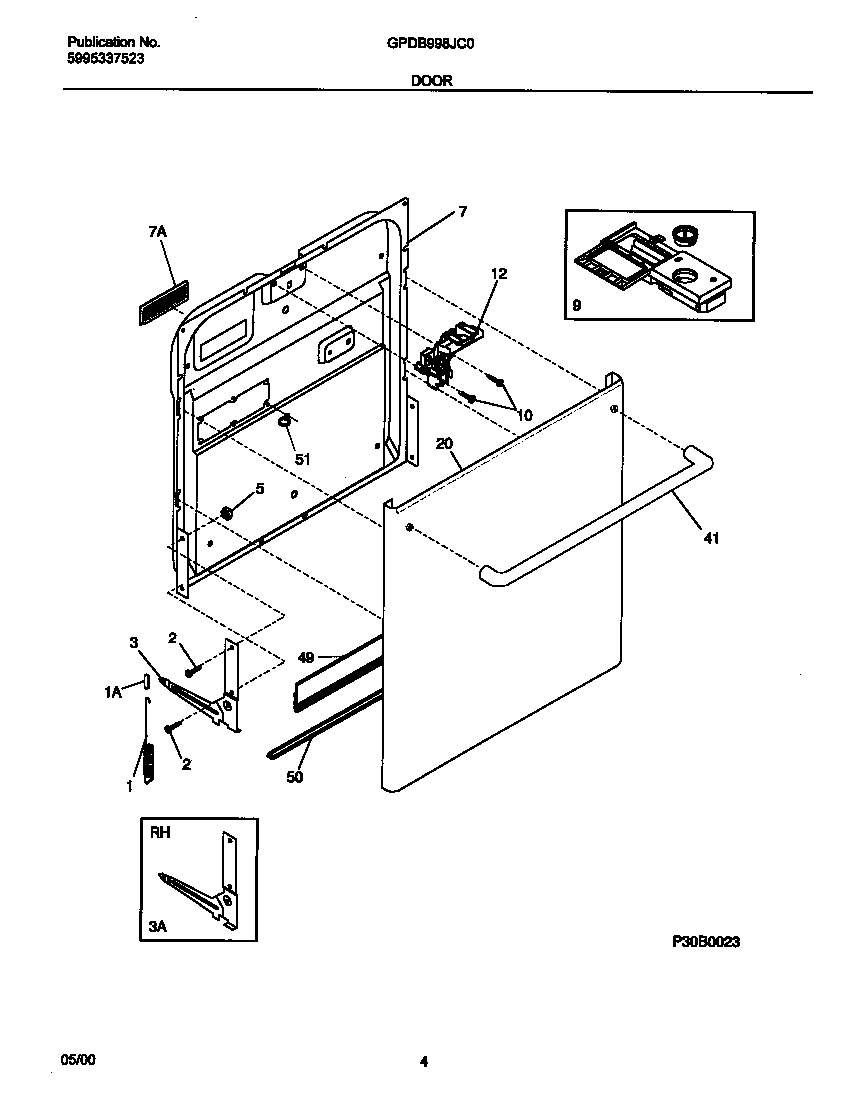

GPDB998JC0 03 – DOOR

GPDB998JC0 03 – DOOR

Written by

in

GPDB998JC0 03 – DOOR

Products

PositionProduct
*80085Screw,shoulder
*80086WCI 154213801
*80088WCI 154320301
*80087INSULATION,DOOR
*80084PIN-ARM (NOT ILLUSTRATED)
1154430601 Frigidaire Dishwasher Door Spring
1154325201 Frigidaire Linkage Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
35304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154226601
7WCI 154299002
9WCI 154230102
10154103702 Frigidaire Dishwasher Screw
125304442175 Frigidaire Black Door Latch Assembly
20WCI 154359004
41WCI 154207004
49809006501 Frigidaire Bottom Seal/Gasket Door
50WCI 154211401
