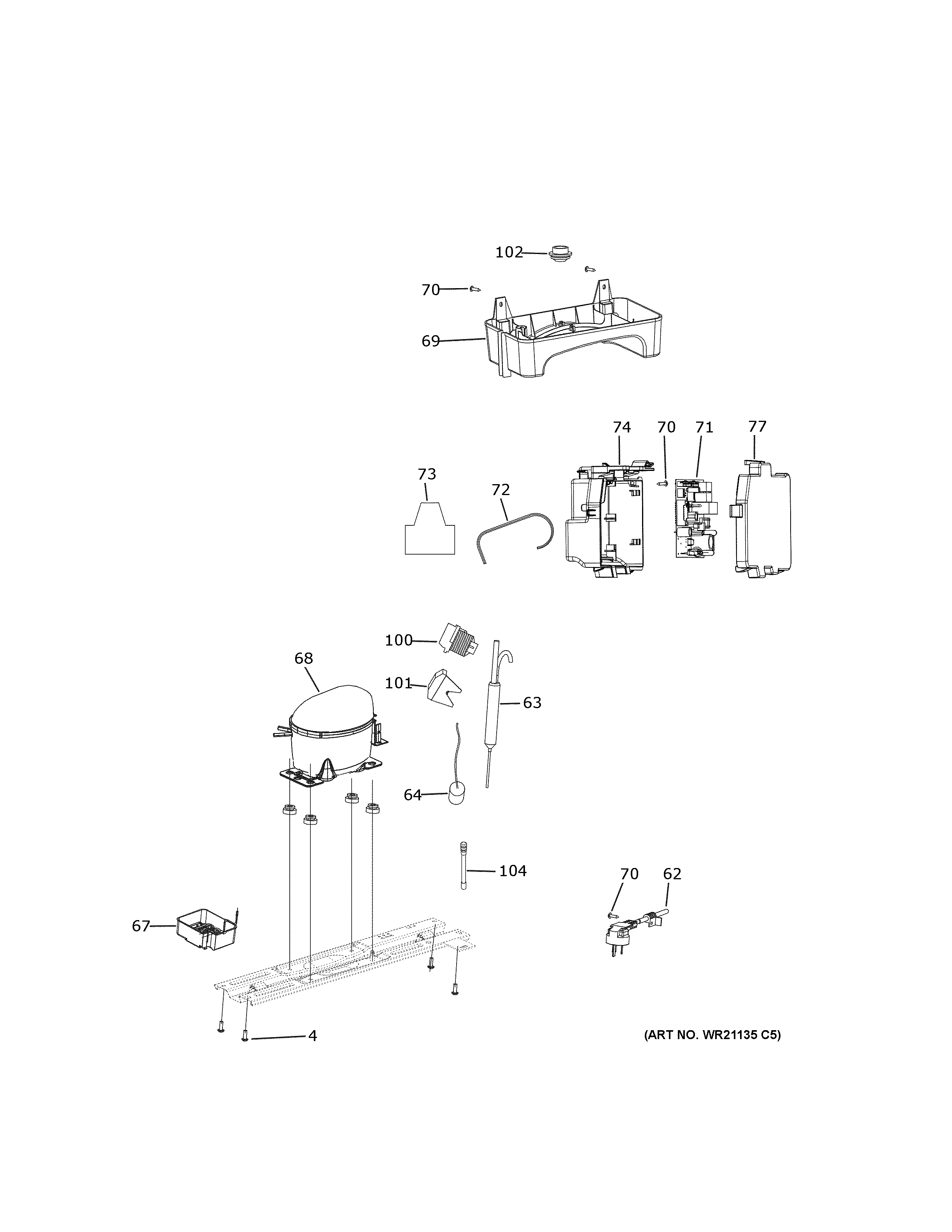

GPE12FGKEBB MACHINE COMPARTMENT

GPE12FGKEBB MACHINE COMPARTMENT

Written by

in

GPE12FGKEBB MACHINE COMPARTMENT

Products

PositionProduct
4WR01X20263 GE Refrigerator Screw
62POWER CORD
63WR87X30875 GE Refrigerator R600 Dryer with Red Cap
64WR55X31704 GE Capacitor
67WR87X31707 GE Refrigerator Auxiliary Condenser
68WR87X31702 GE Refrigerator Compressor
69WR02X26260 GE Refrigerator Drain Tray
70WR01X20385 GE Refrigerator Screw
71MAIN CONTROL BOARD
72WR87X20387 GE Suction Tube
73I/M CONNECTOR CVR
74MAIN CONTROL BOARD HOUSING
77MAIN CONTROL BOARD COVER
100WR55X31710 GE Refrigerator PTC Starter
101WR09X31703 GE Overload Protector
102DRAIN CHECK VALVE
104WR87X30876 GE Refrigerator R600 Process Valve with Red Cap
