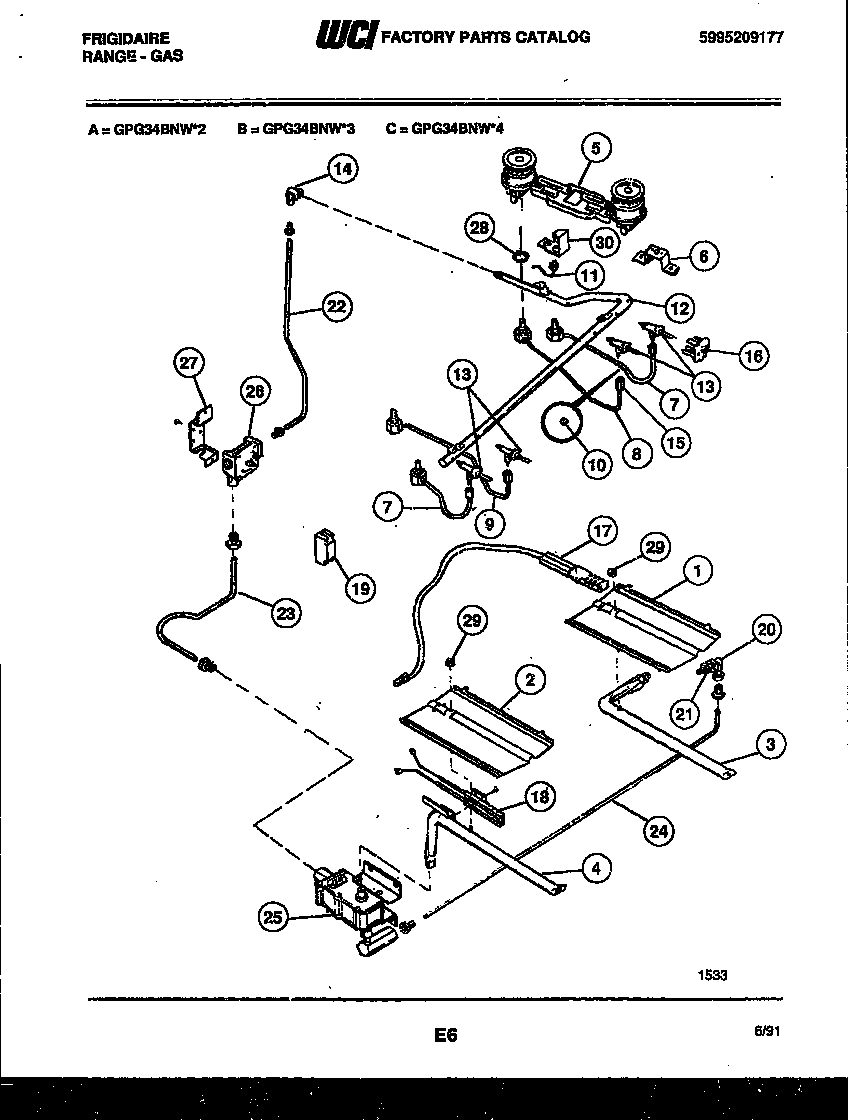

GPG34BNL4 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*49459316048200 Frigidaire Oven Screw
1WCI 5303210379
2BAFFLE-OVN BURNER
3WCI 08067935
4WCI 3131290
5BURNER-TOP-DOUBLE
6BRACKET BURNER MTG
7ATUBE-BURNER, RF
7BTUBE-BURNER, LF
8TUBE-BURNER, RR
9TUBE-BURNER, LR
11IGNITER-TOP BURNER, BASE, (2)
12WCI 5303271375
16316035200 Frigidaire Ignition Switch
175303935068 Frigidaire Flat Igniter
185303935066 Frigidaire Oven Flat Igniter 17" Leads
195303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
20WCI 08067979
21NUT COMPRESSN (4)
22TUBE-ALUM 3/8 REG/MANIFOLD PIPE
23TUBE-VALVE TO REGUL
24TUBE-VALVE TO MIXER ELBOW
255303208499 Frigidaire Safety Gas Valve
265303935125 Frigidaire Pressure Regulator
27316091600 Frigidaire Oven Bracket
28NUT, SPECIAL
295303013272 Frigidaire Oven Nut
303016993 Frigidaire Oven Retainer
