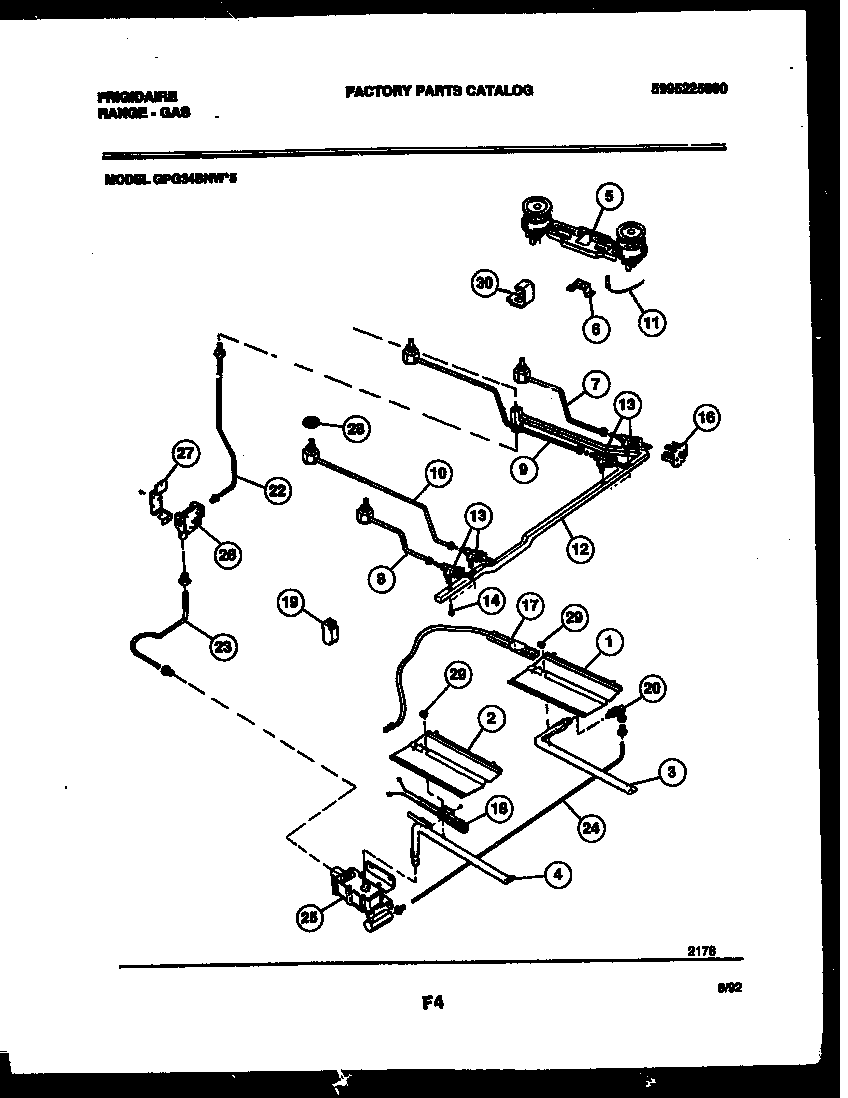

GPG34BNW5 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1WCI 5303210379
2BAFFLE-OVN BURNER
3WCI 08067935
4WCI 3131290
5BURNER-TOP-DOUBLE
6BRACKET BURNER MTG
7WCI 5303283665
8WCI 5303283666
9WCI 5303283667
10WCI 5303283668
11IGNITER-TOP BURNER, BASE, (2)
12WCI 5303271375
13VALVE-TOP BURNER, 3 POSITION, (4), W/SCREW
16SWITCH-IGNITER, (4)
175303935068 Frigidaire Flat Igniter
185303935066 Frigidaire Oven Flat Igniter 17" Leads
195303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
20WCI 08067979
22TUBE-ALUM 3/8 REG/MANIFOLD PIPE
23TUBE-VALVE TO REGUL
24TUBE-VALVE TO MIXER ELBOW
255303208499 Frigidaire Safety Gas Valve
265303935125 Frigidaire Pressure Regulator
27316091600 Frigidaire Oven Bracket
28NUT, SPECIAL
295303013272 Frigidaire Oven Nut
303016993 Frigidaire Oven Retainer
