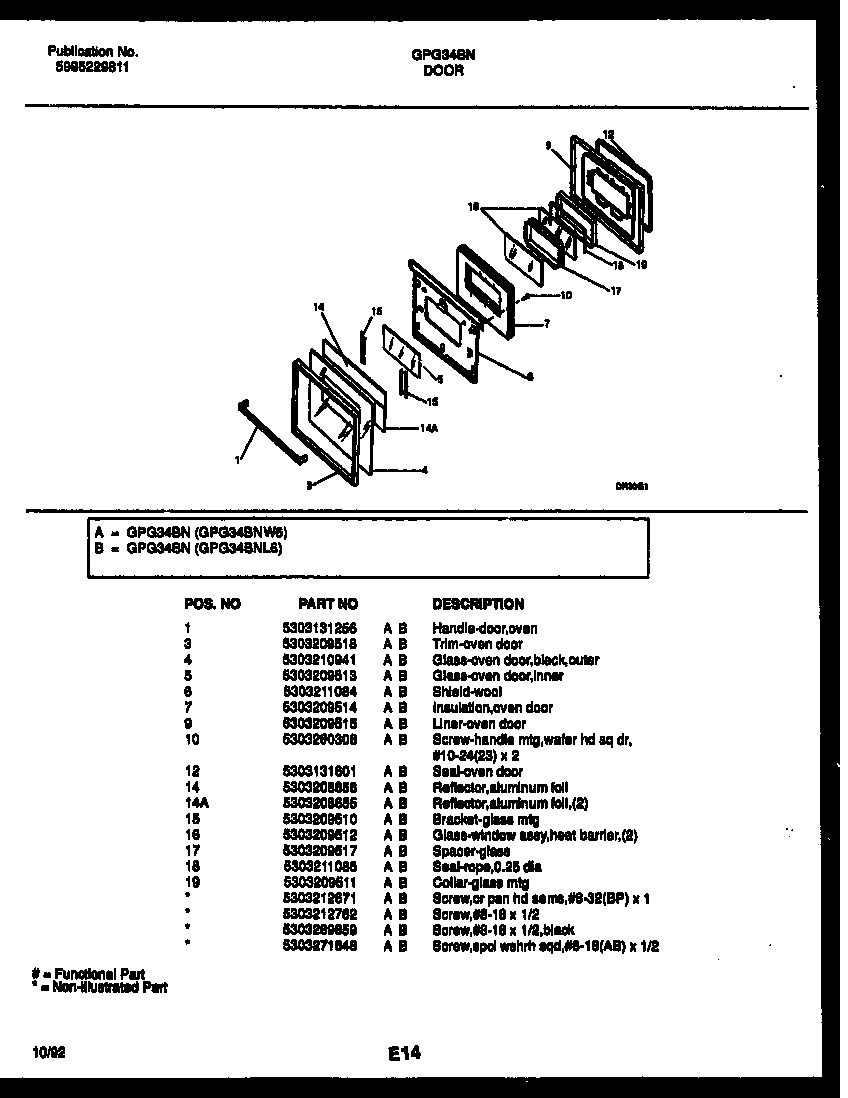

GPG34BNW6 07 – DOOR PARTS

Products

Position	Product
*68120	SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*68120	WCI 5303269859
*68120	5303300265 Frigidaire Oven Screw
*68120	5303271648 Frigidaire Oven Screw
1	HANDLE
3	WCI 5303209518
4	GLASS-FRONT VISULITE
5	GLASS-OVEN DOOR, INNER
6	SHIELD-INSULATION
7	INSULATION-OVEN DOOR
9	WCI 5303209515
10	WCI 5303280308
12	5303131601 Frigidaire Oven Seal
14A	5303208655 Frigidaire Reflector Assembly
14	REFLECTOR, ALUMINUM FOIL
15	BRACKET-GLASS MTG
16	GLASS-OVEN DOOR, HEAT BARRIER, (2)
17	WCI 5303209517
18	SEAL-ROPE, 0.25 DIA
19	WCI 5303209511
