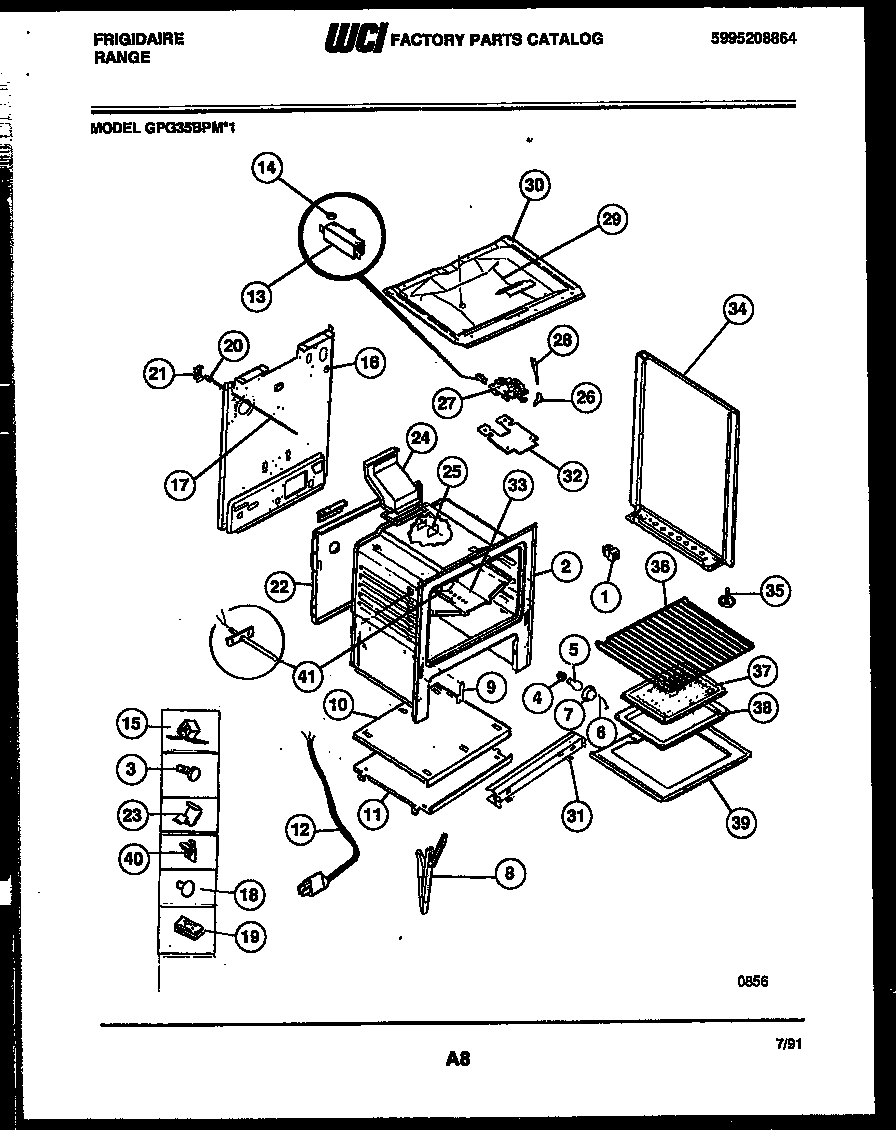

GPG35BPM1 07 – BODY PARTS

GPG35BPM1 07 – BODY PARTS

Written by

in

GPG35BPM1 07 – BODY PARTS

Products

PositionProduct
*47617WCI 19100200014
*47617WCI 08068018
*47617WCI 3131252
*47617ANTI-TIP KIT (NOT ILLUSTRATED)
1SPACER-BODYSIDE, (8)
3316282700 Frigidaire Oven Screw
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6WIRE, GLASS RETAINER
75304524341 Frigidaire Lens
8WCI 316007002
9WCI 3131570
10WCI 5303271048
11WCI 3131313
11AWCI 08067992
125304515659 Frigidaire Oven Power Cord
13SWITCH-LATCH
14ASTUD SPACER (2) (NON-ILLUSTRATED)
14FSTNR-PUSH ON
153205821 Frigidaire Clip
16WCI 3203082
17WCI 5303209316
183131903 Frigidaire Door/Drawer Bumper
193203010 Frigidaire Clip
20SWITCH-OVEN LITE DOOR
21WCI 5303131289
22WCI 08067991
23CLIP-WIRE
24WCI 3131931
25316542102 Frigidaire Flue Gasket
25ASHIELD-LATCH (NON-ILLUSTRATED)
25BWCI 08013188
26WCI 3203218
27WCI 5303015453
28WCI 5303131357
29WCI 08067757
30WCI 5303269487
31SHIELD-FRONT
32SHIELD-LATCH
33WCI 3200836
33ASHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
34AWCI 5303269544
34WCI 5303269546
35SCREW-LEVELING
36316067902 Frigidaire Oven Rack
37WCI 5303131356
38PAN-BROILER
39EINSULATION, OVEN WRAPPER
39FINSULATION, OVEN TOP
39CINSULATION OVEN BACK (NON-ILLUSTRATED)
39BWCI 08067961
39BTTM-OVEN
39A316064600 Frigidaire Oven Support
39D08067973 Frigidaire 0 Insulation
40ASHIELD-OVN TOP
40BWCI 5303269502
403051162 Frigidaire Oven Range Front Broiler Drawer Glide
415304497424 Frigidaire Oven Temperature Sensor Probe Kit
