GPG38BCW0 31 – BURNERS, IGNITORS, CONTROLS – Aparts

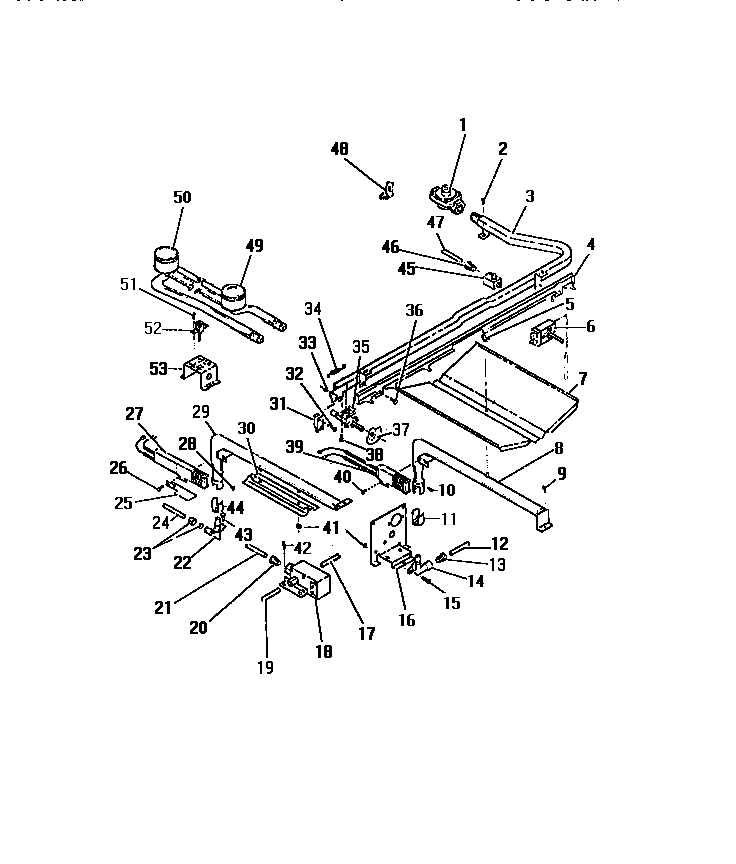

GPG38BCW0 31 – BURNERS, IGNITORS, CONTROLS

Products

Position	Product
1	WCI 8007974
3	WCI 8013906
4	WCI 8014021
5	WCI 8007979
6	WCI 8011492
7	WCI 8007980
8	WCI 8011443
13	WCI 8007983
14	WCI 8011471
15	WCI 8007965
16	WCI 8007987
18	WCI 8011503
19	WCI 8011500
20	WCI 8011469
22	MIXER, PIN
23	WCI 8011467
24	WCI 8011501
25	WCI 8011555
27	WCI 8011454
28	WCI 8008011
29	WCI 8011444
30	WCI 8011508
31	SWITCH-MICRO
32	WCI 8008000
33	WCI 8007991
34	WCI 8013921
35	VALVE GRIDDLE
37	CAM, GRIDDLE VALVE (4)
38	SCREW (2)
39	WCI 8013883
41	WCI 8007960
42	WCI 8007916
43	WCI 8007989
44	WCI 8008010
45	SHUT OFF VALVE
46	WCI 8008363
47	WCI 8013936
48	CLIP, CAPILLARY TUBE
49	WCI 8013852
50	WCI 8013853
51	WCI 8007905
52	IGNITOR, TOP BURNER, R.H.
53	WCI 8014002
