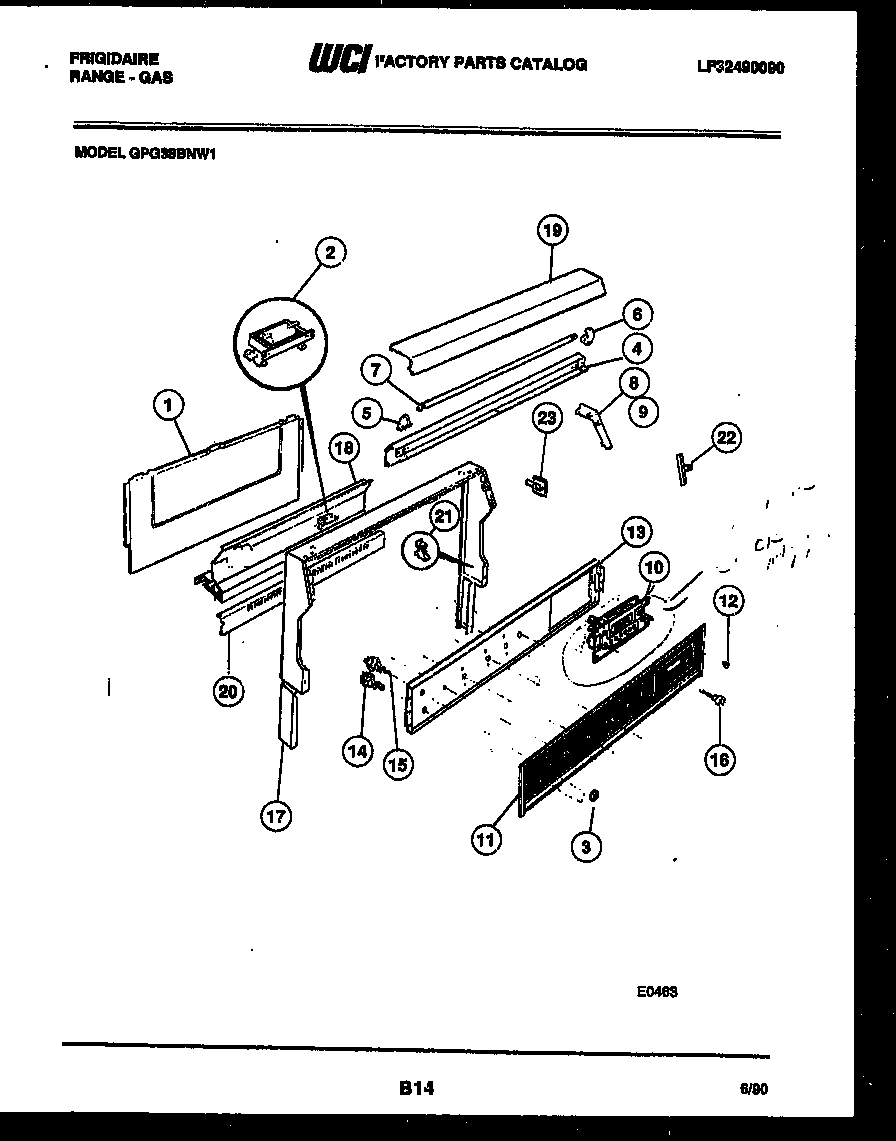

GPG38BNW1 02 – BACKGUARD

GPG38BNW1 02 – BACKGUARD

Written by

in

GPG38BNW1 02 – BACKGUARD

Products

PositionProduct
*25691WCI 3018820
*25691RIVET-COVER (8)
1SHIELD-BACKGUARD,REAR WALL
2WCI 5303051115
3WCI 5303011507
4WCI 3131277
5RECEPTACLE-FLU LT LH
6RECEPTACLE-FLU LT RH
7BULB-FLUOR
8WCI 3131267
9WCI 3131268
10WCI 3204643
11WCI 5303210950
12KNOB – CLOCK-GRAY
13PLATE – INST MOUNTING
14WCI 5303200479
15SWITCH FL LIGHT
16BUTTON-CLOCK GRAY (8)
17WCI 3131280
18WCI 5303210934
19WCI 5303210968
20WCI 3131241
21SUPPORT-BACKGUARD,(2)
22TRIM-GLASS RTNR. LH & RH
23SPACER-FL LT MTG
