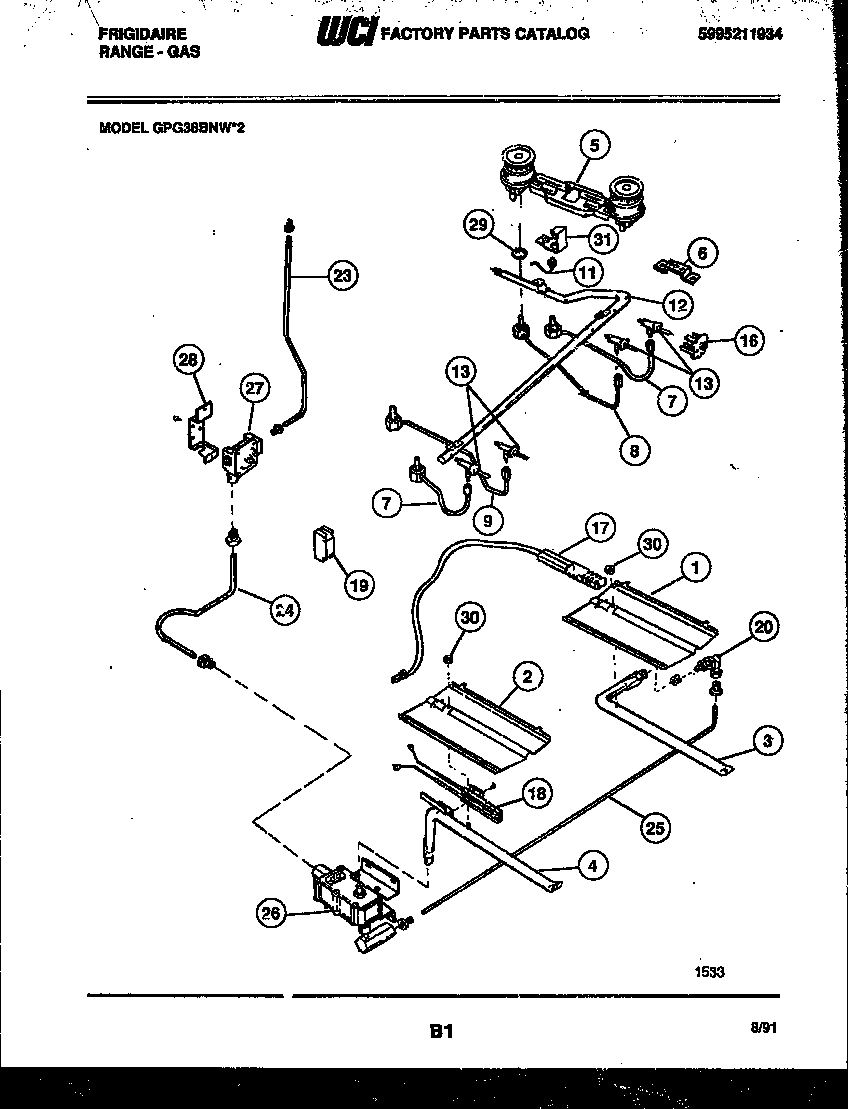

GPG38BNW2 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1WCI 5303210379
2BAFFLE-OVN BURNER
3WCI 08067935
4WCI 3131290
5BURNER-TOP-DOUBLE
6BRACKET BURNER MTG
7TUBE-BURNER, RF
7ATUBE-BURNER, LF
8TUBE-BURNER, RR
9TUBE-BURNER, LR
11IGNITER-TOP BURNER, BASE, (2)
12WCI 5303271375
13VALVE TOP-3 POS
16316035200 Frigidaire Ignition Switch
175303935068 Frigidaire Flat Igniter
185303935066 Frigidaire Oven Flat Igniter 17" Leads
195303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
20WCI 5303208640
23TUBE-ALUM 3/8 REG/MANIFOLD PIPE
24TUBE-VALVE TO REGUL
25TUBE-VALVE TO MIXER ELBOW
265303208499 Frigidaire Safety Gas Valve
275303935125 Frigidaire Pressure Regulator
28316091600 Frigidaire Oven Bracket
29NUT, SPECIAL
305303013272 Frigidaire Oven Nut
313016993 Frigidaire Oven Retainer
