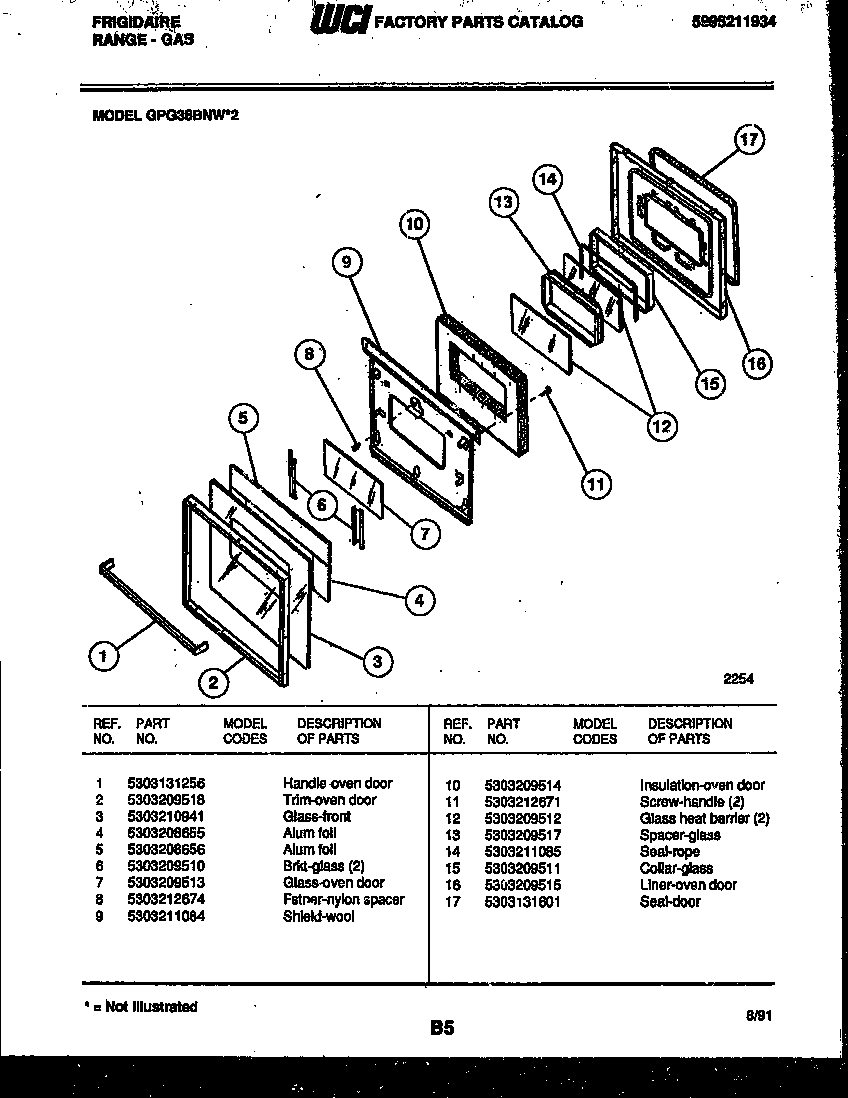

GPG38BNW2 07 – DOOR PARTS

Products

Position	Product
1	HANDLE
2	WCI 5303209518
3	GLASS-FRONT VISULITE
4	5303208655 Frigidaire Reflector Assembly
5	REFLECTOR, ALUMINUM FOIL
6	BRACKET-GLASS MTG
7	GLASS-OVEN DOOR, INNER
8	FSTNR-NYLON SPACER (NON-ILLUSTRATED)
9	SHIELD-INSULATION
10	INSULATION-OVEN DOOR
11	SCREW, CR PAN HD SEMS, 8-32BP X 1.00
12	GLASS-OVEN DOOR, HEAT BARRIER, (2)
13	WCI 5303209517
14	SEAL-ROPE, 0.25 DIA
15	WCI 5303209511
16	WCI 5303209515
17	5303131601 Frigidaire Oven Seal
