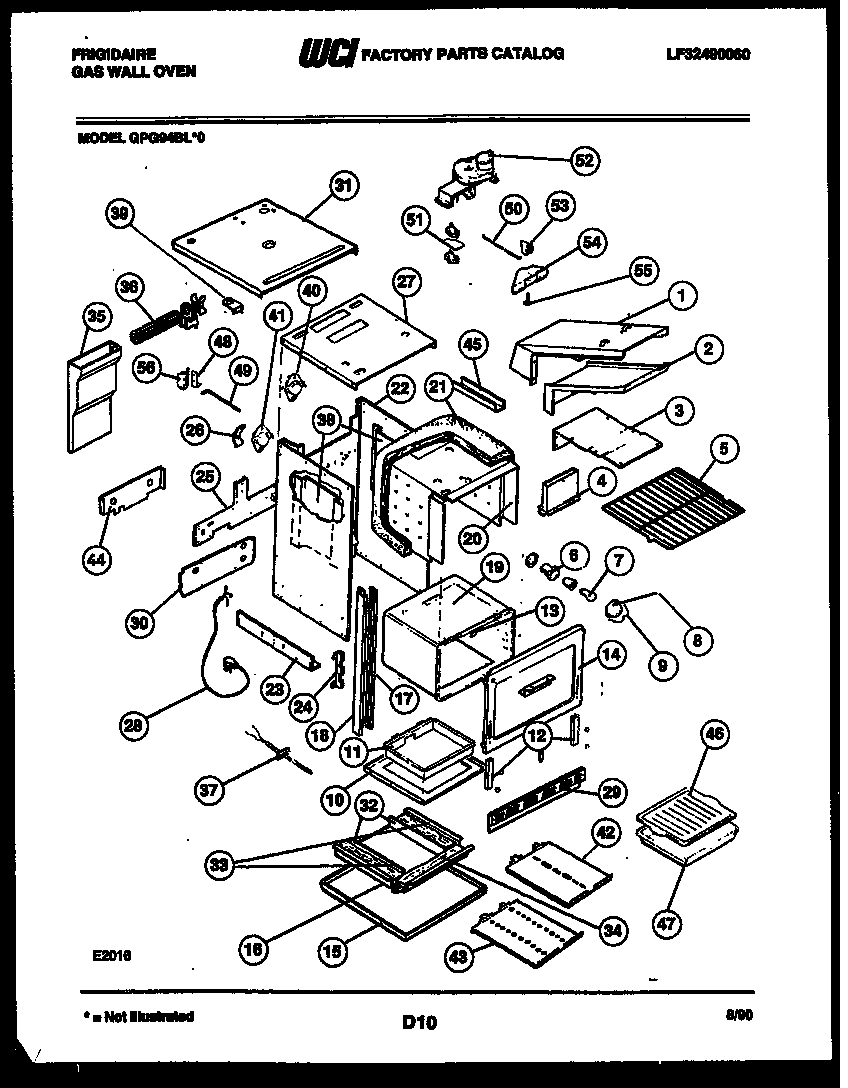

GPG94BL0 06 – BODY PARTS

Products

Position	Product
1	SHIELD-FLUE
2	WCI 3203725
3	SHIELD – FLUE BOTTOM
4	ADAPTER-FLUE
5	WCI 3202442
6	316116400 Frigidaire Oven Light Socket
7	316538904 Frigidaire Oven Lamp Light
8	5304524341 Frigidaire Lens
9	WCI 3016244
10	BOTTOM – OVEN
11	WCI 530321700
12	WCI 3203688
13	WCI 3202082
14	WCI 3202449
15	WCI 3202447
16	WCI 5303210706
17A	TRIM-SIDE, INNER, RH
17	TRIM-SIDE, INNER, LH
18	WCI 3204414
19	WCI 5303210715
20	SHIELD-OVEN, TOP & SIDES
21	INSULATION, OVEN BACK
21	WCI 5303210708
21	WCI 5303210709
21	INSULATION, TOP & SIDES
21	INSULATION, OVEN TOP
22	WRAPPER, BACK & SIDES
23	SUPPORT-HEIGHT ADJUSTMENT (2)
24	WCI 3201631
25	WCI 5303210721
26	WCI 3204114
27	WCI 5303210683
28	WCI 3203699
29	WCI 5303210640
30	COVER-ACCESS
31	WRAPPER, TOP
32	ANGLE-BURNER BOX
33	INSULATION-BOTTOM, SIDES, (2)
34	INSULATION-BOTTOM, TOP
35	DUCT-BLOWER
36	MOTOR-BLOWER
37	PROBE-OVEN TEMP
38	SHIELD-BODYSIDE
39	WCI 5303210842
40	WCI 5303210645
41	SWITCH-THERMO
42	SHIELD-INSULATION
43	SHIELD-HEAT, LOWER
44	WCI 5303210845
45	SHIELD-INSULATION
46	WCI 5303219066
47	WCI 5303207208
48	WCI 3202384
49	WCI 3202077
50	WCI 3016241
51	BRACKET-MOTOR MTG
52	WCI 5303210725
53	WCI 3202387
54	HOUSING-DOOR LATCH
55D	WCI 008T465F01
55	AXLE – HINGE (2)
55A	WCI 3201632
55C	WCI 3019069
55E	SHIELD, BURNER BOX
55B	INSULATION, OVEN BOTTOM
56	WCI 5303211059
