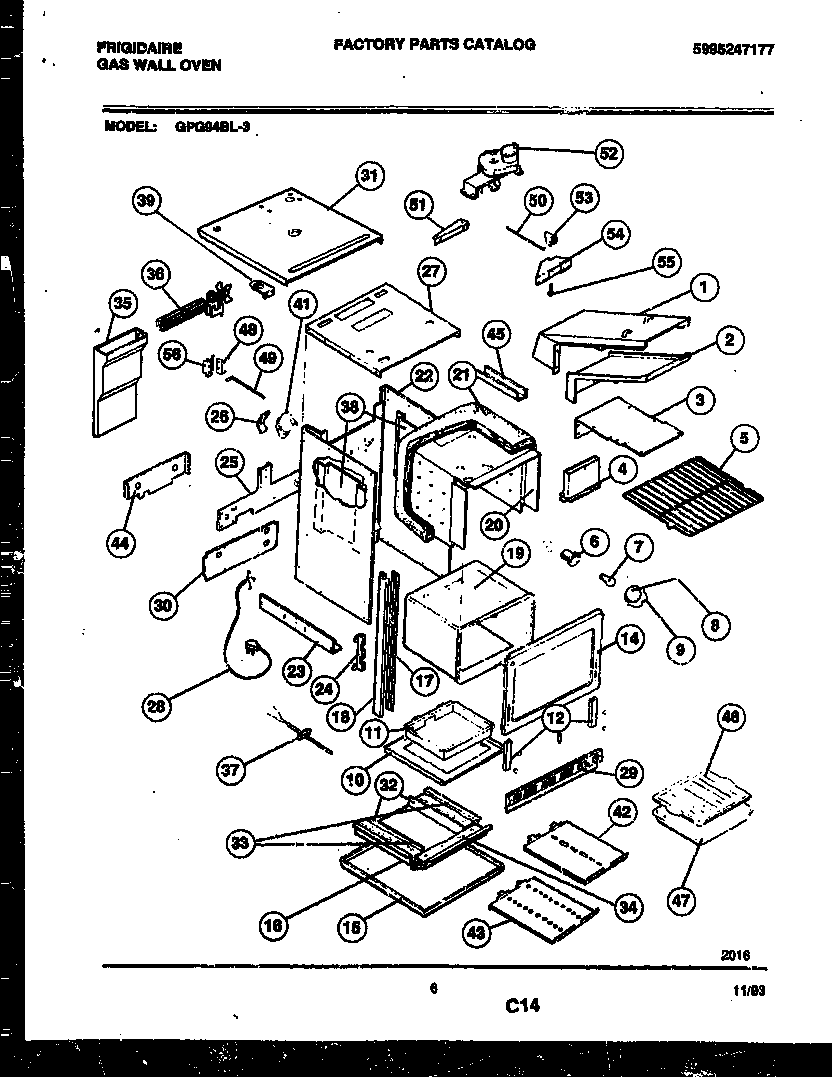

GPG94BL3 06 – BODY PARTS

GPG94BL3 06 – BODY PARTS

Written by

in

GPG94BL3 06 – BODY PARTS

Products

PositionProduct
*89246WCI 3204114
*89246WCI 3019063
1SHIELD-FLUE
2WCI 3203725
3WCI 5303302715
4ADAPTER-FLUE
5WCI 5308299366
6SOCKET-LIGHT/LAMP, OVEN
7316538904 Frigidaire Oven Lamp Light
85304524341 Frigidaire Lens
9WIRE, GLASS RETAINER
10PANEL-OVEN BOTTOM
11WCI 5303280375
12WCI 3203688
14WCI 5303296326
15WCI 3202447
16WCI 5303210706
17TRIM-SIDE, INNER, LH
17ATRIM-SIDE, INNER, RH
18WCI 5303293110
19LINER-OVEN ASSY
20SHIELD-OVEN, TOP & SIDES
21CWCI 5303210708
21AINSULATION, OVEN TOP
21INSULATION, OVEN BACK
21BWCI 5303210709
21DINSULATION, TOP & SIDES
22WRAPPER, BACK & SIDES
23318284201 Frigidaire PANEL
24WCI 3201631
25WCI 5303210721
26WCI 5303301261
27WCI 5303210683
28WCI 3203699
29WCI 5303302717
30COVER-ACCESS
31WRAPPER, TOP
32ANGLE-BURNER BOX
33INSULATION-BOTTOM, SIDES, (2)
34INSULATION-BOTTOM, TOP
35DUCT-BLOWER
36MOTOR-BLOWER
37PROBE-OVEN TEMP
38SHIELD-BODYSIDE
39WCI 5303302718
41SWITCH-THERMO
42SHIELD-INSULATION
43SHIELD-HEAT, LOWER
44WCI 5303302719
45SHIELD-INSULATION
46BROILER GRILL
47BROILER PAN
48WCI 3202384
49WCI 3202077
50WCI 3016241
51BRACKET-MOTOR MTG
52WCI 5303269766
53LATCH-DOOR
54HOUSING-DOOR LATCH
55CWCI 3019069
55BINSULATION, OVEN BOTTOM
55AWCI 3201632
55DSHIELD, BURNER BOX
55AXLE – HINGE (2)
56SWITCH – OVEN LIGHT
