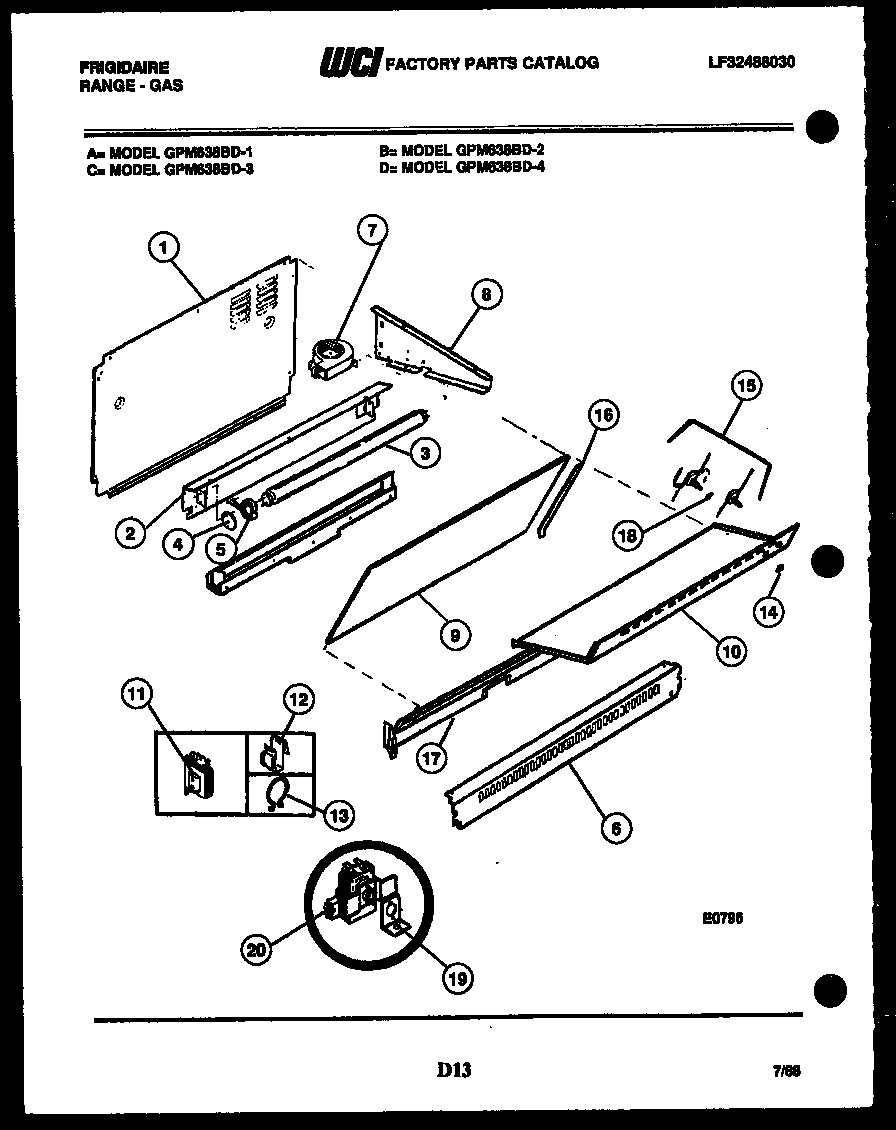

GPM638BDL2 02 – SPLASHER CONTROL

Products

PositionProduct
1WCI 08067729
2REFLECTOR-WORK LAMP
3WCI 08067739
4INSULATOR-FLUOR LIGHT RECEPTACLE (2)
5WCI 08010388
6WCI 08067930
7BLOWER MTR ASSY.
8AWCI 08067737
8WCI 08067830
9GLASS-SPLASHER O/U
10WCI 08012849
11WCI 08067730
12FSTNR., CABLE CLAMP
13WCI 08008992
14WCI 08067927
15HARNS-O/U LITE SW.
16AWCI 08010549
16WCI 08010548
17TRIM-O/U SPL. G. FILLER
18WASHER, SPRING (2)
19ANGLE SUPT S/C THERMO.
20WCI 08067928
